CX14 Case excavator specs & dimensions (2005 - 2025)

Case CX14 is a mini excavator manufactured since 2005. It has a weight of 1.47 tons and a track width of 230 mm. The transport dim…

Case CX14 is a mini excavator manufactured since 2005. It has a weight of 1.47 tons and a track width of 230 mm. The transport dimensions are 3.34 meters in length, 1.2 meters in width, and 3.2 meters in height. The machine features a tear-out force of 11 kN, a dredging depth of 2.11 meters, and a maximum horizontal reach of 3.68 meters. The bucket width is 0.4 meters, with a capacity ranging from 0.02 to 0.04 cubic meters. Special equipment includes a blade and rubber tracks.

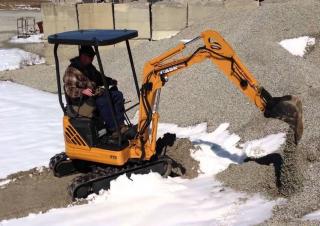

Mini Excavators Case CX14

Technical specs - CX14 Case

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
1.47 t
Transport length
3.34 m
Transport width
1.2 m
Transport height
3.2 m
Bucket capacity
0.04 m³
Bucket capacity min.
0.02 m³
Bucket capacity max.
0.04 m³
Bucket width
0.4 m
Track width
230 mm
Driver protection
FD
Max. Reach horizontal
3.68 m
Dredging depth
2.11 m
Tear-out force
11 kN
Engine manuf.
Yanmar
Engine type
3TNE68
Engine power
9 kW
Displacement
0.78 l
No. of cylinders
3

More technical details, like: standard tyres, model series, dimension lxwxh, revolutions at max torque, max. torque, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model with standard bucket

Special equipment

Track adjustment
No
Rubber track
Yes
Blade
Yes
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Case CX14 FAQ

When was the Case CX14 manufactured?

The Case CX14 was first produced in 2005.

How much does the Case CX14 mini excavator weigh?

The Case CX14 mini excavator weighs 1.47 tons.

What are the transport dimensions of the Case CX14 mini excavator?

The Case CX14 mini excavator has a transport length of 3.34 meters, a transport width of 1.2 meters, and a transport height of 3.2 meters.

What is the track width of the Case CX14 mini excavator?

The Case CX14 mini excavator has a track width of 230 mm.

What is the excavation performance of the Case CX14 mini excavator?

The Case CX14 mini excavator has a dredging depth of 2.11 meters and a maximum horizontal reach of 3.68 meters.

What is the tear-out force of the Case CX14 mini excavator?

The Case CX14 mini excavator has a tear-out force of 11 kN.

What are the specifications of the primary work tool bucket on the Case CX14 mini excavator?

The Case CX14 mini excavator has a bucket with a capacity ranging from 0.02 to 0.04 cubic meters and a bucket width of 0.4 meters.

What operator safety and support features does the Case CX14 mini excavator have?

The Case CX14 mini excavator features a canopy for driver protection.

How much is a Case CX14 Mini excavator (2005u20132025) worth?

The residual value of the Case CX14 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.

Case CX14 overview

Engine / Driveline and transmission

ENGINE
Yanmar 3TNE68 diesel Federal emission certified 4 Cycle Water cooled Direct injection One touch decelerator Engine access under rear hood Dry type air cleaner with lock indicator Glow plug starting aid

Hydraulics

OPERATOR'S COMPARTMENT
ROPS/FOPS four-post canopy controls: Pilot operated hand controls and foot pedals Control pattern selector valve (ISO & tractor loader backhoe) indicator includes: Engine oil pressure, water temperature light, air filter lamp, water separator detection lamp, low fuel warning lamps, battery charging lights, glow candle display illuminant, water temperature gauge and hour meter Adjustable seat with seat belt Arm rests
Width
8 in (203 mm) 12 in (305 mm) 16 in (406 mm) Swing boom (80 left/50 right) Hydraulic backfill blade

Tyres / Tracks

Rubber tracks 2-speed travel Fully hydrostatic drive system Sealed and lubricated track rollers Track tension adjustment (cereal type) Disc type Parking brake (auto release and deceleration

Dimensions and weight

Pumps (2)displacement axial piston pump
Capacity –
Maximum2 x 3.9 gpm (2 x 14.76 L/min)
System relief pressure Standard– 2988 psi (20.60 MPa)
Pilot control hydraulic system –
Pump (1)Gear pump
Maximum capacity1.59 gpm (6 L/min)
Relief pressure500 psi (3.4 MPa)
Control valves —
9 function multiple control valve
Pump #1 for right travel boom center swing and bucket function"
Pump #2 for left travel house swing and arm function"
Pump #3 for pilot valve
Swing –
Motor (1)Fixed displacement axial piston design
Speed0-10.7 rpm
BrakeSpring applied hydraulically released with dual cushion relief"
Tail swing radius Tail swing overhang1 ft 11 in (589 mm) 0 ft 0 in (0 mm)
Travel –
Motor (2) Final driveTwo-speed axial piston design Planetary gear reduction
Travel Speeds –

Tables

FuelDiesel
Fuel filterFull flow
CoolingLiquid
Load (Lift Point)2.5 ft (0.8 m)5 ft (1.5 m)7.5 ft (2.3 m)10 ft (3.0 m)
HeightENDSIDEENDSIDEENDSIDEENDSIDE
+10 ft (3.0 m)
+7.5 ft500 lb*500 lb*
(2.3 m)(227 kg)(227 kg)
+5 ft610 lb*600 lb570 lb360 lb
(1.52 m)(277 kg)(272 kg)(259 kg)(163 kg)
+2.5 ft,,,"1,740 lb1,070 lb",870 lb,560 lb,640 lb,340 lb
(0.8 m)(789 kg)(486 kg)(395 kg)(254 kg)(290 kg)(154 kg)
Ground,"1,130 lb*1,130 lb*2,150 lb",990 lb,"1,050 lb",520 lb,880 lb,330 lb
Level(512 kg)(512 kg)(975 kg)(449 kg)(476 kg)(236 kg)(399 kg)(150 kg)
-2.5 ft,"1,860 lb*1,860 lb*1,870 lb1,000 lb1,000 lb",510 lb,,
(-0.8 m)(844 kg)(844 kg)(848 kg)(454 kg)(454 kg)(231kg)
-5 ft,,,"1,040 lb*1,030 lb",,,,
(-1.52 m)(471 kg)(467 kg)
A. Overall height7 ft 3 in (2.20 m)
B. Overall length11 ft 0 in (3.34 m)
C. Width of upperstructure2 ft 11 in (0.89 m)
D. Track overall length5 ft 2 in (1.56 m)
E. Track overall width w/9.1 in (230 mm) shoes – retracted2 ft 11 in (0.89 m)
F. Track overall width w/9.1 in (230 mm) shoes – expanded3 ft 11 in (1.20 m)
G. Track shoe width9.1 in (230 mm)
H. Center to center (idler to sprocket)4 ft 0 in (1.21 m)
J. Upperstructure ground clearance1 ft 5 in (430 mm)
K. Minimum ground clearance6.9 in (175 mm)
L. Tail swing radius1 ft 11 in (590 mm)
M. Backfill blade height9.8 in (250 mm)
Working weight3240 lb (1469.6 kg)"
Ground pressure3.1 psi (21.4 kPa)
Tail swing overhang0 ft 0 in (0 m)
