CX 22 B ZTS Case excavator specs & dimensions (2005 - 2012)

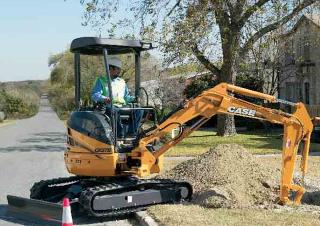

Case CX 22 B ZTS is a mini excavator manufactured from 2005 to 2012, with a weight of 2.42 tons. It features a track width of 250 …

Case CX 22 B ZTS is a mini excavator manufactured from 2005 to 2012, with a weight of 2.42 tons. It features a track width of 250 mm, a transport length of 3.82 meters, a transport width of 1.4 meters, and a transport height of 2.46 meters. The machine has a tear-out force of 14 kN and a maximum bucket capacity of 0.35 cubic meters. Special equipment includes a blade and rubber tracks.

Mini Excavators Case CX 22 B ZTS

Technical specs - CX 22 B ZTS Case

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
2.42 t
Transport length
3.82 m
Transport width
1.4 m
Transport height
2.46 m
Bucket capacity max.
0.35 m³
Track width
250 mm
Driver protection
Kb
Max. Reach horizontal
3.66 m
Dredging depth
2.3 m
Tear-out force
14 kN
Model series
B
Engine manuf.
Yanmar
Engine type
3TNV82A-SYB
Engine power
17 kW
Displacement
1.33 l
Revolutions at max torque
2200 rpm

More technical details, like: bucket capacity, bucket capacity min., bucket width, standard tyres, dimension lxwxh, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model with standard bucket

Special equipment

Track adjustment
No
Rubber track
Yes
Blade
Yes
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Case CX 22 B ZTS FAQ

When was the Case CX 22 B ZTS manufactured?

The Case CX 22 B ZTS was manufactured from 2005 to 2012.

How much does the Case CX 22 B ZTS weigh?

The Case CX 22 B ZTS weighs 2.42 tons.

What are the transport dimensions of the Case CX 22 B ZTS mini excavator?

The Case CX 22 B ZTS has a transport length of 3.82 meters, a transport width of 1.4 meters, and a transport height of 2.46 meters.

What is the track width of the Case CX 22 B ZTS mini excavator?

The Case CX 22 B ZTS mini excavator has a track width of 250 mm.

What is the excavation performance of the Case CX 22 B ZTS mini excavator?

The Case CX 22 B ZTS mini excavator has a dredging depth of 2.3 meters and a maximum horizontal reach of 3.66 meters.

What is the tear-out force of the Case CX 22 B ZTS mini excavator?

The Case CX 22 B ZTS mini excavator has a tear-out force of 14 kN.

What is the maximum bucket capacity of the Case CX 22 B ZTS mini excavator?

The maximum bucket capacity of the Case CX 22 B ZTS mini excavator is 0.35 cubic meters.

What driver protection features does the Case CX 22 B ZTS have?

The Case CX 22 B ZTS has a cabin for driver protection.
