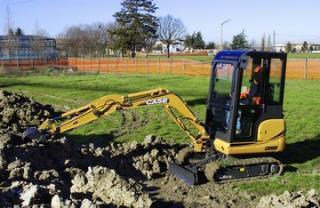

CX 18 B Case excavator specs & dimensions (2004 - 2008)

Case CX 18 B is a mini excavator manufactured from 2004 to 2008. It has a weight of 1.7 tons and a track width of 230 mm. The tran…

Case CX 18 B is a mini excavator manufactured from 2004 to 2008. It has a weight of 1.7 tons and a track width of 230 mm. The transport dimensions are 3.55 meters in length, 1.3 meters in width, and 2.34 meters in height. The tear-out force is 8 kN, and it features a bucket width of 0.4 meters with a maximum bucket capacity of 0.04 cubic meters. Special equipment includes a blade and rubber tracks.

Mini Excavators Case CX 18 B

Technical specs - CX 18 B Case

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
1.7 t
Transport length
3.55 m
Transport width
1.3 m
Transport height
2.34 m
Bucket capacity max.
0.04 m³
Bucket width
0.4 m
Track width
230 mm
Driver protection
Kb
Max. Reach horizontal
3.65 m
Dredging depth
2.38 m
Tear-out force
8 kN
Model series
B
Engine manuf.
Yanmar
Engine type
3TNE74N
Engine power
11 kW
Displacement
1.01 l
Revolutions at max torque
2000 rpm

More technical details, like: bucket capacity, bucket capacity min., standard tyres, dimension lxwxh, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model with standard bucket

Special equipment

Track adjustment
No
Rubber track
Yes
Blade
Yes
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Case CX 18 B FAQ

When was the Case CX 18 B manufactured?

The Case CX 18 B was manufactured from 2004 to 2008.

How much does the Case CX 18 B mini excavator weigh?

The Case CX 18 B mini excavator weighs 1.7 tons.

What are the transport dimensions of the Case CX 18 B mini excavator?

The Case CX 18 B has a transport length of 3.55 meters, a transport width of 1.3 meters, and a transport height of 2.34 meters.

What is the track width of the Case CX 18 B mini excavator's undercarriage?

The Case CX 18 B mini excavator has a track width of 230 mm.

What are the excavation performance specifications of the Case CX 18 B mini excavator?

The Case CX 18 B mini excavator has a dredging depth of 2.38 meters and a maximum horizontal reach of 3.65 meters.

What is the tear-out force of the Case CX 18 B mini excavator?

The Case CX 18 B mini excavator has a tear-out force of 8 kN.

What are the bucket specifications of the Case CX 18 B mini excavator?

The Case CX 18 B mini excavator has a maximum bucket capacity of 0.04 cubic meters and a bucket width of 0.4 meters.

What operator safety and support features does the Case CX 18 B have?

The Case CX 18 B has a cabin for driver protection.

How much is a Case CX 18 B Mini excavator (2004u20132008) worth?

The residual value of the Case CX 18 B depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
