CX 16 Case excavator specs & dimensions (2002 - 2004)

Model rating
8,33 / 10

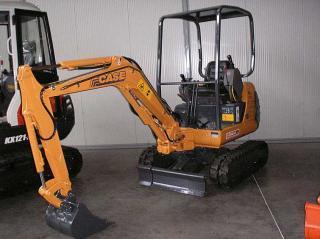

Case CX 16 is a mini excavator manufactured from 2002 to 2004. It has a weight of 1.6 tons and a track width of 230 mm. The transp…

Case CX 16 is a mini excavator manufactured from 2002 to 2004. It has a weight of 1.6 tons and a track width of 230 mm. The transport dimensions are 3.7 meters in length, 1.31 meters in width, and 2.28 meters in height. The bucket width is 0.45 meters with a maximum bucket capacity of 0.04 cubic meters. This model includes special equipment for track adjustment.

Mini Excavators Case CX 16

Technical specs - CX 16 Case

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
1.6 t
Transport length
3.7 m
Transport width
1.31 m
Transport height
2.28 m
Bucket capacity max.
0.04 m³
Bucket width
0.45 m
Track width
230 mm
Driver protection
Kb
Max. Reach horizontal
3.55 m
Dredging depth
2.16 m
Tear-out force
8.7 kN
Engine manuf.
Perkins
Engine type
103-10
Engine power
14 kW
Displacement
1 l
Revolutions at max torque
2300 rpm

More technical details, like: bucket capacity, bucket capacity min., standard tyres, model series, dimension lxwxh, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model with standard bucket

Special equipment

Track adjustment
Yes
Rubber track
No
Blade
No
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Case CX 16 FAQ

When was the Case CX 16 manufactured?

The Case CX 16 was manufactured from 2002 to 2004.

How much does the Case CX 16 mini excavator weigh?

The Case CX 16 mini excavator weighs 1.6 tons.

What are the transport dimensions of the Case CX 16 mini excavator?

The Case CX 16 mini excavator has a transport length of 3.7 meters, a transport width of 1.31 meters, and a transport height of 2.28 meters.

What is the track width of the Case CX 16 mini excavator?

The Case CX 16 mini excavator has a track width of 230 mm.

What are the excavation performance specifications of the Case CX 16 mini excavator?

The Case CX 16 mini excavator has a dredging depth of 2.16 meters and a maximum horizontal reach of 3.55 meters.

What is the tear-out force of the Case CX 16 mini excavator?

The Case CX 16 mini excavator has a tear-out force of 8.7 kN.

What are the specifications of the primary work tool on the Case CX 16 mini excavator?

The primary work tool of the Case CX 16 mini excavator has a maximum bucket capacity of 0.04 cubic meters and a bucket width of 0.45 meters.

What is the driver protection feature of the Case CX 16?

The Case CX 16 has a cabin for driver protection.

How much is a Case CX 16 Mini excavator (2002u20132004) worth?

The residual value of the Case CX 16 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
