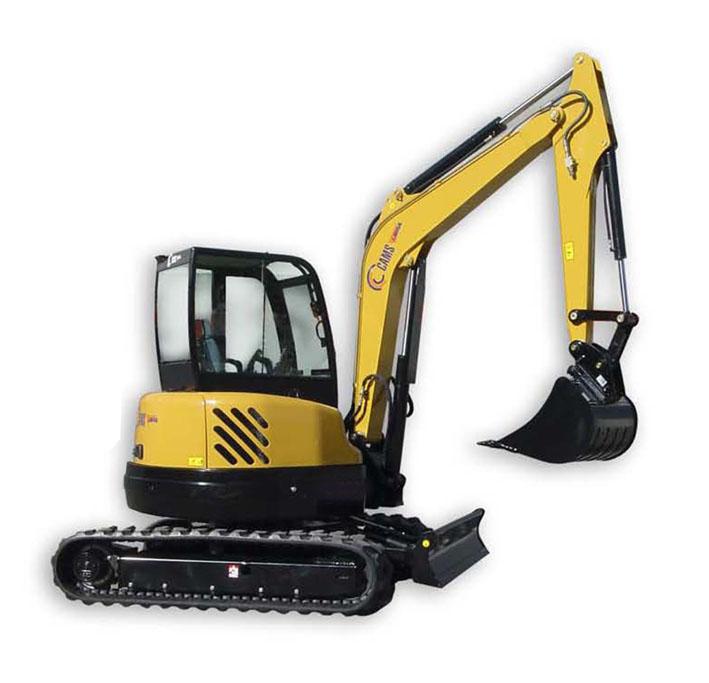

CZ42 Cams excavator specs & dimensions (2007 - 2020)

Cams CZ42 is a mini excavator manufactured from 2007 to 2020. It has a weight of 4.2 tons and a track width of 400 mm. The transpo…

Cams CZ42 is a mini excavator manufactured from 2007 to 2020. It has a weight of 4.2 tons and a track width of 400 mm. The transport dimensions are 3.2 meters in length, 1.96 meters in width, and 2.56 meters in height. The bucket width is 0.6 meters with a capacity of 0.18 cubic meters. Special equipment includes a blade and rubber track.

Mini Excavators Cams CZ42

Technical specs - CZ42 Cams

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
4.2 t
Transport length
3.2 m
Transport width
1.96 m
Transport height
2.56 m
Bucket capacity
0.18 m³
Bucket width
0.6 m
Track width
400 mm
Driver protection
Kb
Max. Reach horizontal
5.66 m
Dredging depth
3.21 m
Tear-out force
37.3 kN
Model series
CZ
Engine manuf.
Kubota
Engine type
M2403
Engine power
34 kW
Displacement
4 l
Revolutions at max torque
2250 rpm

More technical details, like: bucket capacity min., bucket capacity max., standard tyres, dimension lxwxh, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model with standard bucket

Special equipment

Track adjustment
No
Rubber track
Yes
Blade
Yes
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Cams CZ42 FAQ

When was the Cams CZ42 manufactured?

The Cams CZ42 was manufactured from 2007 to 2020.

How much does the Cams CZ42 mini excavator weigh?

The Cams CZ42 mini excavator weighs 4.2 tons.

What are the transport dimensions of the Cams CZ42 mini excavator?

The Cams CZ42 has a transport length of 3.2 meters, a transport width of 1.96 meters, and a transport height of 2.56 meters.

What is the track width of the undercarriage on the Cams CZ42 mini excavator?

The Cams CZ42 mini excavator has a track width of 400 mm on its undercarriage.

What are the excavation performance specifications of the Cams CZ42 mini excavator?

The Cams CZ42 mini excavator has a dredging depth of 3.21 meters and a maximum horizontal reach of 5.66 meters.

What is the tear-out force of the Cams CZ42 mini excavator?

The Cams CZ42 mini excavator has a tear-out force of 37.3 kN.

What are the bucket specifications of the Cams CZ42 mini excavator?

The Cams CZ42 mini excavator has a bucket capacity of 0.18 cubic meters and a bucket width of 0.6 meters.

What operator safety and support features does the Cams CZ42 have?

The Cams CZ42 provides operator safety with a cabin for driver protection.
