CZ25 Cams excavator specs & dimensions (2013 - 2026)

Cams CZ25 is a mini excavator manufactured since 2013, with a weight of 2.5 t. It features a track width of 300 mm, a transport le…

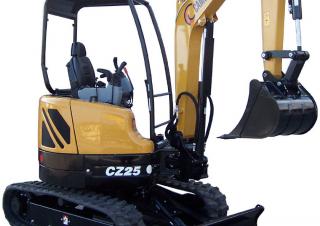

Cams CZ25 is a mini excavator manufactured since 2013, with a weight of 2.5 t. It features a track width of 300 mm, a transport length of 2.97 m, a transport width of 1.47 m, and a transport height of 2.34 m. The machine has a tear-out force of 27 kN, a bucket width of 0.45 m, and a bucket capacity of 0.08 m³. It is equipped with a rubber track.

Mini Excavators Cams CZ25

Technical specs - CZ25 Cams

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
2.5 t
Transport length
2.97 m
Transport width
1.47 m
Transport height
2.34 m
Bucket capacity
0.08 m³
Bucket width
0.45 m
Track width
300 mm
Driver protection
Kb
Max. Reach horizontal
4.56 m
Dredging depth
2.64 m
Tear-out force
27 kN
Model series
CZ
Engine manuf.
Kubota
Engine type
V1305
Engine power
18 kW
Displacement
1.261 l
Revolutions at max torque
2300 rpm
No. of cylinders
3

More technical details, like: bucket capacity min., bucket capacity max., standard tyres, dimension lxwxh, max. torque, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model with standard bucket

Special equipment

Track adjustment
No
Rubber track
Yes
Blade
No
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Cams CZ25 FAQ

When was the Cams CZ25 manufactured?

The Cams CZ25 was first produced in 2013.

How much does the Cams CZ25 mini excavator weigh?

The Cams CZ25 mini excavator weighs 2.5 tons.

What are the transport dimensions of the Cams CZ25 mini excavator?

The Cams CZ25 mini excavator has a transport length of 2.97 meters, a transport width of 1.47 meters, and a transport height of 2.34 meters.

What is the track width of the Cams CZ25 mini excavator?

The Cams CZ25 mini excavator has a track width of 300 mm.

What are the dredging depth and maximum horizontal reach of the Cams CZ25 mini excavator?

The Cams CZ25 mini excavator has a dredging depth of 2.64 meters and a maximum horizontal reach of 4.56 meters.

What is the tear-out force of the Cams CZ25 mini excavator?

The Cams CZ25 mini excavator has a tear-out force of 27 kN.

What are the specifications of the primary work tool bucket on the Cams CZ25 mini excavator?

The primary work tool bucket of the Cams CZ25 has a capacity of 0.08 cubic meters and a width of 0.45 meters.

What operator safety and support features does the Cams CZ25 mini excavator have?

The Cams CZ25 mini excavator provides operator safety with a cabin for driver protection.

How much is a Cams CZ25 Mini excavator (2013u20132025) worth?

The residual value of the Cams CZ25 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
