234S Cams excavator specs & dimensions (2024 - 2026)

Weight: 3.3t – Transport length: 3.1m – Transport width: 1.47m – Transport height: 2.345m – Track width: 300mm – Driver protection…

Weight: 3.3t – Transport length: 3.1m – Transport width: 1.47m – Transport height: 2.345m – Track width: 300mm – Driver protection: FD

Check out detailed specifications, information and technical data for Cams 234S excavator manufactured between 2024 - 2026. Get more in-depth insight with Cams 234S digger specifications. See information, like: Weight: 3.3t – Transport length: 3.1m – Transport width: 1.47m – Transport height: 2.345m – Track width: 300mm – Driver protection: FD and more.

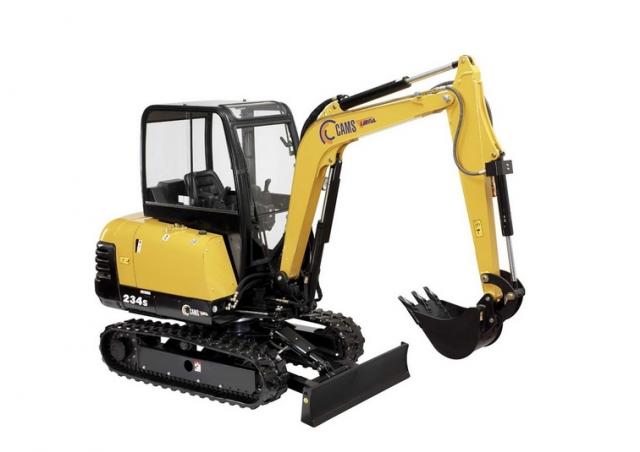

Mini Excavators Cams 234S

Technical specs - 234S Cams

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
3.3 t
Transport length
3.1 m
Transport width
1.47 m
Transport height
2.345 m
Track width
300 mm
Driver protection
FD
Max. Reach horizontal
4.96 m
Dredging depth
3.1 m
Engine manuf.
Kubota
Engine type
k.A.
Engine power
24 kW
Displacement
1.647 l
Revolutions at max torque
2350 rpm
No. of cylinders
3
Emission level
V

More technical details, like: bucket capacity, bucket capacity min., bucket capacity max., bucket width, standard tyres, tear-out force, model series, dimension lxwxh, max. torque, cylinder bore x stroke are available in the full technical specs.

Basic model with standard bucket

Special equipment

Track adjustment
No
Rubber track
Yes
Blade
Yes
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Cams 234S FAQ

When was the Cams 234S manufactured?

The Cams 234S was first produced in 2024.

How much does the Cams 234S mini excavator weigh?

The Cams 234S mini excavator weighs 3.3 tons.

What are the transport dimensions of the Cams 234S mini excavator?

The Cams 234S mini excavator has a transport length of 3.1 meters, a transport width of 1.47 meters, and a transport height of 2.345 meters.

What is the track width of the Cams 234S mini excavator?

The Cams 234S mini excavator has a track width of 300 mm.

What are the excavation performance specifications of the Cams 234S mini excavator?

The Cams 234S mini excavator has a dredging depth of 3.1 meters and a maximum horizontal reach of 4.96 meters.

What operator safety feature does the Cams 234S mini excavator have?

The Cams 234S mini excavator is equipped with a canopy for driver protection.
