224S Cams excavator specs & dimensions (2024 - 2026)

Weight: 1.8t – Transport length: 1.97m – Transport width: 1.47m – Transport height: 2.345m – Track width: 300mm – Driver protectio…

Weight: 1.8t – Transport length: 1.97m – Transport width: 1.47m – Transport height: 2.345m – Track width: 300mm – Driver protection: FD

Check out detailed specifications, information and technical data for Cams 224S excavator manufactured between 2024 - 2026. Get more in-depth insight with Cams 224S digger specifications. See information, like: Weight: 1.8t – Transport length: 1.97m – Transport width: 1.47m – Transport height: 2.345m – Track width: 300mm – Driver protection: FD and more.

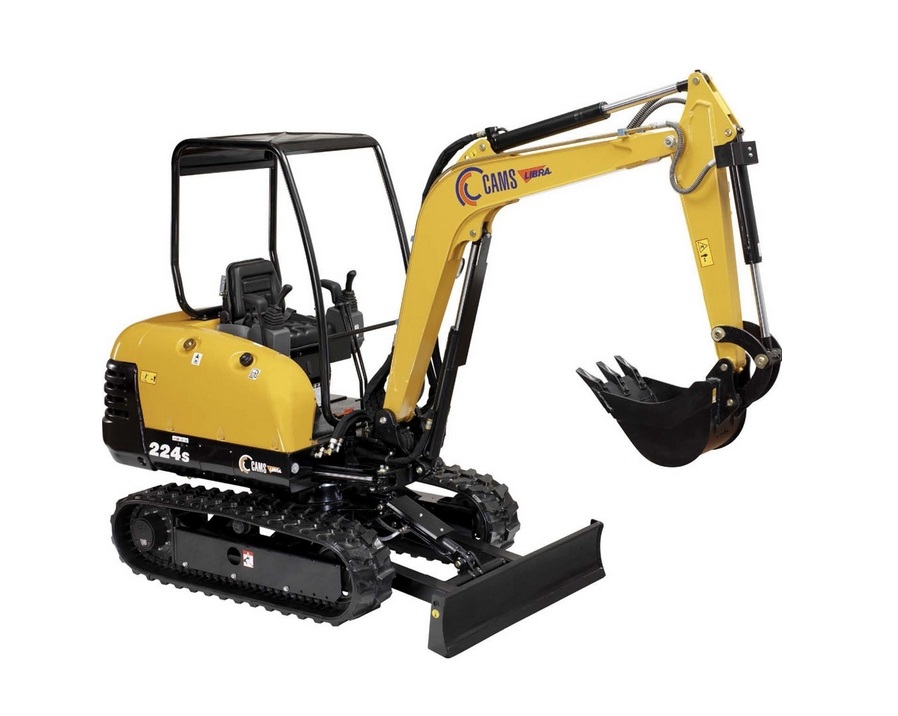

Mini Excavators Cams 224S

Technical specs - 224S Cams

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
1.8 t
Transport length
1.97 m
Transport width
1.47 m
Transport height
2.345 m
Track width
300 mm
Driver protection
FD
Max. Reach horizontal
4.529 m
Dredging depth
2.55 m
Engine manuf.
Kubota
Engine type
k.A.
Engine power
21 kW
Displacement
1.499 l
Revolutions at max torque
2100 rpm
No. of cylinders
3
Emission level
V

More technical details, like: bucket capacity, bucket capacity min., bucket capacity max., bucket width, standard tyres, tear-out force, model series, dimension lxwxh, max. torque, cylinder bore x stroke are available in the full technical specs.

Basic model with standard bucket

Special equipment

Track adjustment
No
Rubber track
Yes
Blade
Yes
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Cams 224S FAQ

When was the Cams 224S manufactured?

The Cams 224S was first produced in 2024.

How much does the Cams 224S mini excavator weigh?

The Cams 224S mini excavator weighs 1.8 tons.

What are the transport dimensions of the Cams 224S mini excavator?

The Cams 224S has a transport length of 1.97 meters, a transport width of 1.47 meters, and a transport height of 2.345 meters.

What is the track width of the Cams 224S mini excavator?

The Cams 224S mini excavator has a track width of 300 mm.

What are the excavation performance specifications of the Cams 224S mini excavator?

The Cams 224S mini excavator has a dredging depth of 2.55 meters and a maximum horizontal reach of 4.529 meters.

What operator safety and support features does the Cams 224S mini excavator have?

The Cams 224S mini excavator is equipped with a canopy for driver protection.
