224S Cams excavator specs & dimensions (2004 - 2021)

Cams 224S is a mini excavator manufactured from 2004 to 2021, with a weight of 2.52 tons. It has a transport length of 2.97 meters…

Cams 224S is a mini excavator manufactured from 2004 to 2021, with a weight of 2.52 tons. It has a transport length of 2.97 meters, a transport width of 1.47 meters, and a transport height of 2.34 meters. The bucket width is 0.45 meters, and the bucket capacity is 0.08 cubic meters. Special equipment includes a blade and rubber track.

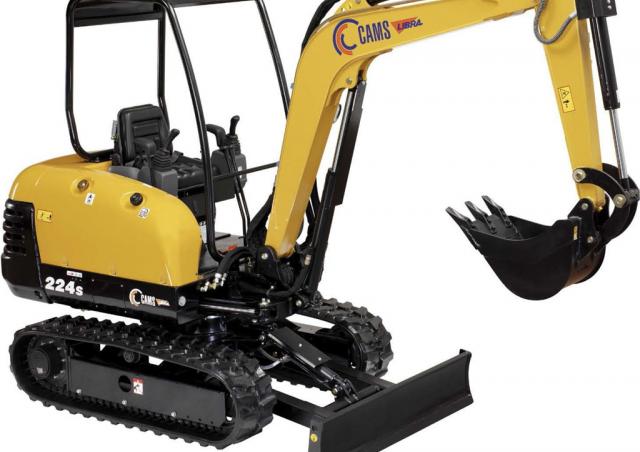

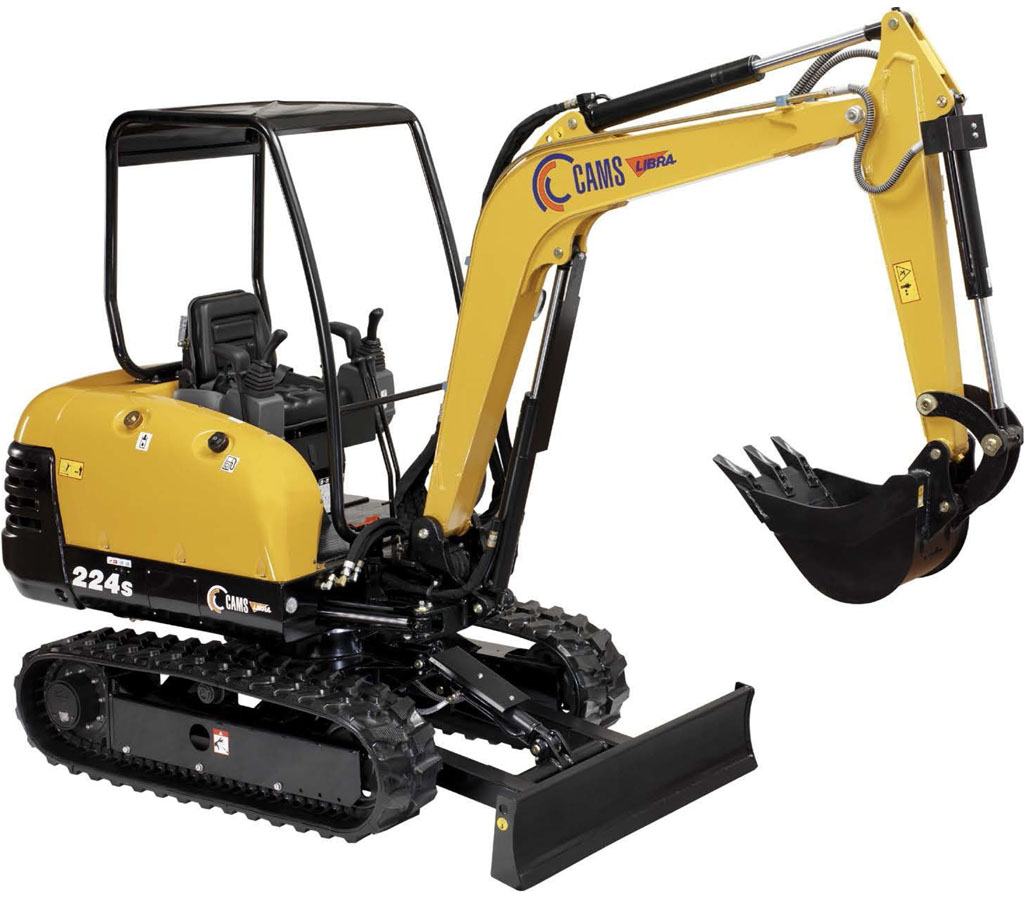

Mini Excavators Cams 224S

Technical specs - 224S Cams

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
2.52 t
Transport length
2.97 m
Transport width
1.47 m
Transport height
2.34 m
Bucket capacity
0.08 m³
Bucket width
0.45 m
Track width
300 mm
Driver protection
Kb
Max. Reach horizontal
4.53 m
Dredging depth
2.55 m
Tear-out force
21 kN
Engine manuf.
Kubota
Engine type
V1305
Engine power
21 kW
Displacement
1.499 l
Revolutions at max torque
2100 rpm
No. of cylinders
3

More technical details, like: bucket capacity min., bucket capacity max., standard tyres, model series, dimension lxwxh, max. torque, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model with standard bucket

Special equipment

Track adjustment
No
Rubber track
Yes
Blade
Yes
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Cams 224S FAQ

When was the Cams 224S manufactured?

The Cams 224S was manufactured from 2004 to 2021.

How much does the Cams 224S mini excavator weigh?

The Cams 224S mini excavator weighs 2.52 tons.

What are the transport dimensions of the Cams 224S mini excavator?

The Cams 224S mini excavator has a transport length of 2.97 meters, a transport width of 1.47 meters, and a transport height of 2.34 meters.

What is the track width of the Cams 224S mini excavator's undercarriage?

The Cams 224S mini excavator has a track width of 300 mm.

What are the excavation performance specifications of the Cams 224S mini excavator?

The Cams 224S mini excavator has a dredging depth of 2.55 meters and a maximum horizontal reach of 4.53 meters.

What are the power ratings of the Cams 224S mini excavator?

There is no power rating data available for the Cams 224S mini excavator in the provided information.

What are the bucket specifications of the Cams 224S mini excavator?

The Cams 224S mini excavator has a bucket capacity of 0.08 cubic meters and a bucket width of 0.45 meters.

What operator safety features does the Cams 224S mini excavator have?

The Cams 224S mini excavator has a cabin for driver protection.

How much is a Cams 224S Mini excavator (2004u20132021) worth?

The residual value of the Cams 224S depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
