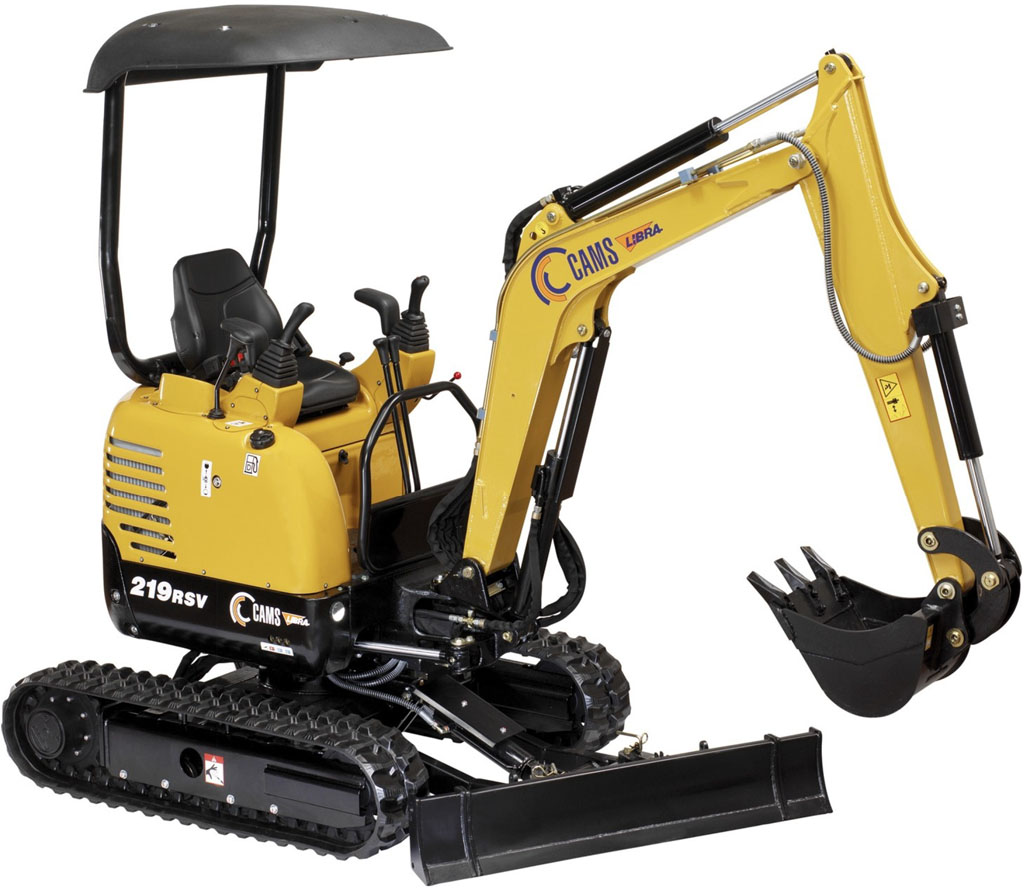

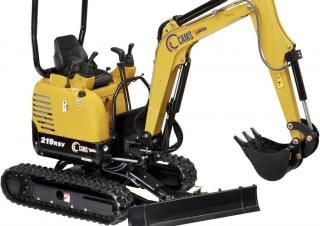

219 rsv Cams excavator specs & dimensions (2004 - 2013)

Cams 219 rsv is a mini excavator manufactured from 2004 to 2013, with a weight of 1.9 tons. It has a transport length of 2.245 met…

Cams 219 rsv is a mini excavator manufactured from 2004 to 2013, with a weight of 1.9 tons. It has a transport length of 2.245 meters, a transport width of 1 meter, and a transport height of 2.365 meters. The bucket width is 0.4 meters, and the bucket capacity is 0.06 cubic meters. Special equipment includes a blade and rubber track.

Mini Excavators Cams 219 rsv

Technical specs - 219 rsv Cams

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
1.9 t
Transport length
2.245 m
Transport width
1 m
Transport height
2.365 m
Bucket capacity
0.06 m³
Bucket width
0.4 m
Track width
1300 mm
Standard tyres
230
Driver protection
Kb
Max. Reach horizontal
3.92 m
Dredging depth
2.39 m
Tear-out force
15 kN
Engine manuf.
Kubota
Engine type
D722
Engine power
10.5 kW
Displacement
3 l
Revolutions at max torque
2500 rpm

More technical details, like: bucket capacity min., bucket capacity max., model series, dimension lxwxh, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model with standard bucket

Special equipment

Track adjustment
No
Rubber track
Yes
Blade
Yes
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Cams 219 rsv FAQ

When was the Cams 219 rsv manufactured?

The Cams 219 rsv was manufactured from 2004 to 2013.

How much does the Cams 219 rsv weigh?

The Cams 219 rsv weighs 1.9 tons.

What are the transport dimensions of the Cams 219 rsv mini excavator?

The Cams 219 rsv mini excavator has a transport length of 2.25 meters, a transport width of 1 meter, and a transport height of 2.37 meters.

What are the undercarriage specifications of the Cams 219 rsv mini excavator?

The Cams 219 rsv mini excavator has standard tyres with a size of 230 and a track width of 1300 mm.

What are the dredging depth and maximum horizontal reach of the Cams 219 rsv mini excavator?

The Cams 219 rsv mini excavator has a dredging depth of 2.39 meters and a maximum horizontal reach of 3.92 meters.

What is the tear-out force of the Cams 219 rsv mini excavator?

The Cams 219 rsv mini excavator has a tear-out force of 15 kN.

What are the bucket specifications of the Cams 219 rsv mini excavator?

The Cams 219 rsv mini excavator has a bucket capacity of 0.06 cubic meters and a bucket width of 0.4 meters.

What operator safety features does the Cams 219 rsv have?

The Cams 219 rsv has driver protection in the form of a cabin.

How much is a Cams 219 rsv Mini excavator (2004u20132013) worth?

The residual value of the Cams 219 rsv depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
