219 rsv Cams excavator specs & dimensions (2004 - 2019)

Cams 219 rsv is a mini excavator manufactured from 2004 to 2019, with a weight of 1.8 tons. It has a transport length of 2.245 met…

Cams 219 rsv is a mini excavator manufactured from 2004 to 2019, with a weight of 1.8 tons. It has a transport length of 2.245 meters, a transport width of 1 meter, and a transport height of 2.365 meters. The dredging depth is 2.29 meters, and the bucket width is 0.4 meters with a bucket capacity of 0.06 cubic meters. Special equipment includes a blade, rubber track, and track adjustment.

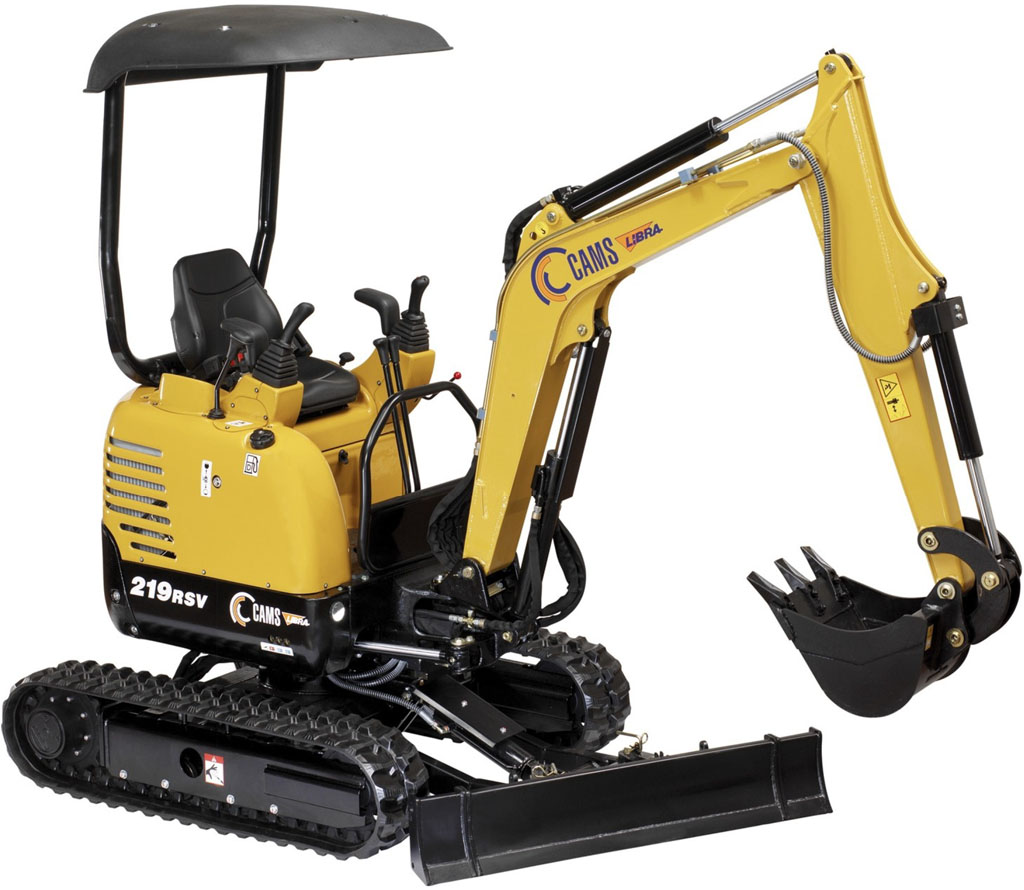

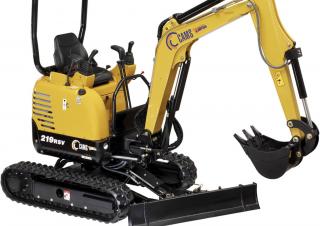

Mini Excavators Cams 219 rsv
Mini Excavators Cams 219 rsv
Mini Excavators Cams 219 rsv
Mini Excavators Cams 219 rsv

Technical specs - 219 rsv Cams

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
1.8 t
Transport length
2.245 m
Transport width
1 m
Transport height
2.365 m
Bucket capacity
0.06 m³
Bucket width
0.4 m
Track width
230 mm
Driver protection
FD
Max. Reach horizontal
3.92 m
Dredging depth
2.29 m
Tear-out force
15 kN
Engine manuf.
Kubota
Engine type
D722
Engine power
10.5 kW
Displacement
3 l
Revolutions at max torque
2500 rpm

More technical details, like: bucket capacity min., bucket capacity max., standard tyres, model series, dimension lxwxh, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model with standard bucket

Special equipment

Track adjustment
Yes
Rubber track
Yes
Blade
Yes
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Cams 219 rsv FAQ

When was the Cams 219 rsv manufactured?

The Cams 219 rsv was manufactured from 2004 to 2019.

How much does the Cams 219 rsv weigh?

The Cams 219 rsv weighs 1.8 tons.

What are the transport dimensions of the Cams 219 rsv mini excavator?

The Cams 219 rsv has a transport length of 2.25 meters, a transport width of 1 meter, and a transport height of 2.37 meters.

What is the track width of the Cams 219 rsv mini excavator?

The Cams 219 rsv mini excavator has a track width of 230 mm.

What is the excavation performance of the Cams 219 rsv mini excavator?

The Cams 219 rsv mini excavator has a dredging depth of 2.29 meters and a maximum horizontal reach of 3.92 meters.

What is the tear-out force of the Cams 219 rsv mini excavator?

The Cams 219 rsv mini excavator has a tear-out force of 15 kN.

What are the specifications of the primary work tool bucket on the Cams 219 rsv mini excavator?

The primary work tool bucket of the Cams 219 rsv has a capacity of 0.06 cubic meters and a width of 0.4 meters.

What operator safety and support features does the Cams 219 rsv have?

The Cams 219 rsv is equipped with a canopy for driver protection.

How much is a Cams 219 rsv Mini excavator (2004u20132019) worth?

The residual value of the Cams 219 rsv depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
