216 Cams excavator specs & dimensions (2021 - 2026)

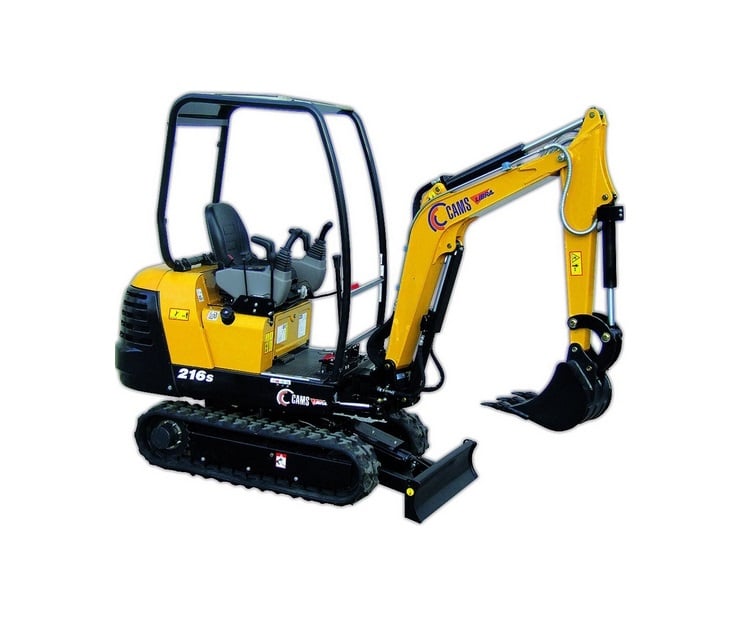

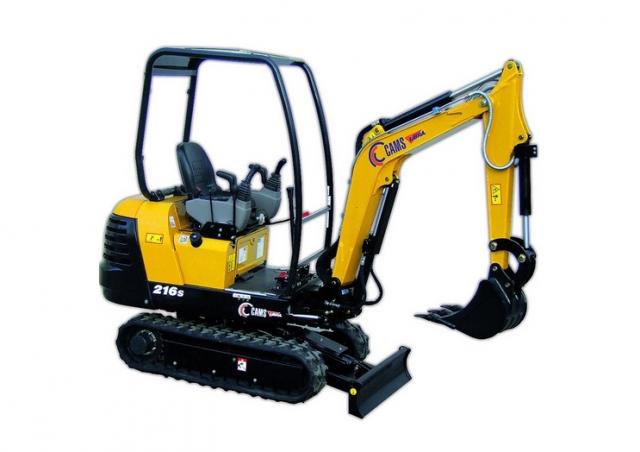

Cams 216 is a mini excavator manufactured since 2021, with a weight of 1.55 tons. It features a track width of 230 mm, a transport…

Cams 216 is a mini excavator manufactured since 2021, with a weight of 1.55 tons. It features a track width of 230 mm, a transport length of 2.575 meters, a transport width of 1 meter, and a transport height of 2.21 meters. The machine has a tear-out force of 15 kN, a bucket width of 0.4 meters, and a bucket capacity of 0.06 cubic meters. It is equipped with a blade and rubber tracks.

Mini Excavators Cams 216

Technical specs - 216 Cams

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
1.55 t
Transport length
2.575 m
Transport width
1 m
Transport height
2.21 m
Bucket capacity
0.06 m³
Bucket width
0.4 m
Track width
230 mm
Driver protection
FD
Max. Reach horizontal
3.73 m
Dredging depth
2.15 m
Tear-out force
15 kN
Engine manuf.
Kubota
Engine type
D902-E4B
Engine power
12.5 kW
Displacement
0.898 l
Revolutions at max torque
2200 rpm
No. of cylinders
3
Emission level
V

More technical details, like: bucket capacity min., bucket capacity max., standard tyres, model series, dimension lxwxh, max. torque, cylinder bore x stroke are available in the full technical specs.

Basic model with standard bucket

Special equipment

Track adjustment
No
Rubber track
Yes
Blade
Yes
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Cams 216 FAQ

When was the Cams 216 manufactured?

The Cams 216 was first produced in 2021.

How much does the Cams 216 mini excavator weigh?

The Cams 216 mini excavator weighs 1.55 tons.

What are the transport dimensions of the Cams 216 mini excavator?

The Cams 216 mini excavator has a transport length of 2.58 meters, a transport width of 1 meter, and a transport height of 2.21 meters.

What is the track width of the Cams 216 mini excavator?

The Cams 216 mini excavator has a track width of 230 mm.

What are the excavation performance specifications of the Cams 216 mini excavator?

The Cams 216 mini excavator has a dredging depth of 2.15 meters and a maximum horizontal reach of 3.73 meters.

What is the tear-out force of the Cams 216 mini excavator?

The Cams 216 mini excavator has a tear-out force of 15 kN.

What are the bucket specifications of the Cams 216 mini excavator?

The Cams 216 mini excavator has a bucket capacity of 0.06 cubic meters and a bucket width of 0.4 meters.

What operator safety and support features does the Cams 216 mini excavator have?

The Cams 216 mini excavator is equipped with a canopy for driver protection.

How much is a Cams 216 Mini excavator (2021u20132025) worth?

The residual value of the Cams 216 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
