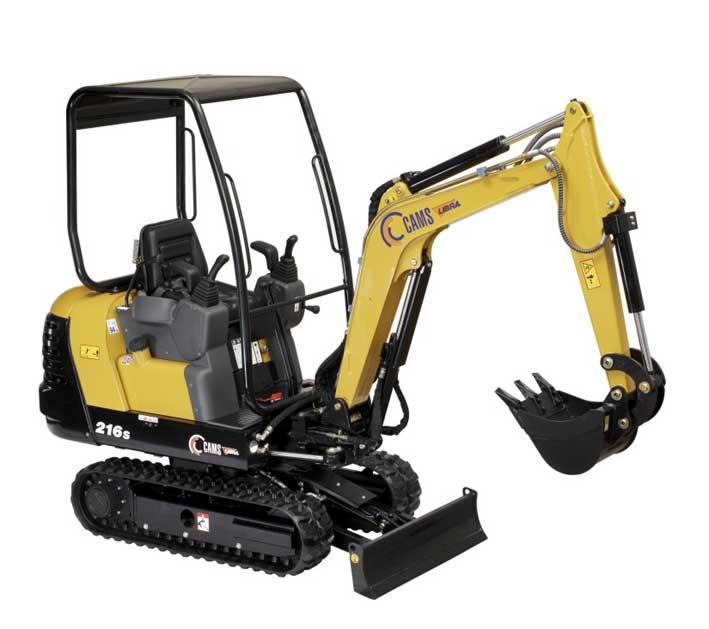

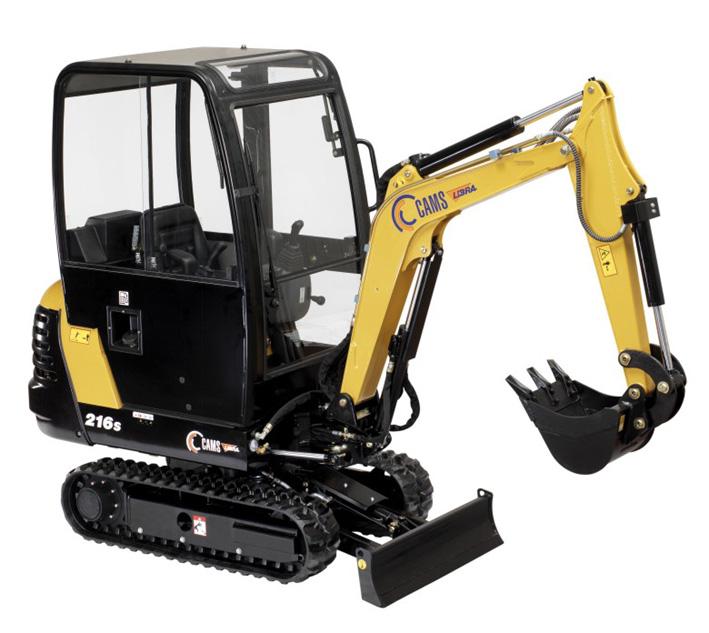

216 Cams excavator specs & dimensions (2009 - 2020)

Cams 216 is a Mini Excavator manufactured from 2009 to 2020, with a weight of 1.65 t. It has a transport length of 2.575 m, a tran…

Cams 216 is a Mini Excavator manufactured from 2009 to 2020, with a weight of 1.65 t. It has a transport length of 2.575 m, a transport width of 1 m, and a transport height of 2.21 m. The bucket width is 0.4 m, and the bucket capacity is 0.06 m³. Special equipment includes a blade and rubber track.

216

Years of manufacture: 2009—2020

Data sheet
Buy & Rent
Spare parts
Transport
News

Technical specs - 216 Cams

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight: 1.65 t

Transport length: 2.575 m

Transport width: 1 m

Transport height: 2.21 m

Bucket capacity: 0.06 m³

Bucket width: 0.4 m

Track width: 230 mm

Driver protection: Kb

Max. Reach horizontal: 3.73 m

Dredging depth: 2.15 m

Tear-out force: 15 kN

Engine manuf.: Kubota

Engine type: D902

Engine power: 12.5 kW

Displacement: 0.898 l

Revolutions at max torque: 1900 rpm

Max. torque: 54 Nm

No. of cylinders: 3

Cylinder bore x stroke: 72x74 mm

More technical details, like: bucket capacity min., bucket capacity max., standard tyres, model series, dimension lxwxh, emission level are available in the full technical specs.

Basic model with standard bucket

Special equipment

Track adjustment: No
Rubber track: Yes
Blade: Yes
Aircondition: No
Quick hitch hydr.: No
Quick hitch mech.: No

Download datasheets (PDF)

216 Cams Specification for Europe (IT)

Cams 216 FAQ

When was the Cams 216 mini excavator manufactured?

The Cams 216 mini excavator was manufactured from 2009 to 2020.

How much does the Cams 216 mini excavator weigh?

The Cams 216 mini excavator weighs 1.65 tons.

What are the transport dimensions of the Cams 216 mini excavator?

The Cams 216 mini excavator has a transport length of 2.58 meters, a transport width of 1 meter, and a transport height of 2.21 meters.

What is the track width of the Cams 216 mini excavator?

The Cams 216 mini excavator has a track width of 230 mm.

What are the excavation performance specifications of the Cams 216 mini excavator?

The Cams 216 mini excavator has a dredging depth of 2.15 meters and a maximum horizontal reach of 3.73 meters.

What is the tear-out force of the Cams 216 mini excavator?

The Cams 216 mini excavator has a tear-out force of 15 kN. The source data does not provide power ratings for this machine.

What are the bucket specifications of the Cams 216 mini excavator?

The Cams 216 mini excavator has a bucket capacity of 0.06 cubic meters and a bucket width of 0.4 meters.

What operator safety and support features does the Cams 216 mini excavator have?

The Cams 216 mini excavator has a driver protection cabin.

How much is a Cams 216 Mini excavator (2009u20132020) worth?

The residual value of the Cams 216 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
