E25 Bobcat excavator specs & dimensions (2012 - 2018)

Bobcat E25 is a mini excavator manufactured from 2012 to 2018, with a weight of 2.44 tons. It features a track width of 250 mm, a …

Bobcat E25 is a mini excavator manufactured from 2012 to 2018, with a weight of 2.44 tons. It features a track width of 250 mm, a transport length of 4.28 meters, a transport width of 1.4 meters, and a transport height of 2.41 meters. The machine has a tear-out force of 15.8 kN, a dredging depth of 2.58 meters, and a maximum horizontal reach of 4.55 meters.

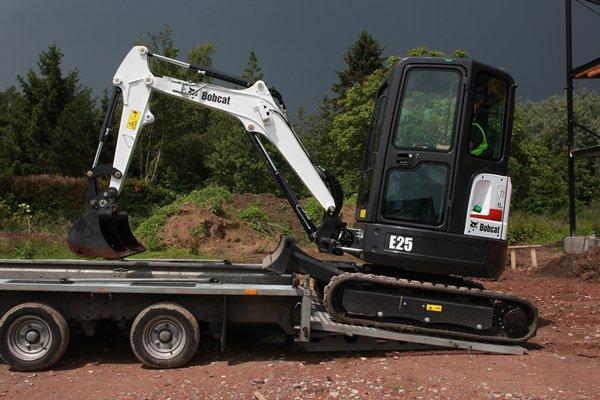

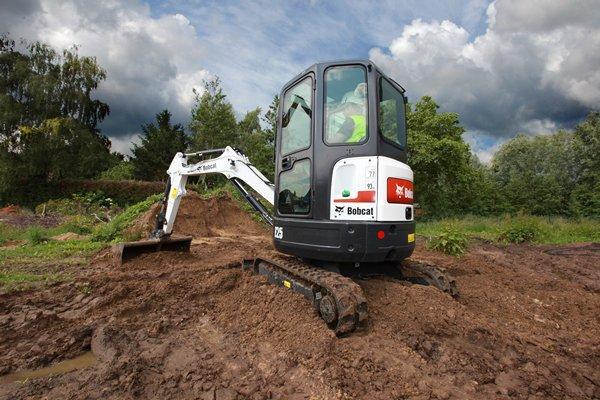

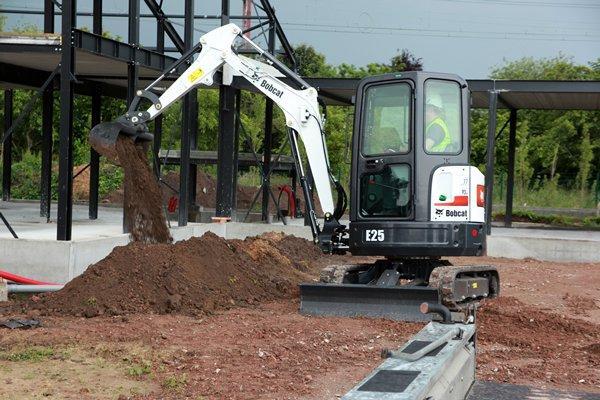

Mini Excavators Bobcat E25
Mini Excavators Bobcat E25
Mini Excavators Bobcat E25
Mini Excavators Bobcat E25
Mini Excavators Bobcat E25
Mini Excavators Bobcat E25
Mini Excavators Bobcat E25
Mini Excavators Bobcat E25

Visit Bobcat live at

Technical specs - E25 Bobcat

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
2.44 t
Transport length
4.28 m
Transport width
1.4 m
Transport height
2.41 m
Track width
250 mm
Driver protection
Kb
Max. Reach horizontal
4.55 m
Dredging depth
2.58 m
Tear-out force
15.8 kN
Model series
E
Engine manuf.
Kubota
Engine type
D1105-E2B-BCZ-2
Engine power
13.3 kW
Displacement
1.123 l
Revolutions at max torque
1400 rpm
Max. torque
65.8 Nm
No. of cylinders
3
Emission level
TIER2

More technical details, like: bucket capacity, bucket capacity min., bucket capacity max., bucket width, standard tyres, dimension lxwxh, cylinder bore x stroke are available in the full technical specs.

Basic model with standard bucket

Special equipment

Track adjustment
No
Rubber track
No
Blade
No
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Bobcat E25 FAQ

When was the Bobcat E25 manufactured?

The Bobcat E25 was manufactured from 2012 to 2018.

How much does the Bobcat E25 weigh?

The Bobcat E25 weighs 2.44 tons.

What are the transport dimensions of the Bobcat E25 mini excavator?

The Bobcat E25 has a transport length of 4.28 meters, a transport width of 1.4 meters, and a transport height of 2.41 meters.

What is the track width of the Bobcat E25 mini excavator's undercarriage?

The Bobcat E25 mini excavator has a track width of 250 mm.

What are the excavation performance specifications of the Bobcat E25 mini excavator?

The Bobcat E25 mini excavator has a dredging depth of 2.58 meters and a maximum horizontal reach of 4.55 meters.

What is the tear-out force of the Bobcat E25 mini excavator?

The Bobcat E25 mini excavator has a tear-out force of 15.8 kN.

What operator safety features does the Bobcat E25 have?

The Bobcat E25 has a cabin for driver protection.

How much is a Bobcat E25 Mini excavator (2012u20132018) worth?

The residual value of the Bobcat E25 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
