E20Z Bobcat excavator specs & dimensions (2014 - 2021)

Bobcat E20Z is a mini excavator manufactured from 2014 to 2021, with a weight of 1.93 tons. It features a track width of 230 mm, a…

Bobcat E20Z is a mini excavator manufactured from 2014 to 2021, with a weight of 1.93 tons. It features a track width of 230 mm, a transport length of 3.688 meters, a transport width of 0.98 meters, and a transport height of 2.297 meters. The machine has a tear-out force of 9.2 kN, a dredging depth of 2.385 meters, and a maximum horizontal reach of 4.089 meters.

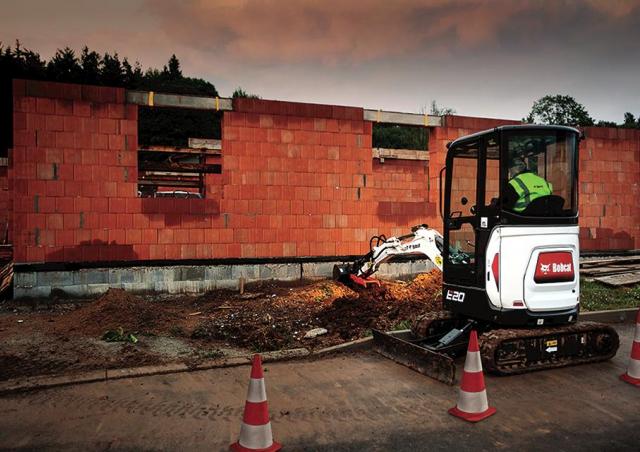

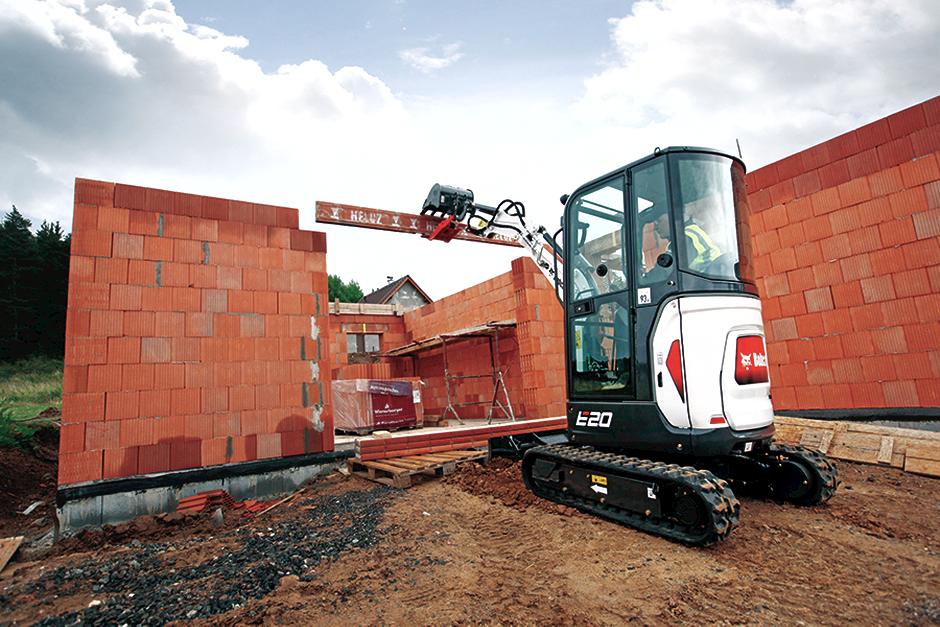

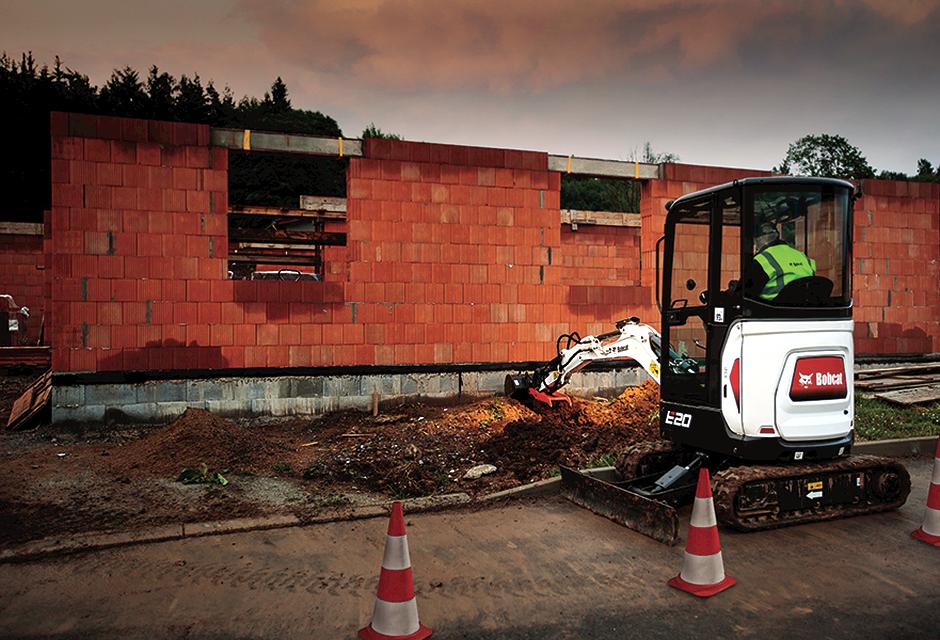

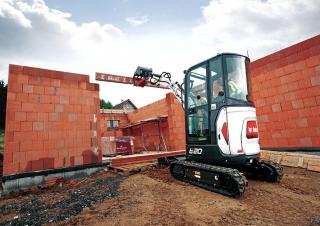

Mini Excavators Bobcat E20Z
Mini Excavators Bobcat E20Z
Mini Excavators Bobcat E20Z
Mini Excavators Bobcat E20Z

Visit Bobcat live at

Technical specs - E20Z Bobcat

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
1.93 t
Transport length
3.688 m
Transport width
0.98 m
Transport height
2.297 m
Track width
230 mm
Driver protection
KbR
Max. Reach horizontal
4.089 m
Dredging depth
2.385 m
Tear-out force
9.2 kN
Model series
E
Engine manuf.
Kubota
Engine type
D722-E2B-BCZ-7
Engine power
9.9 kW
Displacement
0.72 l
Max. torque
42.3 Nm
No. of cylinders
3
Emission level
TIER2

More technical details, like: bucket capacity, bucket capacity min., bucket capacity max., bucket width, standard tyres, dimension lxwxh, revolutions at max torque, cylinder bore x stroke are available in the full technical specs.

Basic model with standard bucket

Special equipment

Track adjustment
No
Rubber track
No
Blade
No
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Bobcat E20Z FAQ

When was the Bobcat E20Z manufactured?

The Bobcat E20Z was manufactured from 2014 to 2021.

How much does the Bobcat E20Z weigh?

The Bobcat E20Z weighs 1.93 tons.

What are the transport dimensions of the Bobcat E20Z mini excavator?

The Bobcat E20Z has a transport length of 3.69 meters, a transport width of 0.98 meters, and a transport height of 2.3 meters.

What is the track width of the Bobcat E20Z mini excavator?

The Bobcat E20Z mini excavator has a track width of 230 mm.

What are the excavation performance specifications of the Bobcat E20Z mini excavator?

The Bobcat E20Z mini excavator has a dredging depth of 2.385 meters and a maximum horizontal reach of 4.089 meters.

What is the tear-out force of the Bobcat E20Z mini excavator?

The Bobcat E20Z mini excavator has a tear-out force of 9.2 kN.

What operator safety features does the Bobcat E20Z have?

The Bobcat E20Z is equipped with a cabin that includes ROPS (Roll-Over Protective Structure) for driver protection.

How much is a Bobcat E20Z Mini excavator (2014u20132021) worth?

The residual value of the Bobcat E20Z depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.

Bobcat E20Z overview

Dimensions and weight

Weights
Operating weight1930 kg
Additional weight for cab with heating81 kg
Additional weight for long dipperstick6 kg
Additional weight for long dozer blade9 kg
Ground pressure with rubber tracks31.10 kPa
Engine
Make / modelKubota / D722-E2B-BCZ-7
FuelDiesel
Number of cylinders3
Displacement0.72 L
Maximum NET power (ISO 9249)9.9 kW
Maximum NET torque (ISO 9249)42.3 Nm
Performance
Digging force dipperstick (ISO 6015)"10371 N
Digging force long dipperstick (ISO 6015)"9279 N
Digging force bucket (ISO 6015)"20835 N
Drawbar pull19302 N
Travel speed low range"2.5 km/h
Travel speed high range"4.0 km/h
Hydraulic System
Pump typeDual piston pump with gear pump
Pump capacity41.30 L/min
Pump 1 capacity at 2500 RPM11.30 L/min
Pump 2 and 3 capacity at 2500 RPM15.00 L/min
Auxiliary flow30.00 L/min
Auxiliary relief180.0 bar
Boom port relief base and rod end210.0 - 250.0 bar
Slew System
Boom swing left"80.0°
Boom swing right"60.0°
Slew rate8.4 RPM
Fluid Capacities
Cooling system3.30 L
Engine lubrication plus oil filter3.30 L
Fuel reservoir19.00 L
Hydraulic system19.00 L
Environmental
Noise level LpA(EU Directive 2006/42/EC)82 dB(A)
Noise level LWA(EU Directive 2000/14/EC)93 dB(A)
Whole body vibration (ISO 2631–1)0.73 ms-2
Hand-arm vibration (ISO 5349–1)1.57 ms-2
Hand-arm vibration (ISO 5349–1) Uncertainty0.37 ms-2
Standard Features
TOPS/ROPS/FOPS canopy 1Full fuel warning alarm
980 mm dozer blade with two 190 mm blade extensionsBattery kill switch
Heavy counterweightCupholders
230 mm rubber trackFoldable and ergonomic pedals
Double acting auxiliary hydraulics with quick couplersHydraulically retractable undercarriage from 1360 mm to
Control console locks980 mm
HornUpper structure four point tie down
Hydraulic joystick controlsWork light
Retractable seat beltEngine with auto shutdown
Two-speed travelHydraulic and travel control lockout Warranty: 12 months 2000 hours (whichever occurs first)"
1. Roll Over Protective Structure (ROPS) – Meets requirements of ISO 3471. Tip Over Protective Structure (TOPS) – Meets requirements of ISO 12117. Falling Object Protective Structure (FOPS) - Meets requirements of ISO 3449.
