E19 Bobcat excavator specs & dimensions (2014 - 2015)

Bobcat E19 is a mini excavator manufactured from 2014 to 2015. It has a weight of 1.78 tons and a track width of 230 mm. The trans…

Bobcat E19 is a mini excavator manufactured from 2014 to 2015. It has a weight of 1.78 tons and a track width of 230 mm. The transport dimensions are 3.83 meters in length, 0.98 meters in width, and 2.3 meters in height. The machine features a tear-out force of 9.2 kN, a dredging depth of 2.38 meters, and a maximum horizontal reach of 4.04 meters.

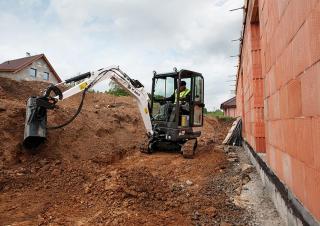

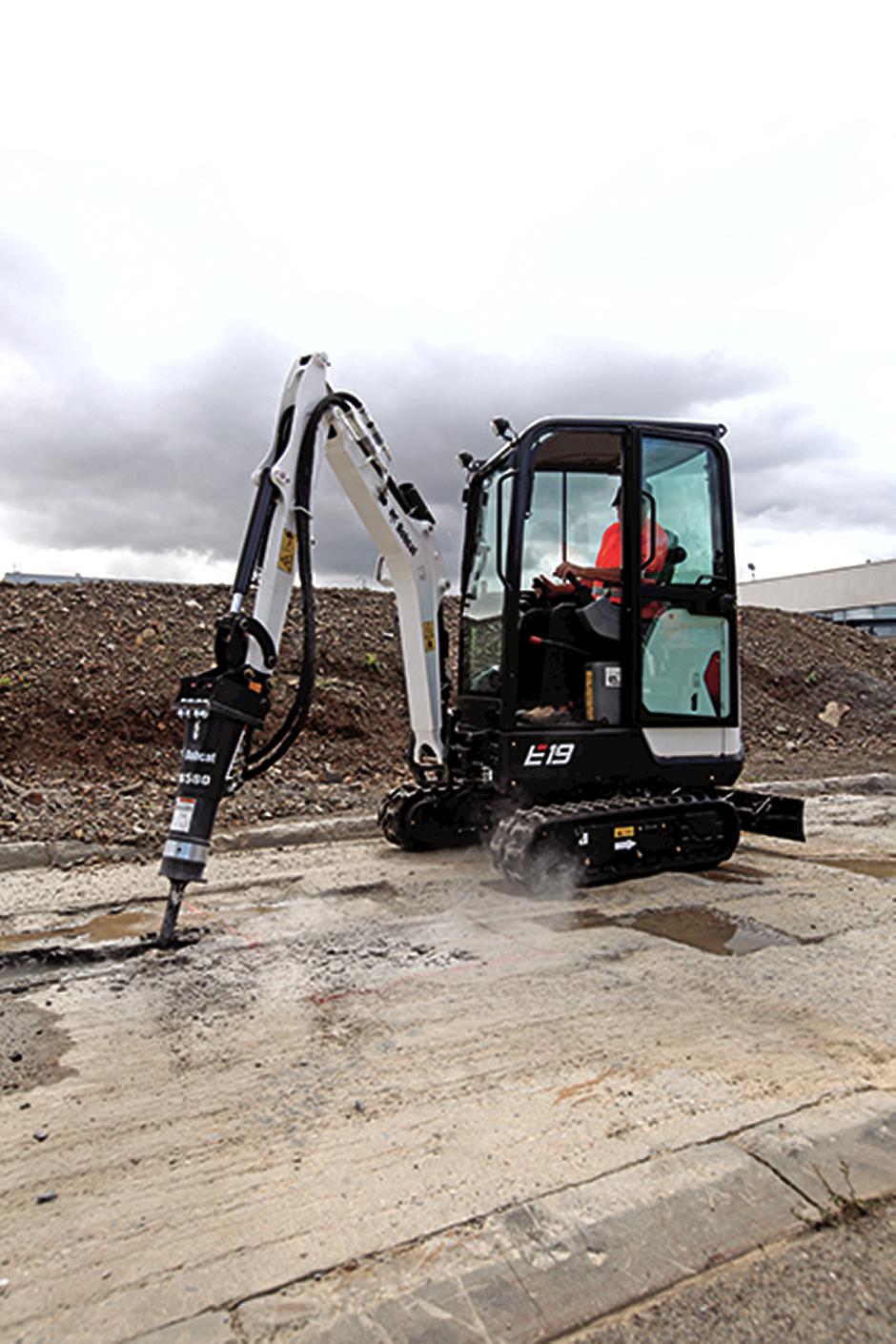

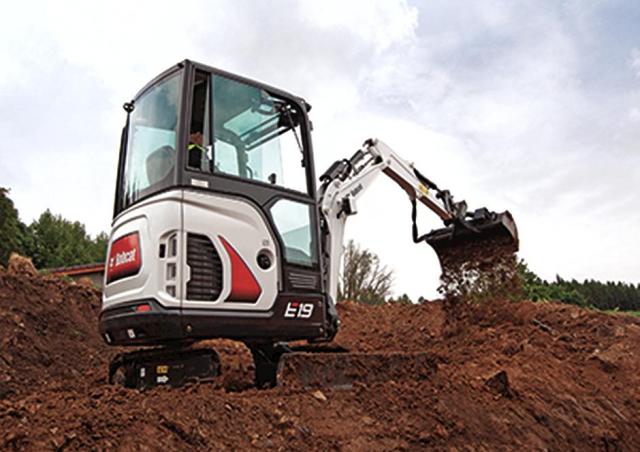

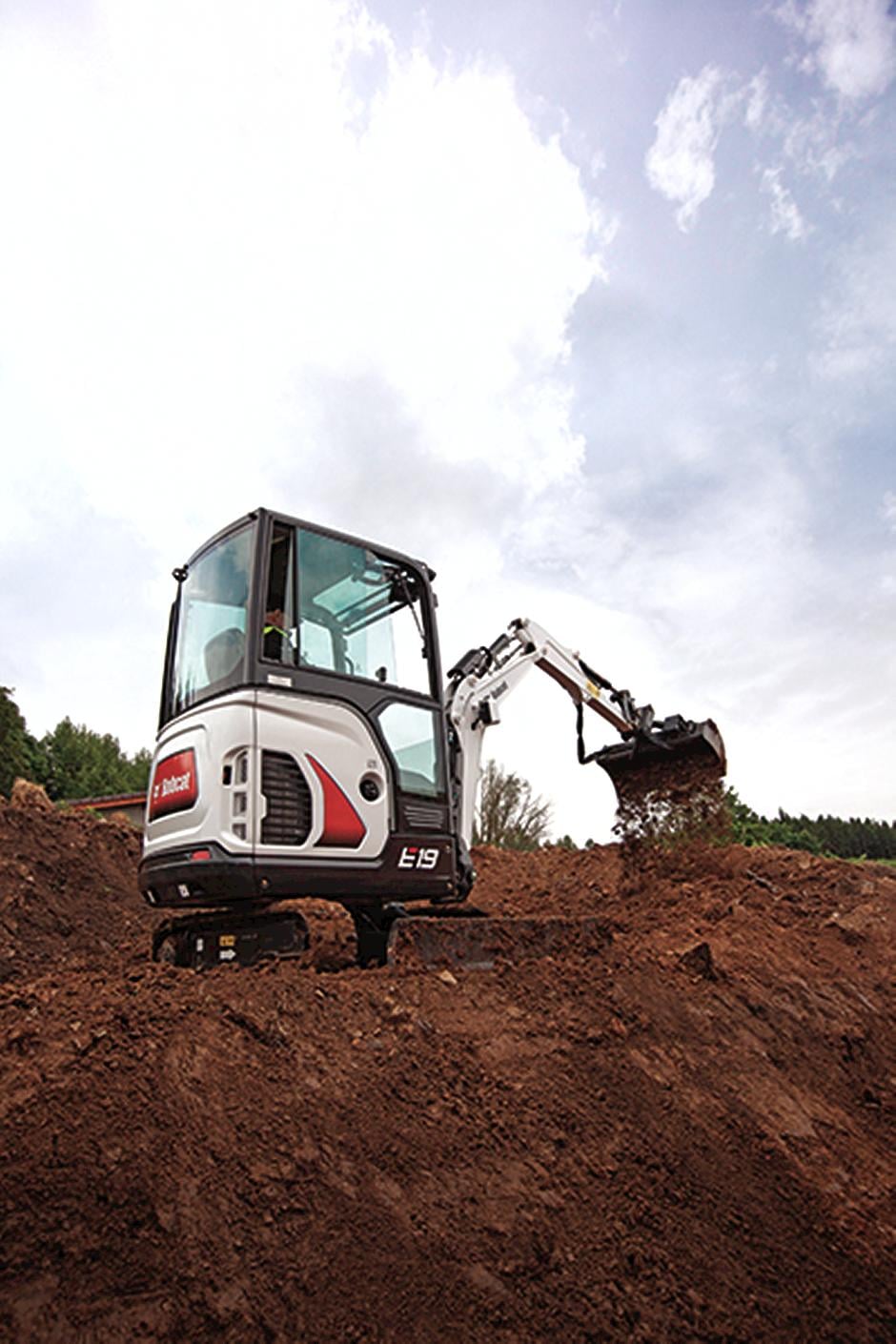

Mini Excavators Bobcat E19
Mini Excavators Bobcat E19
Mini Excavators Bobcat E19
Mini Excavators Bobcat E19
Mini Excavators Bobcat E19
Mini Excavators Bobcat E19
Mini Excavators Bobcat E19
Mini Excavators Bobcat E19

Visit Bobcat live at

Technical specs - E19 Bobcat

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
1.78 t
Transport length
3.83 m
Transport width
0.98 m
Transport height
2.3 m
Track width
230 mm
Driver protection
KbR
Max. Reach horizontal
4.04 m
Dredging depth
2.38 m
Tear-out force
9.2 kN
Model series
E
Engine manuf.
Kubota
Engine type
D722-E2B-BCZ-7
Engine power
9.9 kW
Displacement
0.72 l
Max. torque
42.3 Nm
No. of cylinders
3
Emission level
TIER2

More technical details, like: bucket capacity, bucket capacity min., bucket capacity max., bucket width, standard tyres, dimension lxwxh, revolutions at max torque, cylinder bore x stroke are available in the full technical specs.

Basic model with standard bucket

Special equipment

Track adjustment
No
Rubber track
No
Blade
No
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Bobcat E19 FAQ

When was the Bobcat E19 manufactured?

The Bobcat E19 was manufactured from 2014 to 2015.

How much does the Bobcat E19 weigh?

The Bobcat E19 weighs 1.78 tons.

What are the transport dimensions of the Bobcat E19 mini excavator?

The Bobcat E19 has a transport length of 3.83 meters, a transport width of 0.98 meters, and a transport height of 2.3 meters.

What is the track width of the Bobcat E19 mini excavator?

The Bobcat E19 mini excavator has a track width of 230 mm.

What are the excavation performance specifications of the Bobcat E19 mini excavator?

The Bobcat E19 mini excavator has a dredging depth of 2.38 meters and a maximum horizontal reach of 4.04 meters.

What is the tear-out force of the Bobcat E19 mini excavator?

The Bobcat E19 mini excavator has a tear-out force of 9.2 kN.

What operator safety and support features does the Bobcat E19 have?

The Bobcat E19 is equipped with a cabin that includes ROPS (Roll-Over Protective Structure) for driver protection.

How much is a Bobcat E19 Mini excavator (2014u20132015) worth?

The residual value of the Bobcat E19 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
