E17 Bobcat excavator specs & dimensions (2014 - 2021)

Bobcat E17 is a mini excavator manufactured from 2014 to 2021, with a weight of 1.71 tons. It features a track width of 230 mm, a …

Bobcat E17 is a mini excavator manufactured from 2014 to 2021, with a weight of 1.71 tons. It features a track width of 230 mm, a transport length of 3.665 meters, a transport width of 0.98 meters, and a transport height of 2.299 meters. The machine has a tear-out force of 9.11 kN, a dredging depth of 2.249 meters, and a maximum horizontal reach of 3.871 meters.

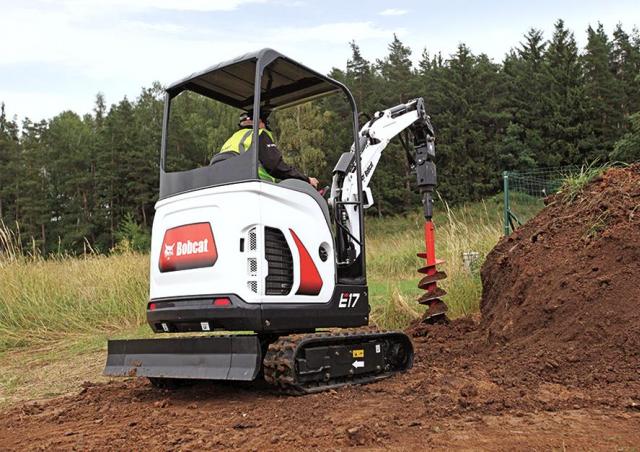

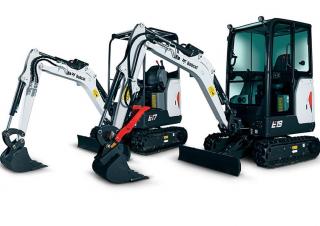

Mini Excavators Bobcat E17
Mini Excavators Bobcat E17
Mini Excavators Bobcat E17
Mini Excavators Bobcat E17

Visit Bobcat live at

Technical specs - E17 Bobcat

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
1.71 t
Transport length
3.665 m
Transport width
0.98 m
Transport height
2.299 m
Track width
230 mm
Driver protection
FD
Max. Reach horizontal
3.871 m
Dredging depth
2.249 m
Tear-out force
9.11 kN
Model series
E
Engine manuf.
Kubota
Engine type
D722-E2B-BCZ-7
Engine power
9.9 kW
Displacement
0.72 l
Max. torque
42.3 Nm
No. of cylinders
3
Emission level
TIER2

More technical details, like: bucket capacity, bucket capacity min., bucket capacity max., bucket width, standard tyres, dimension lxwxh, revolutions at max torque, cylinder bore x stroke are available in the full technical specs.

Basic model with standard bucket

Special equipment

Track adjustment
No
Rubber track
No
Blade
No
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Bobcat E17 FAQ

When was the Bobcat E17 manufactured?

The Bobcat E17 was manufactured from 2014 to 2021.

How much does the Bobcat E17 weigh?

The Bobcat E17 weighs 1.71 tons.

What are the transport dimensions of the Bobcat E17 mini excavator?

The Bobcat E17 has a transport length of 3.67 meters, a transport width of 0.98 meters, and a transport height of 2.3 meters.

What are the undercarriage specifications of the Bobcat E17 mini excavator?

The Bobcat E17 mini excavator has a track width of 230 mm.

What are the dredging depth and maximum horizontal reach of the Bobcat E17 mini excavator?

The Bobcat E17 mini excavator has a dredging depth of 2.249 meters and a maximum horizontal reach of 3.871 meters.

What is the tear-out force of the Bobcat E17 mini excavator?

The Bobcat E17 mini excavator has a tear-out force of 9.11 kN.

What operator safety and support features does the Bobcat E17 have?

The Bobcat E17 provides operator safety with a canopy for driver protection.

How much is a Bobcat E17 Mini excavator (2014u20132021) worth?

The residual value of the Bobcat E17 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
