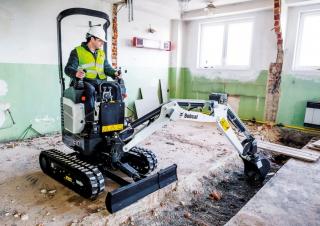

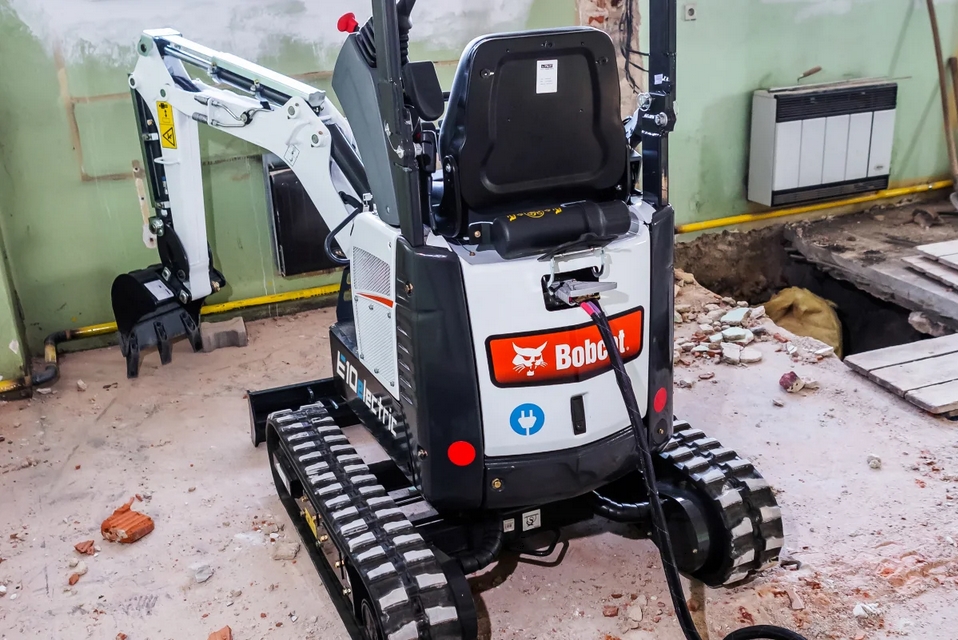

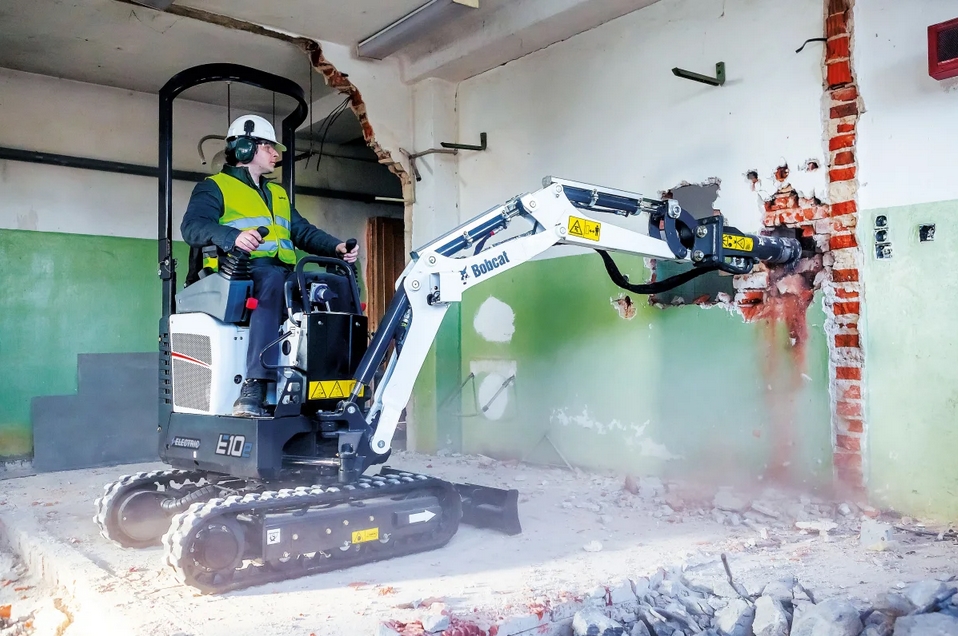

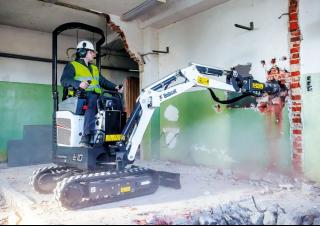

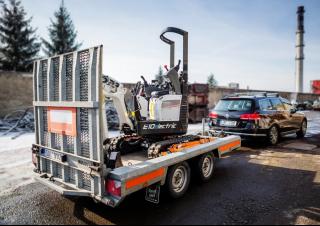

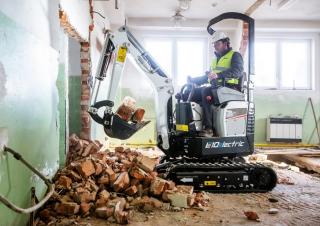

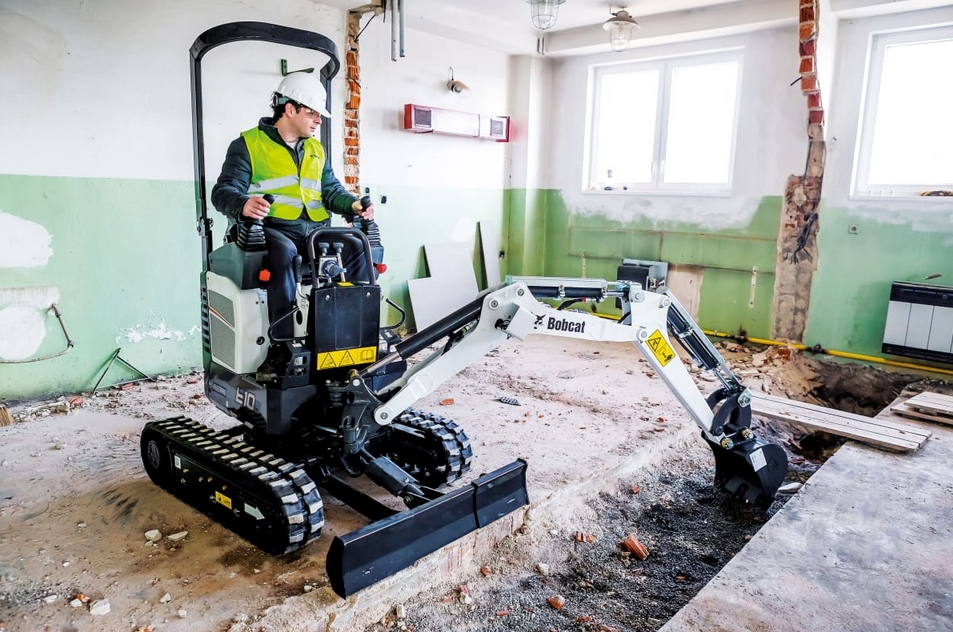

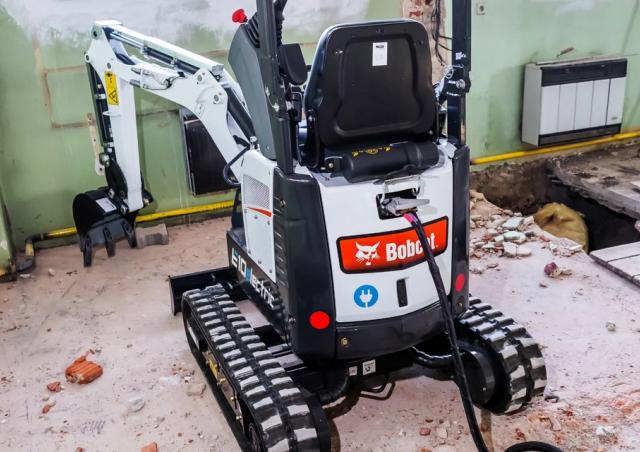

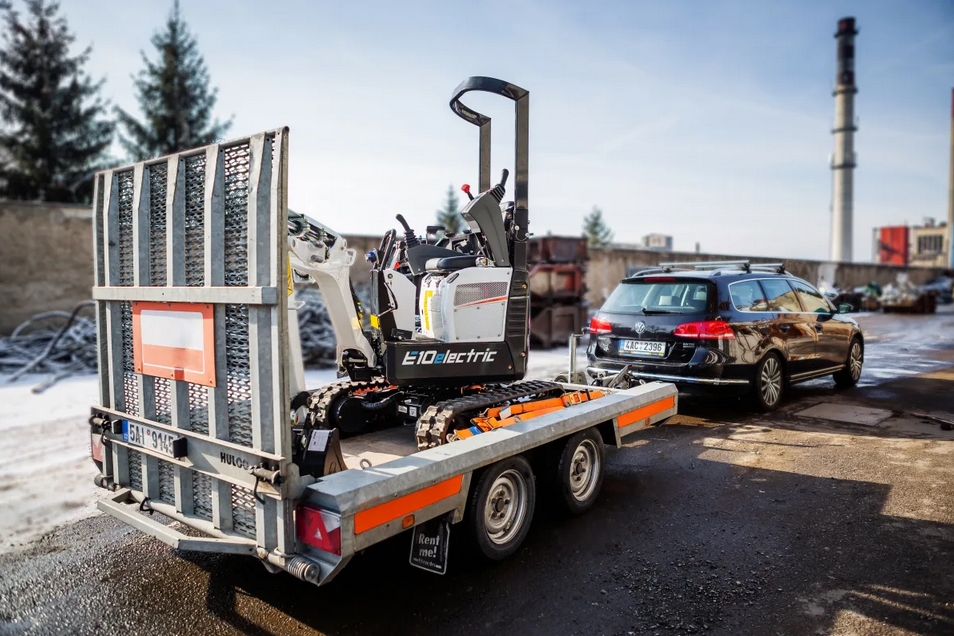

Bobcat E10e excavator specs & dimensions (2021 - 2026) | Diggers

Technical specs - E10e Bobcat

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight: 1.102 t

Transport length: 2.793 m

Transport width: 0.71 m

Transport height: 2.209 m

Max. Reach horizontal: 3.093 m

Dredging depth: 1.82 m

Model series: E

Engine manuf.: Schabmüller

Engine type: Elektro

Engine power: 7.5 kW

More technical details, like: bucket capacity, bucket capacity min., bucket capacity max., bucket width, track width, standard tyres, driver protection, tear-out force, dimension lxwxh, displacement, revolutions at max torque, max. torque...

More technical details, like: bucket capacity, bucket capacity min., bucket capacity max., bucket width, track width, standard tyres, driver protection, tear-out force, dimension lxwxh, displacement, revolutions at max torque, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model with standard bucket

Special equipment

Track adjustment: No
Rubber track: No
Blade: No
Aircondition: No
Quick hitch hydr.: No
Quick hitch mech.: No

Download datasheets (PDF)

Bobcat E10e FAQ

When was the Bobcat E10e manufactured?

The Bobcat E10e was first produced in 2021.

How much does the Bobcat E10e weigh?

The Bobcat E10e weighs 1.1 tons.

What are the transport dimensions of the Bobcat E10e mini excavator?

The Bobcat E10e has a transport length of 2.79 meters, a transport width of 0.71 meters, and a transport height of 2.21 meters.

What are the excavation performance specifications of the Bobcat E10e mini excavator?

The Bobcat E10e mini excavator has a dredging depth of 1.82 meters and a maximum horizontal reach of 3.093 meters.

How much is a Bobcat E10e Mini excavator (2021u20132025) worth?

The residual value of the Bobcat E10e depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
