E10 Bobcat excavator specs & dimensions (2011 - 2019)

Bobcat E10 is a mini excavator manufactured from 2011 to 2019, with a weight of 1.18 tons. It features a track width of 180 mm and…

Bobcat E10 is a mini excavator manufactured from 2011 to 2019, with a weight of 1.18 tons. It features a track width of 180 mm and has transport dimensions of 2.79 meters in length, 0.71 meters in width, and 2.21 meters in height. The machine offers a tear-out force of 8.29 kN, a dredging depth of 1.82 meters, and a maximum horizontal reach of 3.09 meters. Special equipment includes a blade, rubber track, and track adjustment.

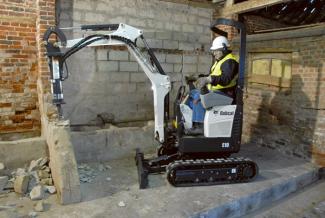

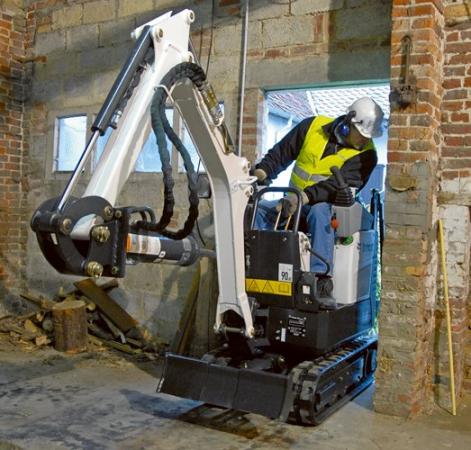

Mini Excavators Bobcat E10
Mini Excavators Bobcat E10
Mini Excavators Bobcat E10
Mini Excavators Bobcat E10
Mini Excavators Bobcat E10
Mini Excavators Bobcat E10
Mini Excavators Bobcat E10
Mini Excavators Bobcat E10

Visit Bobcat live at

Technical specs - E10 Bobcat

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
1.18 t
Transport length
2.79 m
Transport width
0.71 m
Transport height
2.21 m
Track width
180 mm
Driver protection
Ü
Max. Reach horizontal
3.09 m
Dredging depth
1.82 m
Tear-out force
8.29 kN
Model series
E
Engine manuf.
Kubota
Engine type
D722-E2B-BCZ-6
Engine power
7.4 kW
Displacement
0.72 l
Revolutions at max torque
1600 rpm
Max. torque
39.1 Nm
No. of cylinders
3
Emission level
TIER2

More technical details, like: bucket capacity, bucket capacity min., bucket capacity max., bucket width, standard tyres, dimension lxwxh, cylinder bore x stroke are available in the full technical specs.

Basic model with standard bucket

Special equipment

Track adjustment
Yes
Rubber track
Yes
Blade
Yes
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Bobcat E10 FAQ

When was the Bobcat E10 manufactured?

The Bobcat E10 was manufactured from 2011 to 2019.

How much does the Bobcat E10 weigh?

The Bobcat E10 weighs 1.18 tons.

What are the transport dimensions of the Bobcat E10 mini excavator?

The Bobcat E10 has a transport length of 2.79 meters, a transport width of 0.71 meters, and a transport height of 2.21 meters.

What is the track width of the Bobcat E10 mini excavator?

The Bobcat E10 mini excavator has a track width of 180 mm.

What is the excavation performance of the Bobcat E10 mini excavator?

The Bobcat E10 mini excavator has a dredging depth of 1.82 meters and a maximum horizontal reach of 3.09 meters.

What is the power rating of the Bobcat E10 mini excavator?

The source data does not provide power rating information for the Bobcat E10 mini excavator.

What operator safety features does the Bobcat E10 have?

The Bobcat E10 is equipped with a roll-over bar for driver protection.

How much is a Bobcat E10 Mini excavator (2011u20132019) worth?

The residual value of the Bobcat E10 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
