Technical specs - AC 17F Atlas Kompakt

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
1.78 t
Transport length
4.061 m
Transport width
0.99 m
Transport height
2.361 m
Bucket capacity
0.035 m³
Bucket capacity max.
0.035 m³
Track width
230 mm
Driver protection
Kb
Max. Reach horizontal
3.883 m
Dredging depth
2.057 m
Tear-out force
12 kN
Model series
AC
Engine manuf.
Yanmar
Engine type
3TNV80F-SSSU
Engine power
13.4 kW
Displacement
1.267 l
Revolutions at max torque
2200 rpm
No. of cylinders
3
Emission level
US IV

More technical details, like: bucket capacity min., bucket width, standard tyres, dimension lxwxh, max. torque, cylinder bore x stroke are available in the full technical specs.

Basic model with standard bucket

Special equipment

Track adjustment
No
Rubber track
Yes
Blade
Yes
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Atlas Kompakt AC 17F FAQ

When was the Atlas Kompakt AC 17F manufactured?

The Atlas Kompakt AC 17F was first produced in 2024.

How much does the Atlas Kompakt AC 17F weigh?

The Atlas Kompakt AC 17F weighs 1.78 tons.

What are the transport dimensions of the Atlas Kompakt AC 17F mini excavator?

The Atlas Kompakt AC 17F has a transport length of 4.061 meters, a transport width of 0.99 meters, and a transport height of 2.361 meters.

What is the track width of the Atlas Kompakt AC 17F mini excavator?

The Atlas Kompakt AC 17F mini excavator has a track width of 230 mm.

What are the excavation performance specifications of the Atlas Kompakt AC 17F?

The Atlas Kompakt AC 17F has a dredging depth of 2.057 meters and a maximum horizontal reach of 3.883 meters.

What is the tear-out force of the Atlas Kompakt AC 17F?

The Atlas Kompakt AC 17F has a tear-out force of 12 kN.

What is the bucket capacity of the Atlas Kompakt AC 17F mini excavator?

The Atlas Kompakt AC 17F has a bucket capacity of 0.035 cubic meters.

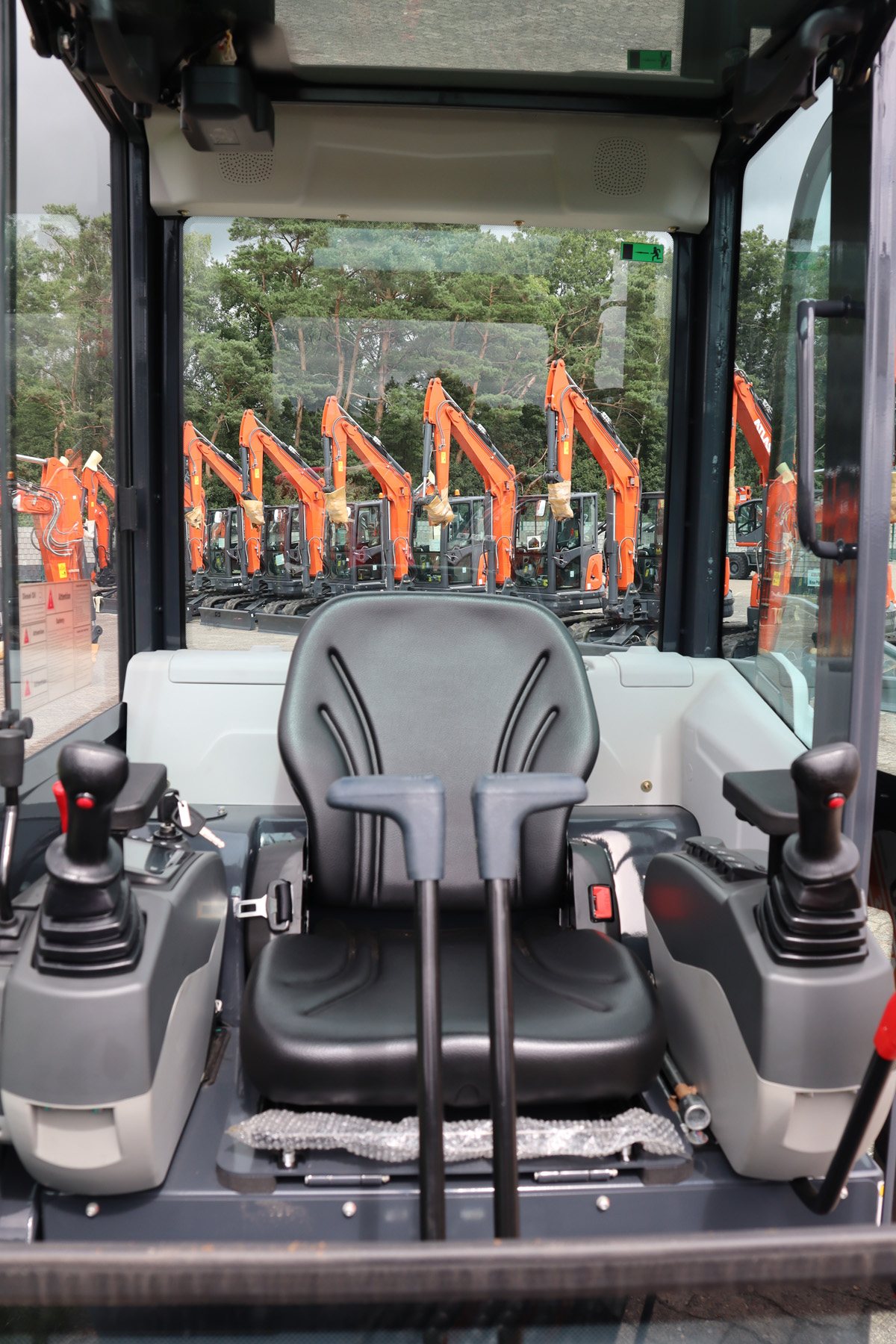

What operator safety features does the Atlas Kompakt AC 17F have?

The Atlas Kompakt AC 17F has a cabin for driver protection.
