AX 18-4 Airman excavator specs & dimensions (2010 - 2016)

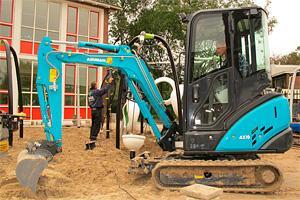

Airman AX 18-4 is a mini excavator manufactured from 2010 to 2016. It has a weight of 1.93 tons and a track width of 230 mm. The t…

Airman AX 18-4 is a mini excavator manufactured from 2010 to 2016. It has a weight of 1.93 tons and a track width of 230 mm. The transport dimensions are 3.79 meters in length, 1.04 meters in width, and 2.38 meters in height. The bucket width is 0.4 meters with a maximum bucket capacity of 0.044 cubic meters. Special equipment includes a blade, rubber track, and track adjustment.

Mini Excavators Airman AX 18-4

Technical specs - AX 18-4 Airman

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
1.93 t
Transport length
3.79 m
Transport width
1.04 m
Transport height
2.38 m
Bucket capacity max.
0.044 m³
Bucket width
0.4 m
Track width
230 mm
Driver protection
Kb
Max. Reach horizontal
3.97 m
Dredging depth
2.37 m
Tear-out force
12.6 kN
Model series
AX
Engine manuf.
Yanmar
Engine type
3TNV70
Engine power
11.1 kW
Displacement
0.993 l
Max. torque
52.7 Nm
No. of cylinders
3

More technical details, like: bucket capacity, bucket capacity min., standard tyres, dimension lxwxh, revolutions at max torque, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model with standard bucket

Special equipment

Track adjustment
Yes
Rubber track
Yes
Blade
Yes
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Airman AX 18-4 FAQ

When was the Airman AX 18-4 manufactured?

The Airman AX 18-4 was manufactured from 2010 to 2016.

How much does the Airman AX 18-4 weigh?

The Airman AX 18-4 weighs 1.93 tons.

What are the transport dimensions of the Airman AX 18-4 mini excavator?

The Airman AX 18-4 has transport dimensions of 3.79 meters in length, 1.04 meters in width, and 2.38 meters in height.

What is the track width of the Airman AX 18-4 mini excavator?

The Airman AX 18-4 mini excavator has a track width of 230 mm.

What are the excavation dimensions of the Airman AX 18-4 mini excavator?

The Airman AX 18-4 mini excavator has a dredging depth of 2.37 meters and a maximum horizontal reach of 3.97 meters.

What is the tear-out force of the Airman AX 18-4 mini excavator?

The Airman AX 18-4 mini excavator has a tear-out force of 12.6 kN.

What are the specifications of the primary work tool on the Airman AX 18-4 mini excavator?

The primary work tool of the Airman AX 18-4 has a maximum bucket capacity of 0.04 cubic meters and a bucket width of 0.4 meters.

What driver protection feature does the Airman AX 18-4 have?

The Airman AX 18-4 has a cabin for driver protection.
