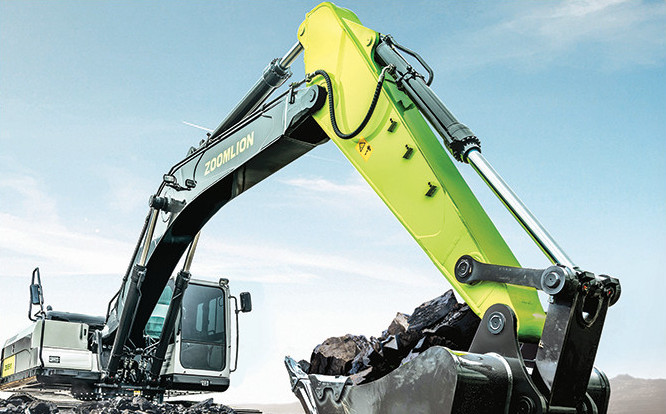

ZE360ESP Zoomlion excavator specs & Dimensions (2020 - 2023)

Zoomlion ZE360ESP is a crawler excavator manufactured since 2020. It has a weight of 34.08 tons and a track width of 600 mm. The t…

Zoomlion ZE360ESP is a crawler excavator manufactured since 2020. It has a weight of 34.08 tons and a track width of 600 mm. The transport dimensions are 10.935 meters in length, 3.19 meters in width, and 3.738 meters in height. The machine offers a tear-out force of 219 kN, a dredging depth of 6.522 meters, and a maximum horizontal reach of 10.059 meters.

Crawler Excavators Zoomlion ZE360ESP

Technical specs - ZE360ESP Zoomlion

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
34.08 t
Transport length
10.935 m
Transport width
3.19 m
Transport height
3.738 m
Track width
600 mm
Boom
MB
Max. Reach horizontal
10.059 m
Dredging depth
6.522 m
Tear-out force
219 kN
Model series
ZE
Engine manuf.
Cummins
Engine type
6C8.3
Engine power
198 kW
Displacement
8.3 l
Revolutions at max torque
1500 rpm
Max. torque
1157 Nm
No. of cylinders
6

More technical details, like: bucket capacity, bucket capacity min., bucket capacity max., undercarriage, bucket width, dimension lxwxh, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Track adjustment
No
Blade
No
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
No
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Zoomlion ZE360ESP FAQ

When was the Zoomlion ZE360ESP manufactured?

The Zoomlion ZE360ESP was manufactured from 2020 to 2023.

How much does the Zoomlion ZE360ESP weigh?

The Zoomlion ZE360ESP weighs 34.08 tons.

What are the transport dimensions of the Zoomlion ZE360ESP?

The Zoomlion ZE360ESP has a transport length of 10.94 meters, a transport width of 3.19 meters, and a transport height of 3.74 meters.

What is the track width of the Zoomlion ZE360ESP's undercarriage?

The Zoomlion ZE360ESP has a track width of 600 mm.

What are the excavation performance specifications of the Zoomlion ZE360ESP crawler excavator?

The Zoomlion ZE360ESP crawler excavator has a dredging depth of 6.522 meters, a maximum horizontal reach of 10.059 meters, and features a monobloc boom.

What is the tear-out force of the Zoomlion ZE360ESP?

The Zoomlion ZE360ESP has a tear-out force of 219 kN.

How much is a Zoomlion ZE360ESP Crawler excavator (2020u20132023) worth?

The residual value of the Zoomlion ZE360ESP depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
