YC330 Yuchai excavator specs & Dimensions (2026 - 2026)

Weight: 31.38t – Transport length: 10.686m – Transport width: 3.28m – Transport height: 3.546m – Bucket capacity: 1.4m³ – Track wi…

Weight: 31.38t – Transport length: 10.686m – Transport width: 3.28m – Transport height: 3.546m – Bucket capacity: 1.4m³ – Track width: 600mm

Check out detailed specifications, information and technical data for Yuchai YC330 excavator manufactured between 2026 - 2026. Get more in-depth insight with Yuchai YC330 digger specifications. See information, like: Weight: 31.38t – Transport length: 10.686m – Transport width: 3.28m – Transport height: 3.546m – Bucket capacity: 1.4m³ – Track width: 600mm and more.

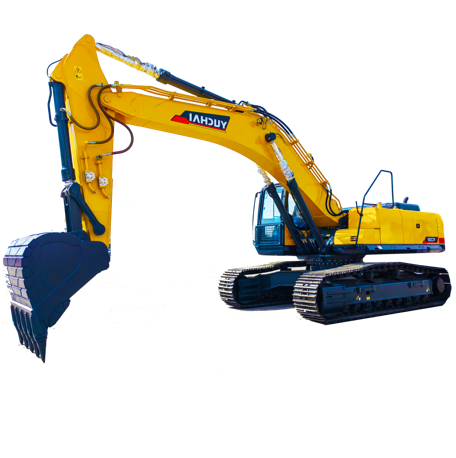

Crawler Excavators Yuchai YC330

Technical specs - YC330 Yuchai

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
31.38 t
Transport length
10.686 m
Transport width
3.28 m
Transport height
3.546 m
Bucket capacity
1.4 m³
Track width
600 mm
Max. Reach horizontal
10.233 m
Dredging depth
6.536 m
Tear-out force
225 kN
Engine manuf.
Cummins
Engine type
QSB7
Engine power
169 kW
Revolutions at max torque
1300 rpm
Max. torque
895 Nm

More technical details, like: bucket capacity min., bucket capacity max., undercarriage, boom, bucket width, model series, dimension lxwxh, displacement, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Track adjustment
No
Blade
No
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
No
Aircondition
Yes
Quick hitch hydr.
No
Quick hitch mech.
No
