XE135E XCMG excavator specs & Dimensions (2026 - 2026)

Weight: 15.3t – Transport length: 7.77m – Transport width: 2.69m – Transport height: 3.135m – Bucket capacity: 0.5m³ – Track width…

Weight: 15.3t – Transport length: 7.77m – Transport width: 2.69m – Transport height: 3.135m – Bucket capacity: 0.5m³ – Track width: 700mm

Check out detailed specifications, information and technical data for XCMG XE135E excavator manufactured between 2026 - 2026. Get more in-depth insight with XCMG XE135E digger specifications. See information, like: Weight: 15.3t – Transport length: 7.77m – Transport width: 2.69m – Transport height: 3.135m – Bucket capacity: 0.5m³ – Track width: 700mm and more.

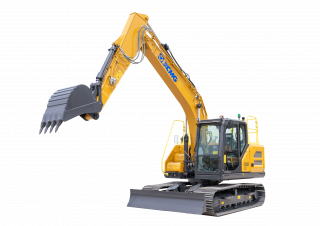

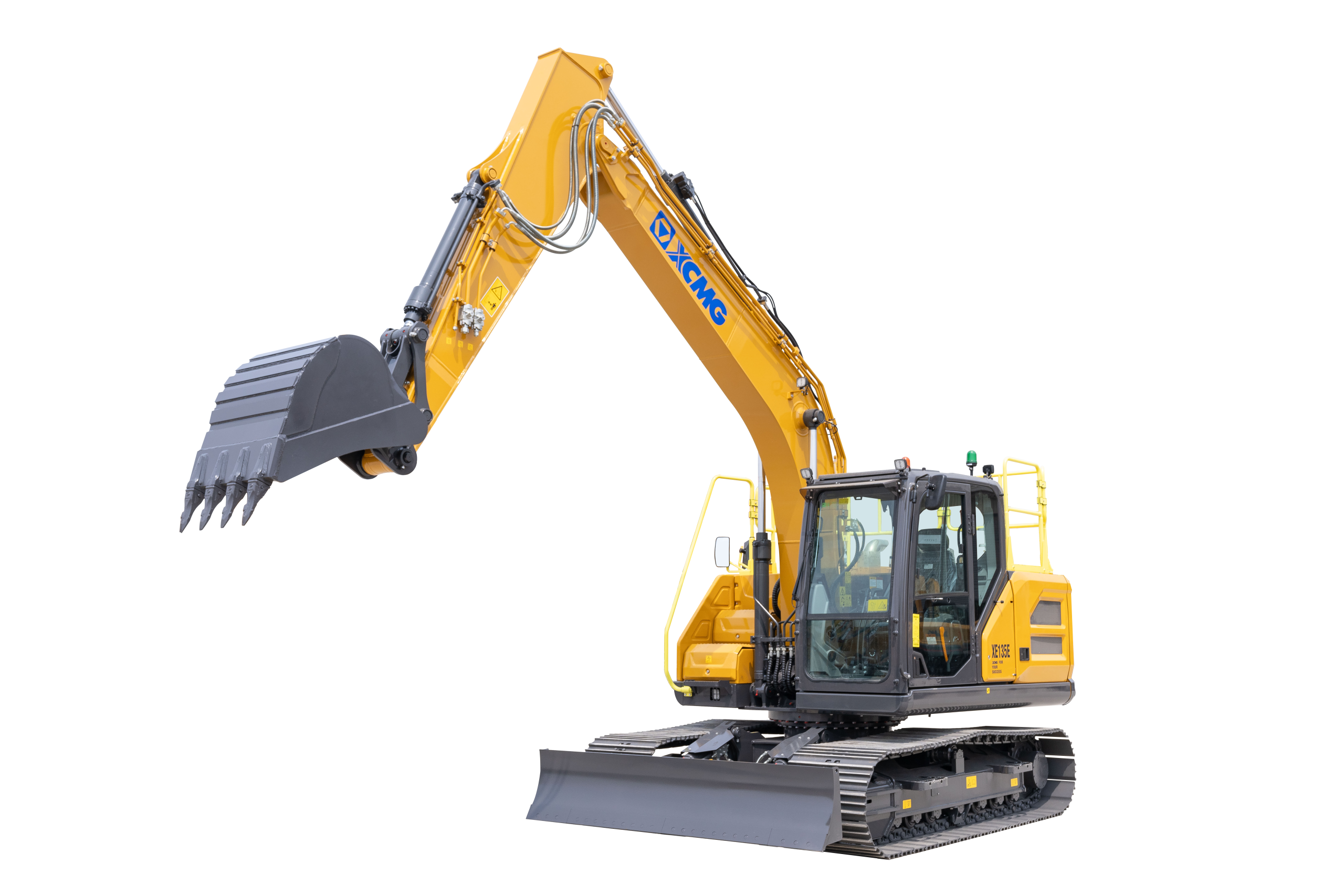

Crawler Excavators XCMG XE135E

Visit XCMG live at

Technical specs - XE135E XCMG

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
15.3 t
Transport length
7.77 m
Transport width
2.69 m
Transport height
3.135 m
Bucket capacity
0.5 m³
Track width
700 mm
Boom
MB
Max. Reach horizontal
8.775 m
Dredging depth
6.02 m
Tear-out force
90 kN
Model series
XE
Engine manuf.
Cummins
Engine type
F3.8
Engine power
90 kW
Displacement
3.8 l
Revolutions at max torque
2200 rpm
Max. torque
500/1500 Nm
No. of cylinders
4
Cylinder bore x stroke
102x115 mm

More technical details, like: bucket capacity min., bucket capacity max., undercarriage, bucket width, dimension lxwxh, emission level are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Track adjustment
No
Blade
No
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
No
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No
