75 Z 3 Wacker Neuson excavator specs & Dimensions (2008 - 2016)

Model rating
9,50 / 10

Wacker Neuson 75 Z 3 is a Crawler Excavator manufactured from 2008 to 2016, with a weight of 7.89 tons. It features a track width …

Wacker Neuson 75 Z 3 is a Crawler Excavator manufactured from 2008 to 2016, with a weight of 7.89 tons. It features a track width of 450 mm, a transport length of 5.9 meters, a transport width of 2.3 meters, and a transport height of 2.67 meters. The excavator is equipped with air conditioning and a blade.

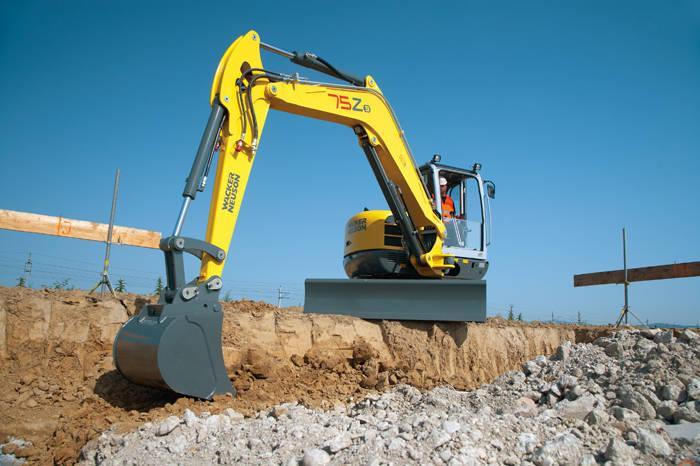

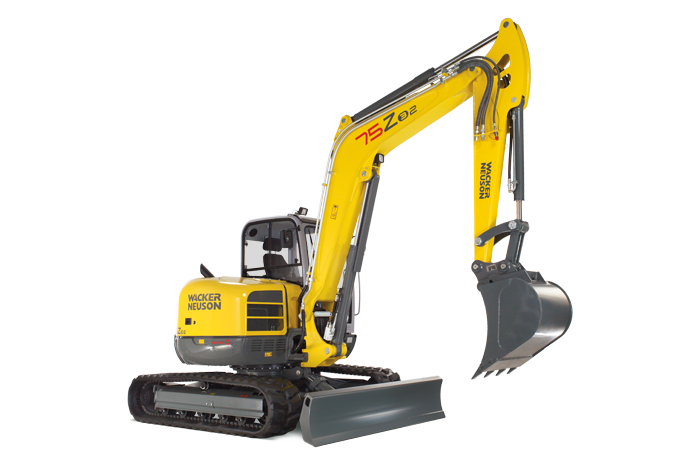

Crawler Excavators Wacker Neuson 75 Z 3
Crawler Excavators Wacker Neuson 75 Z 3
Crawler Excavators Wacker Neuson 75 Z 3
Crawler Excavators Wacker Neuson 75 Z 3
Crawler Excavators Wacker Neuson 75 Z 3
Crawler Excavators Wacker Neuson 75 Z 3

Visit Wacker Neuson live at

Technical specs - 75 Z 3 Wacker Neuson

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
7.89 t
Transport length
5.9 m
Transport width
2.3 m
Transport height
2.67 m
Bucket capacity
0.28 m³
Undercarriage
SL
Track width
450 mm
Boom
MB
Max. Reach horizontal
7.07 m
Engine manuf.
Yanmar
Engine type
4TNV98
Engine power
51.1 kW
Displacement
3.318 l
Revolutions at max torque
2100 rpm

More technical details, like: bucket capacity min., bucket capacity max., dredging depth, tear-out force, bucket width, model series, dimension lxwxh, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Track adjustment
No
Blade
Yes
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
No
Aircondition
Yes
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Wacker Neuson 75 Z 3 FAQ

When was the Wacker Neuson 75 Z 3 manufactured?

The Wacker Neuson 75 Z 3 was manufactured from 2008 to 2016.

How much does the Wacker Neuson 75 Z 3 weigh?

The Wacker Neuson 75 Z 3 weighs 7.89 tons.

What are the transport dimensions of the Wacker Neuson 75 Z 3 crawler excavator?

The Wacker Neuson 75 Z 3 has a transport length of 5.9 meters, a transport width of 2.3 meters, and a transport height of 2.67 meters.

What are the undercarriage specifications of the Wacker Neuson 75 Z 3?

The Wacker Neuson 75 Z 3 has a standard undercarriage with a track width of 450 mm.

What are the excavation performance specifications of the Wacker Neuson 75 Z 3?

The Wacker Neuson 75 Z 3 has a maximum horizontal reach of 7.07 meters and features a monobloc boom.

What is the bucket capacity of the Wacker Neuson 75 Z 3?

The bucket capacity of the Wacker Neuson 75 Z 3 is 0.28 cubic meters.

How much is a Wacker Neuson 75 Z 3 Crawler excavator (2008u20132016) worth?

The residual value of the Wacker Neuson 75 Z 3 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
