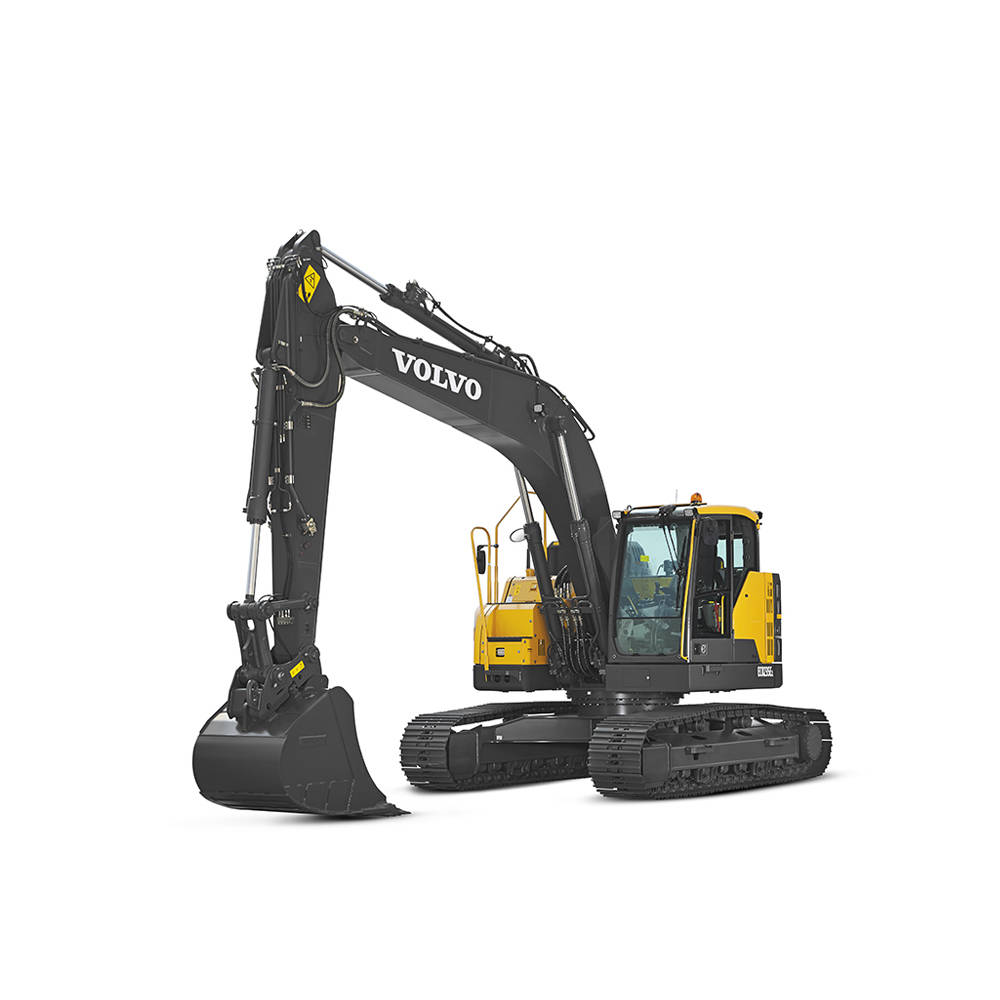

ECR235E Volvo excavator specs & Dimensions (2022 - 2026)

Volvo ECR235E is a Crawler Excavator manufactured since 2022, with a weight of 27.84 tons. It features a track width of 700 mm, a …

Volvo ECR235E is a Crawler Excavator manufactured since 2022, with a weight of 27.84 tons. It features a track width of 700 mm, a transport length of 9.07 meters, a transport width of 3.09 meters, and a transport height of 3.365 meters. The excavator has a tear-out force of 132.2 kN, a dredging depth of 6.755 meters, and a maximum horizontal reach of 9.89 meters. The bucket capacity ranges from 0.36 m³ to 1.44 m³. Special equipment includes air conditioning and a diesel particulate filter.

Crawler Excavators Volvo ECR235E

Visit Volvo live at

Technical specs - ECR235E Volvo

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
27.84 t
Transport length
9.07 m
Transport width
3.09 m
Transport height
3.365 m
Bucket capacity
1.44 m³
Bucket capacity min.
0.36 m³
Bucket capacity max.
1.44 m³
Track width
700 mm
Max. Reach horizontal
9.89 m
Dredging depth
6.755 m
Tear-out force
132.2 kN
Model series
ECR
Engine manuf.
Volvo
Engine type
D4J
Engine power
89 kW
Displacement
4 l
Revolutions at max torque
2000 rpm
Max. torque
566/1500 Nm
No. of cylinders
4
Cylinder bore x stroke
101x126 mm
Emission level
V

More technical details, like: undercarriage, boom, bucket width, dimension lxwxh are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
Yes
Track adjustment
No
Blade
No
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
No
Aircondition
Yes
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Volvo ECR235E FAQ

When was the Volvo ECR235E manufactured?

The Volvo ECR235E was first produced in 2022.

How much does the Volvo ECR235E weigh?

The Volvo ECR235E weighs 27.84 tons.

What are the transport dimensions of the Volvo ECR235E crawler excavator?

The Volvo ECR235E has a transport length of 9.07 meters, a transport width of 3.09 meters, and a transport height of 3.37 meters.

What is the track width of the Volvo ECR235E's undercarriage?

The Volvo ECR235E has a track width of 700 mm.

What are the excavation performance specifications of the Volvo ECR235E?

The Volvo ECR235E has a dredging depth of 6.755 meters and a maximum horizontal reach of 9.89 meters.

What is the tear-out force of the Volvo ECR235E?

The Volvo ECR235E has a tear-out force of 132.2 kN.

What are the bucket capacity specifications of the Volvo ECR235E excavator?

The Volvo ECR235E has a bucket capacity of 1.44 cubic meters, with a maximum capacity of 1.44 cubic meters and a minimum capacity of 0.36 cubic meters.
