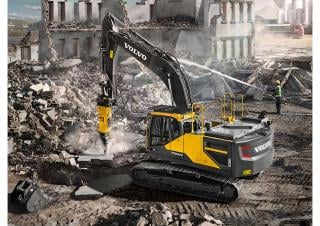

EC250EL Volvo excavator specs & Dimensions (2019 - 2026)
.jpg)
.jpg)
Visit Volvo live at
.jpg){kind=logo}
Technical specs - EC250EL Volvo
Specification
Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.
- Weight
- 26.29 t
- Transport length
- 10.31 m
- Transport width
- 3.19 m
- Transport height
- 3.51 m
- Track width
- 600 mm
- Boom
- MB
- Max. Reach horizontal
- 9.96 m
- Dredging depth
- 6.59 m
- Tear-out force
- 171 kN
- Model series
- EC
- Engine manuf.
- Volvo
- Engine type
- D8J
- Engine power
- 159 kW
- Displacement
- 7.8 l
- Revolutions at max torque
- 1800 rpm
- Max. torque
- 1110/1350 Nm
- No. of cylinders
- 6
- Cylinder bore x stroke
- 110x136 mm
- Emission level
- V
More technical details, like: bucket capacity, bucket capacity min., bucket capacity max., undercarriage, bucket width, dimension lxwxh are available in the full technical specs.
Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket
Special equipment
- Diesel particulate filter
-
No
- Track adjustment
-
No
- Blade
-
Yes
- Cabin adjustment
-
No
- Overload alert
-
No
- Material Handling Excavator
-
No
- Aircondition
-
Yes
- Quick hitch hydr.
-
No
- Quick hitch mech.
-
No
