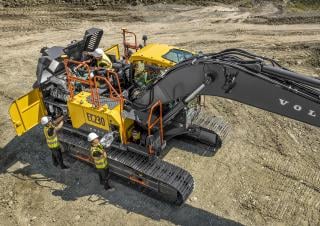

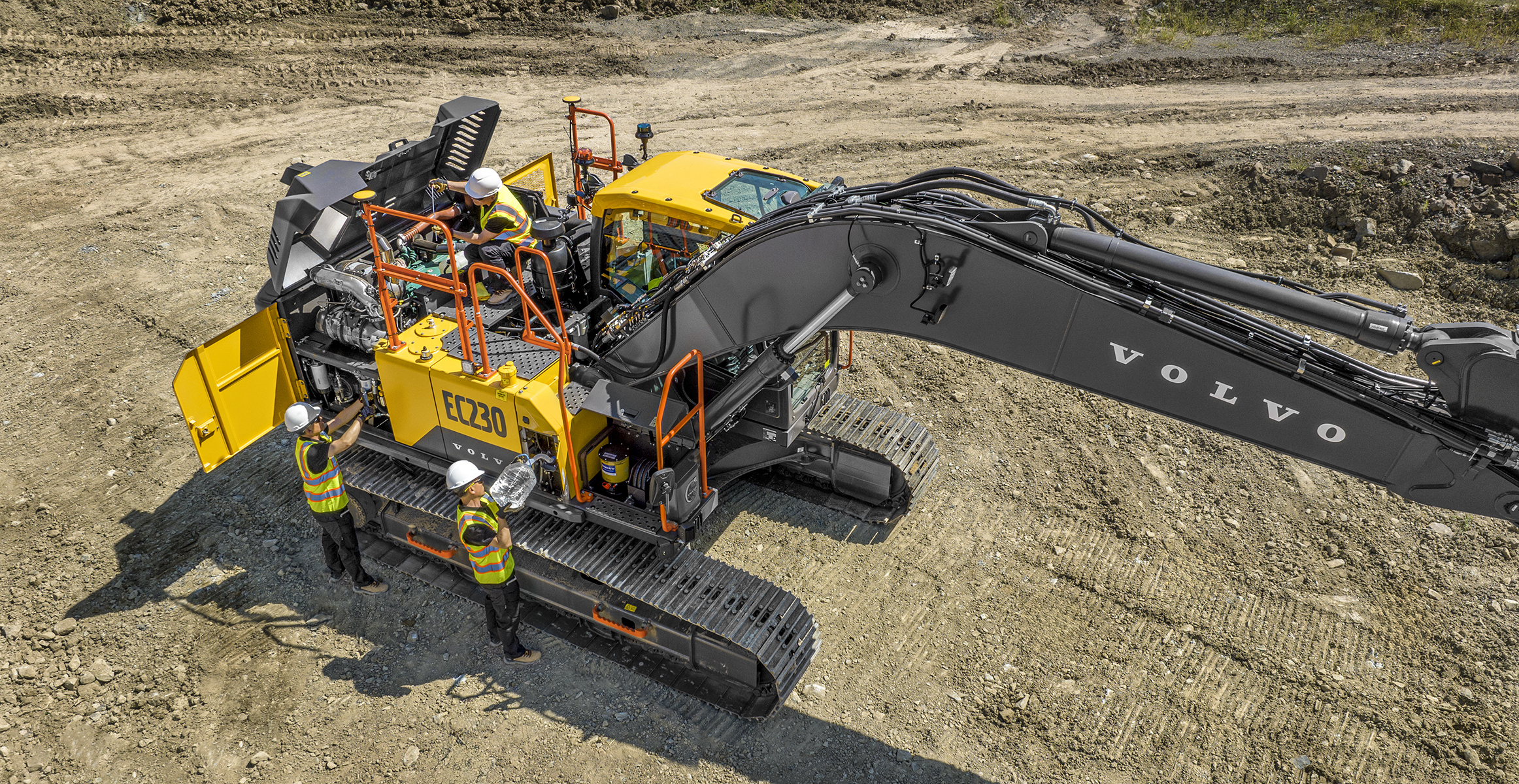

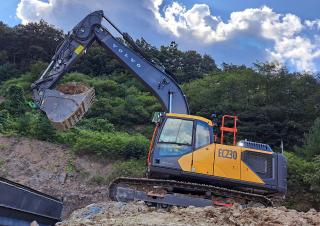

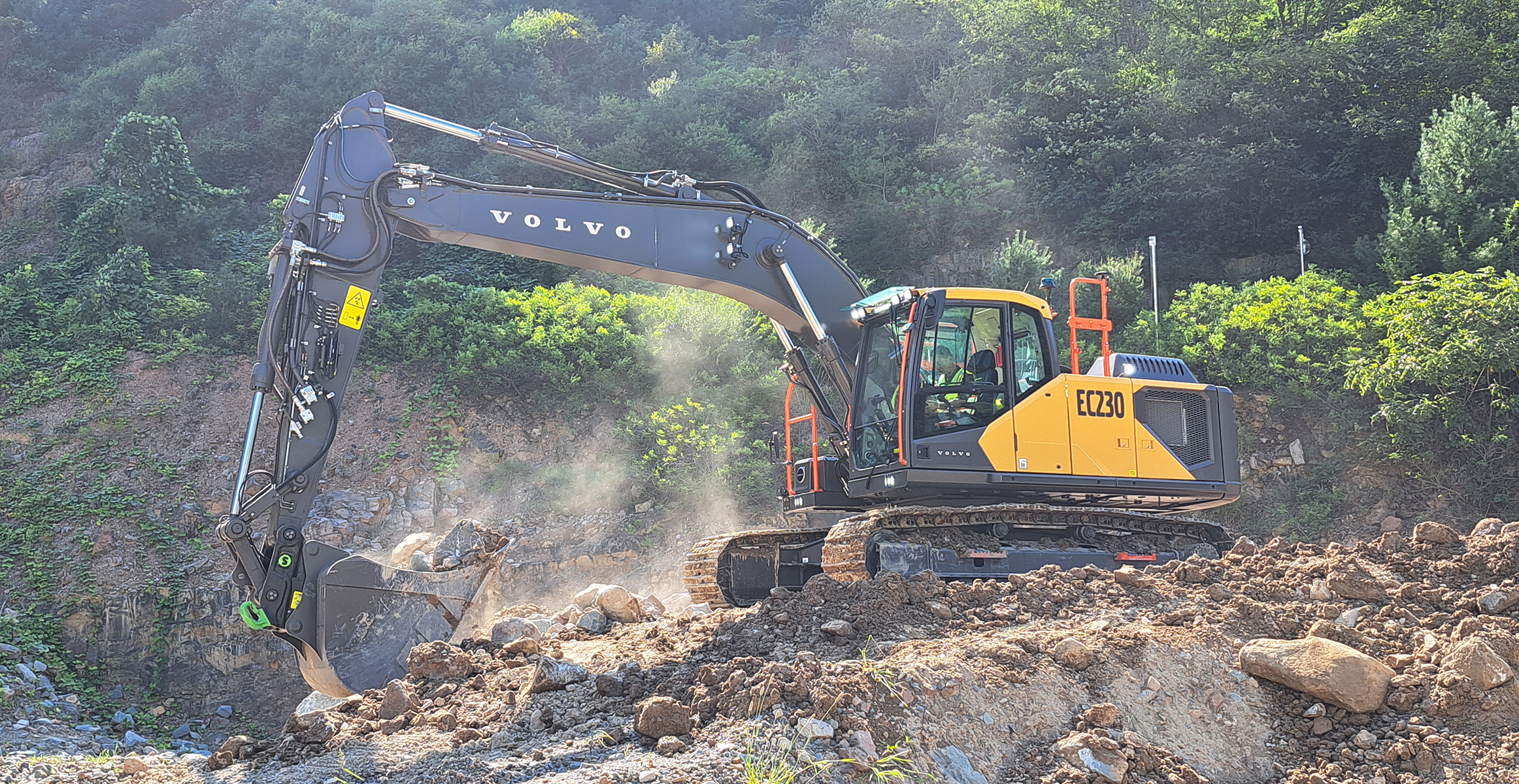

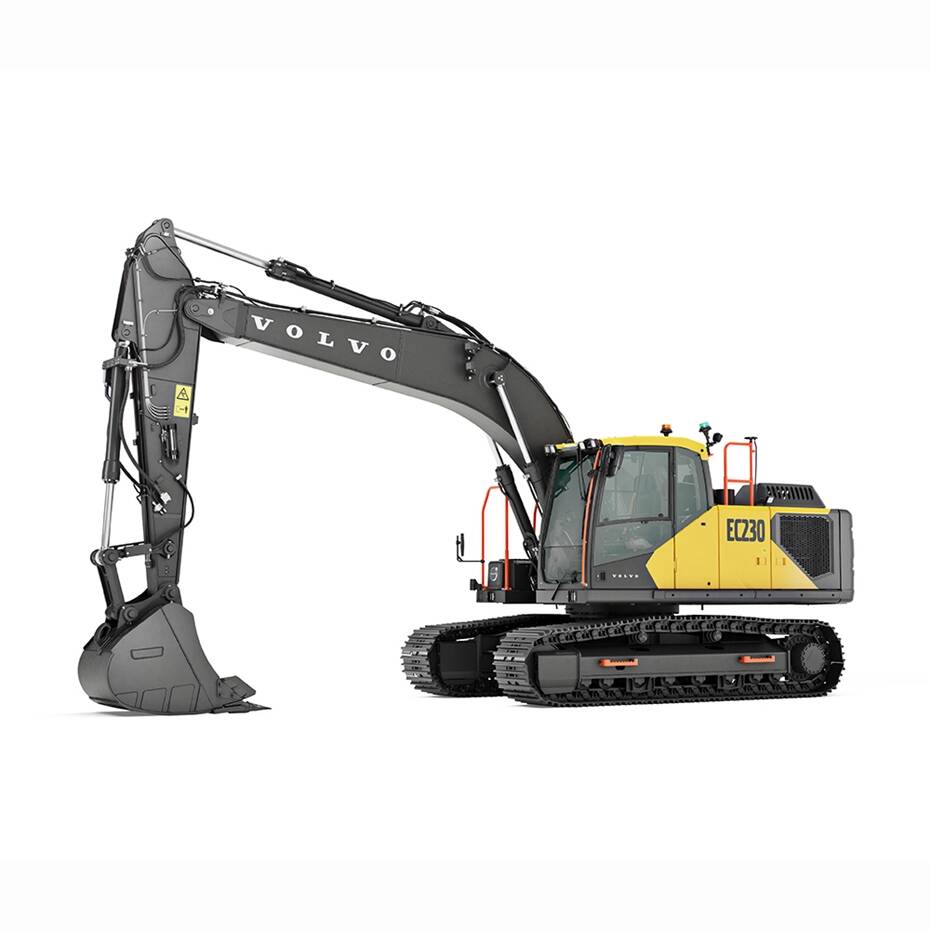

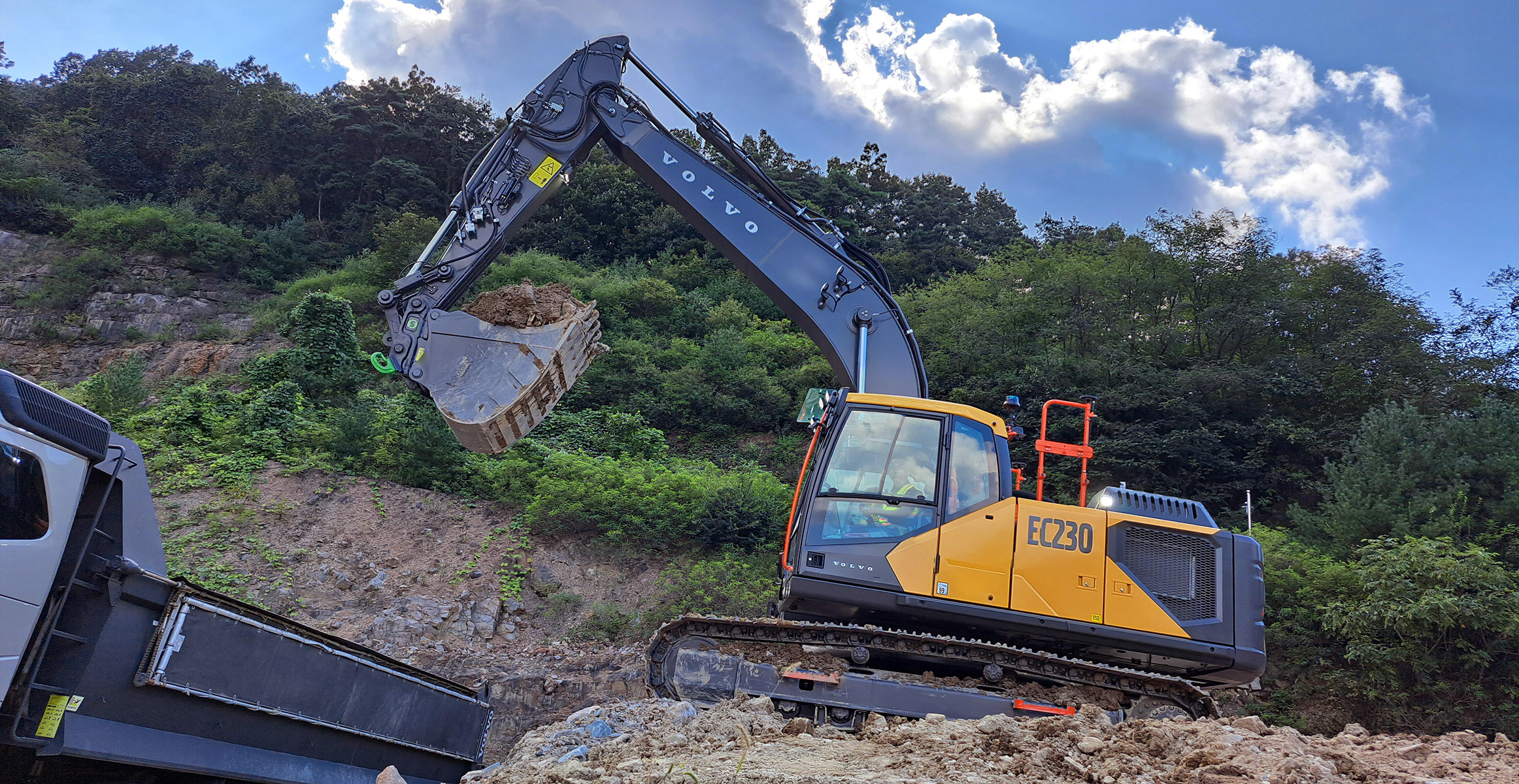

Crawler Excavators Volvo EC230F LR
Crawler Excavators Volvo EC230F LR
Crawler Excavators Volvo EC230F LR
Crawler Excavators Volvo EC230F LR
Crawler Excavators Volvo EC230F LR
Crawler Excavators Volvo EC230F LR
Crawler Excavators Volvo EC230F LR
Crawler Excavators Volvo EC230F LR

Visit Volvo live at

Technical specs - EC230F LR Volvo

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
26.145 t
Transport length
12.9 m
Transport width
3.19 m
Transport height
3.12 m
Bucket capacity min.
0.46 m³
Bucket capacity max.
1.44 m³
Track width
800 mm
Boom
MB
Max. Reach horizontal
15.805 m
Dredging depth
12.14 m
Tear-out force
125 kN
Model series
EC
Engine manuf.
Volvo
Engine type
D6J
Engine power
128 kW
Displacement
5.7 l
Revolutions at max torque
1800 rpm
Max. torque
850/1350 Nm
No. of cylinders
6
Cylinder bore x stroke
98x126 mm
Emission level
V

More technical details, like: bucket capacity, undercarriage, bucket width, dimension lxwxh are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Track adjustment
No
Blade
No
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
No
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Volvo EC230F LR FAQ

When was the Volvo EC230F LR manufactured?

The Volvo EC230F LR was first produced in 2024.

How much does the Volvo EC230F LR weigh?

The Volvo EC230F LR weighs 26.145 tons.

What are the transport dimensions of the Volvo EC230F LR crawler excavator?

The Volvo EC230F LR has a transport length of 12.9 meters, a transport width of 3.19 meters, and a transport height of 3.12 meters.

What is the track width of the Volvo EC230F LR's undercarriage?

The Volvo EC230F LR has a track width of 800 mm.

What are the excavation performance specifications of the Volvo EC230F LR?

The Volvo EC230F LR has a dredging depth of 12.14 meters, a maximum horizontal reach of 15.805 meters, and features a monobloc boom.

What is the tear-out force of the Volvo EC230F LR?

The Volvo EC230F LR has a tear-out force of 125 kN.

What are the bucket capacity specifications of the Volvo EC230F LR excavator?

The Volvo EC230F LR has a bucket capacity ranging from 0.46 to 1.44 cubic meters.

How much is a Volvo EC230F LR Crawler excavator (2024u20132025) worth?

The residual value of the Volvo EC230F LR depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
