EC230F L Volvo excavator specs & Dimensions (2024 - 2026)

Weight: 26.145t – Transport length: 9.715m – Transport width: 2.99m – Transport height: 3.12m – Bucket capacity min.: 0.46m³ – Buc…

Weight: 26.145t – Transport length: 9.715m – Transport width: 2.99m – Transport height: 3.12m – Bucket capacity min.: 0.46m³ – Bucket capacity max.: 1.44m³

Check out detailed specifications, information and technical data for Volvo EC230F L excavator manufactured between 2024 - 2026. Get more in-depth insight with Volvo EC230F L digger specifications. See information, like: Weight: 26.145t – Transport length: 9.715m – Transport width: 2.99m – Transport height: 3.12m – Bucket capacity min.: 0.46m³ – Bucket capacity max.: 1.44m³ and more.

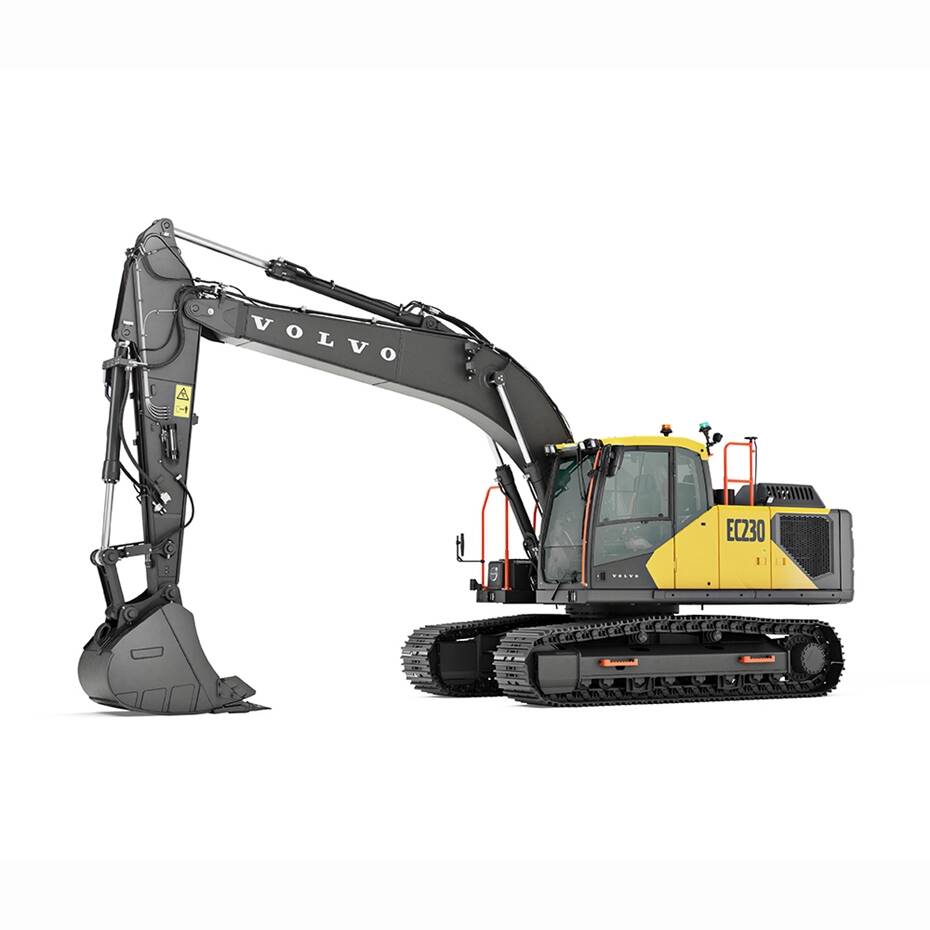

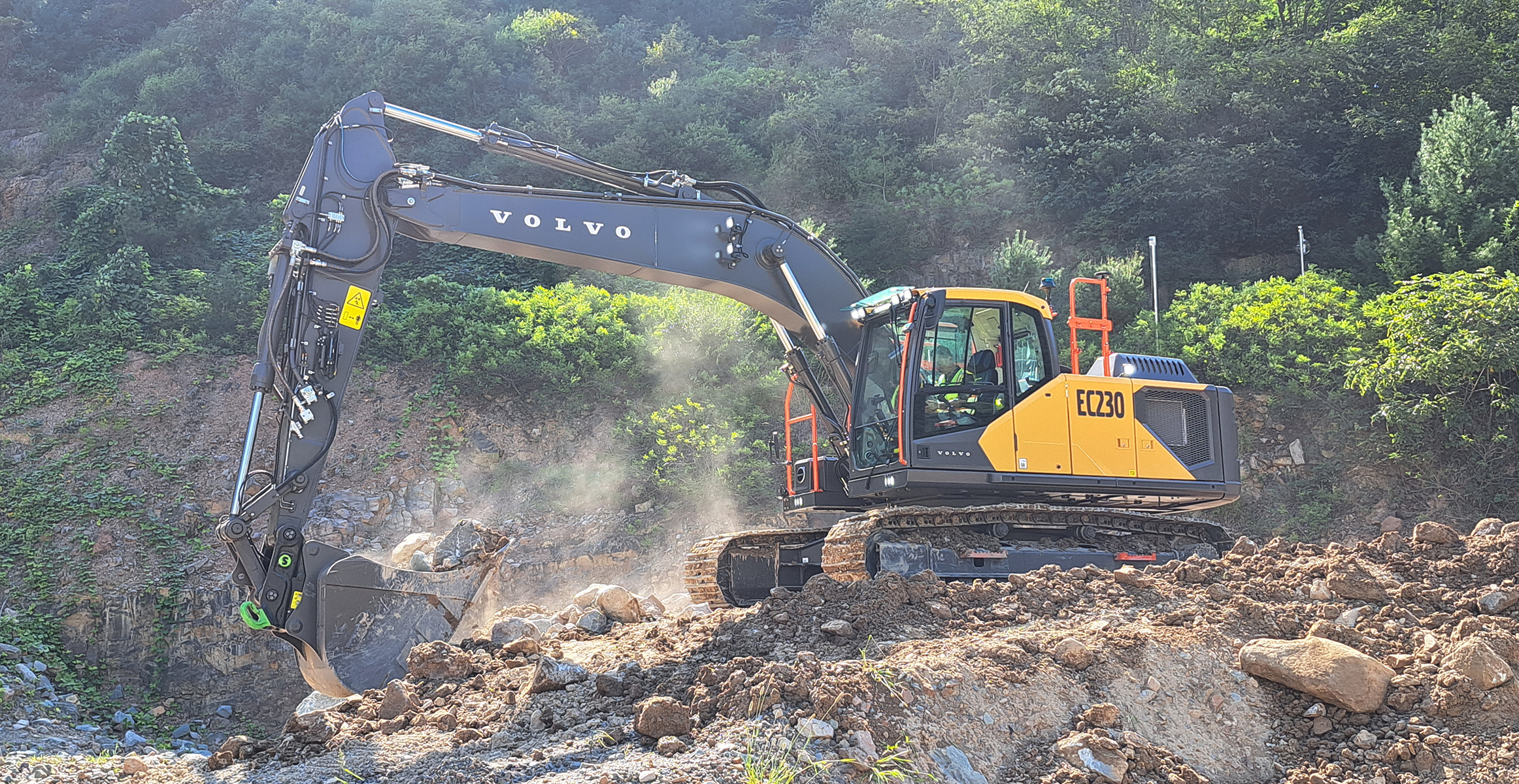

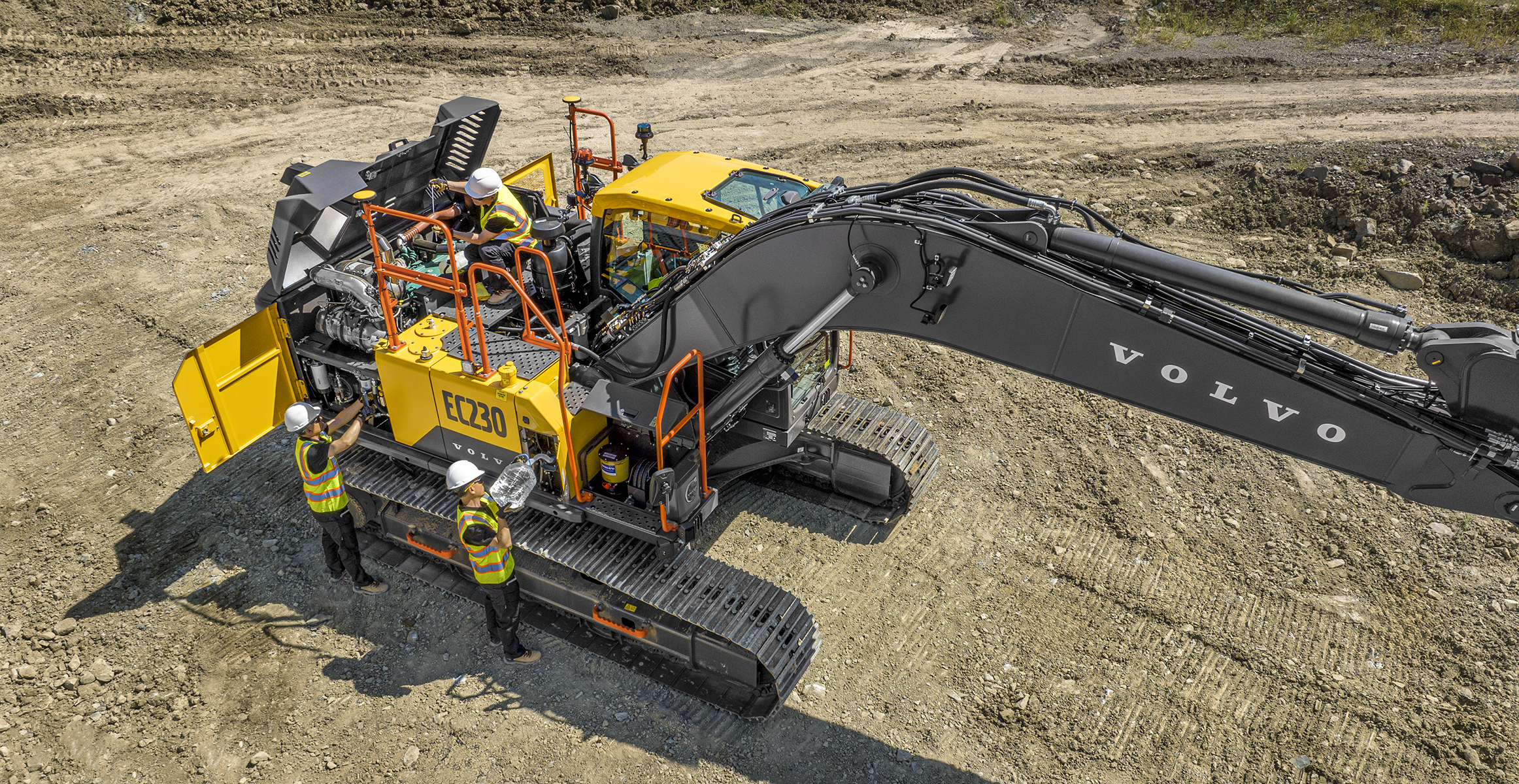

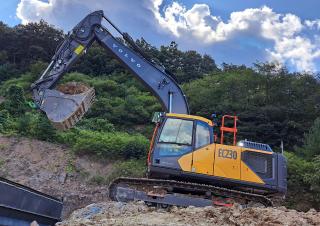

Crawler Excavators Volvo EC230F L
Crawler Excavators Volvo EC230F L
Crawler Excavators Volvo EC230F L
Crawler Excavators Volvo EC230F L
Crawler Excavators Volvo EC230F L
Crawler Excavators Volvo EC230F L
Crawler Excavators Volvo EC230F L
Crawler Excavators Volvo EC230F L

Visit Volvo live at

Technical specs - EC230F L Volvo

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
26.145 t
Transport length
9.715 m
Transport width
2.99 m
Transport height
3.12 m
Bucket capacity min.
0.46 m³
Bucket capacity max.
1.44 m³
Track width
600 mm
Boom
MB
Max. Reach horizontal
9.995 m
Dredging depth
6.825 m
Tear-out force
125 kN
Model series
EC
Engine manuf.
Volvo
Engine type
D6J
Engine power
128 kW
Displacement
5.7 l
Revolutions at max torque
1800 rpm
Max. torque
850/1350 Nm
No. of cylinders
6
Cylinder bore x stroke
98x126 mm
Emission level
V

More technical details, like: bucket capacity, undercarriage, bucket width, dimension lxwxh are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Track adjustment
No
Blade
No
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
No
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Volvo EC230F L FAQ

When was the Volvo EC230F L manufactured?

The Volvo EC230F L was first produced in 2024.

How much does the Volvo EC230F L weigh?

The Volvo EC230F L weighs 26.145 tons.

What are the transport dimensions of the Volvo EC230F L crawler excavator?

The Volvo EC230F L has a transport length of 9.715 meters, a transport width of 2.99 meters, and a transport height of 3.12 meters.

What is the track width of the Volvo EC230F L's undercarriage?

The Volvo EC230F L has a track width of 600 mm.

What are the excavation performance specifications of the Volvo EC230F L?

The Volvo EC230F L has a dredging depth of 6.825 meters, a maximum horizontal reach of 9.995 meters, and is equipped with a monobloc boom.

What is the tear-out force of the Volvo EC230F L?

The Volvo EC230F L has a tear-out force of 125 kN.

What are the bucket capacity specifications of the Volvo EC230F L?

The Volvo EC230F L has a bucket capacity ranging from 0.46 to 1.44 cubic meters.

How much is a Volvo EC230F L Crawler excavator (2024u20132025) worth?

The residual value of the Volvo EC230F L depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
