EC220EN Volvo excavator specs & Dimensions (2016 - 2018)

Volvo EC220EN is a Crawler Excavator manufactured from 2016 to 2018. It has a weight of 21.28 tons and a track width of 600 mm. Th…

Volvo EC220EN is a Crawler Excavator manufactured from 2016 to 2018. It has a weight of 21.28 tons and a track width of 600 mm. The transport dimensions are 9.795 meters in length, 2.8 meters in width, and 2.955 meters in height. The machine features a tear-out force of 146 kN, a dredging depth of 5.83 meters, and a maximum horizontal reach of 9.09 meters. The bucket width is 1.35 meters with a capacity of 0.127 cubic meters. Special equipment includes air conditioning and a diesel particulate filter.

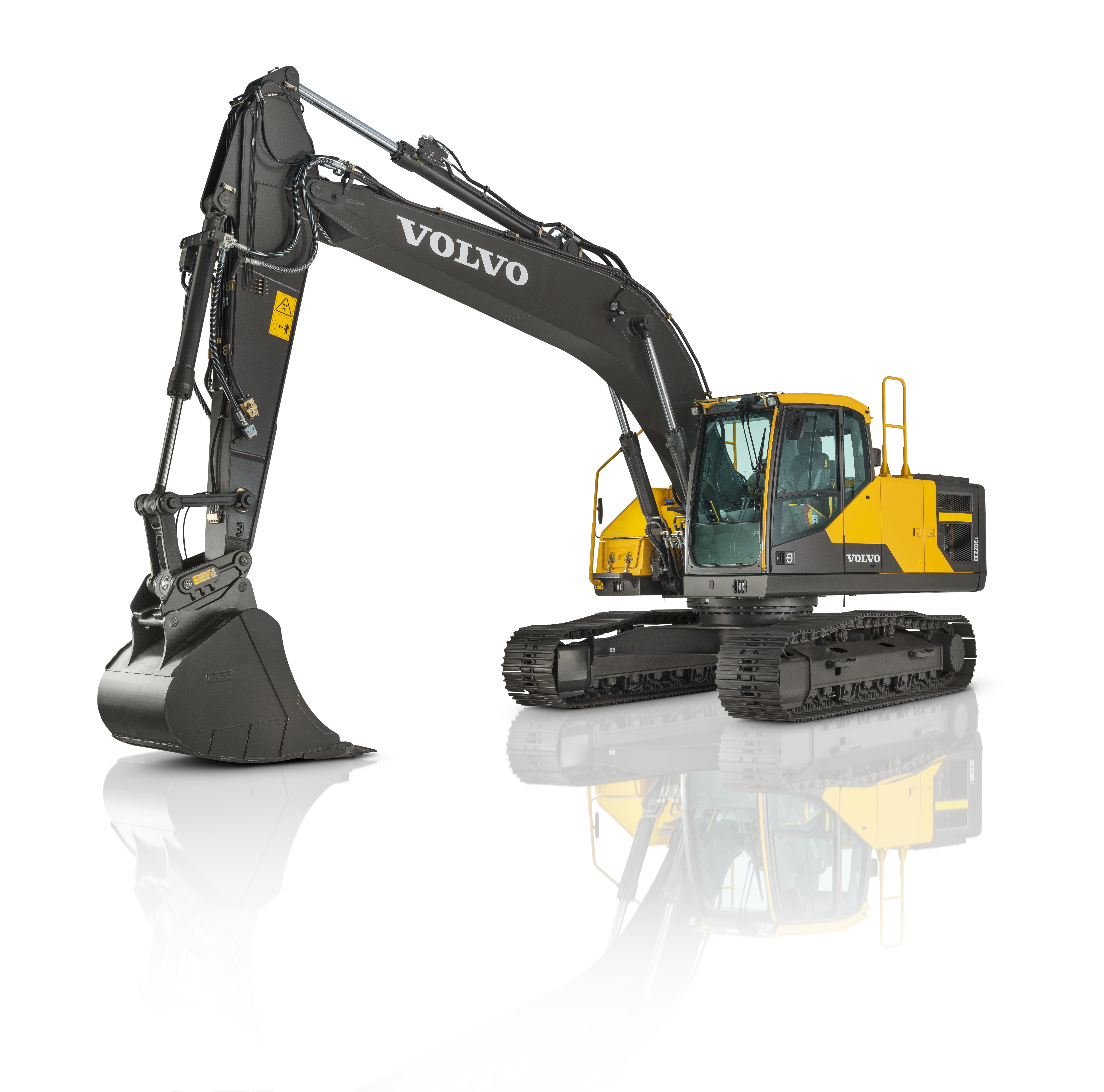

Crawler Excavators Volvo EC220EN
Crawler Excavators Volvo EC220EN
Crawler Excavators Volvo EC220EN
Crawler Excavators Volvo EC220EN

Visit Volvo live at

Technical specs - EC220EN Volvo

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
21.28 t
Transport length
9.795 m
Transport width
2.8 m
Transport height
2.955 m
Bucket capacity
0.127 m³
Track width
600 mm
Boom
MB
Max. Reach horizontal
9.09 m
Dredging depth
5.83 m
Tear-out force
146 kN
Bucket width
1.35 m
Model series
EC
Engine manuf.
Volvo
Engine type
D6J
Engine power
129 kW
Displacement
5.7 l
Revolutions at max torque
1800 rpm
Max. torque
850/1350 Nm
No. of cylinders
6
Cylinder bore x stroke
98/126 mm
Emission level
4/Tier 4 f

More technical details, like: bucket capacity min., bucket capacity max., undercarriage, dimension lxwxh are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
Yes
Track adjustment
No
Blade
No
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
No
Aircondition
Yes
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Volvo EC220EN FAQ

When was the Volvo EC220EN manufactured?

The Volvo EC220EN was manufactured from 2016 to 2018.

How much does the Volvo EC220EN weigh?

The Volvo EC220EN weighs 21.28 tons.

What are the transport dimensions of the Volvo EC220EN?

The Volvo EC220EN has a transport length of 9.8 meters, a transport width of 2.8 meters, and a transport height of 2.96 meters.

What is the fuel consumption range of the Volvo EC220EN crawler excavator?

The Volvo EC220EN crawler excavator has a fuel consumption range of 10 to 20 liters per hour.

What is the track width of the Volvo EC220EN crawler excavator?

The Volvo EC220EN crawler excavator has a track width of 600 mm.

What are the excavation performance specifications of the Volvo EC220EN?

The Volvo EC220EN has a dredging depth of 5.83 meters, a maximum horizontal reach of 9.09 meters, and is equipped with a monobloc boom.

What power ratings are available for the Volvo EC220EN?

The source data does not provide any power ratings for the Volvo EC220EN.

What are the specifications of the bucket on the Volvo EC220EN?

The bucket of the Volvo EC220EN has a capacity of 0.127 cubic meters and a width of 1.35 meters.

How much is a Volvo EC220EN Crawler excavator (2016u20132018) worth?

The residual value of the Volvo EC220EN depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
