EC210F NL Volvo excavator specs & Dimensions (2025 - 2026)

Weight: 22.11t – Transport length: 9.715m – Transport width: 2.54m – Transport height: 3.12m – Bucket capacity min.: 0.48m³ – Buck…

Weight: 22.11t – Transport length: 9.715m – Transport width: 2.54m – Transport height: 3.12m – Bucket capacity min.: 0.48m³ – Bucket capacity max.: 1.44m³

Check out detailed specifications, information and technical data for Volvo EC210F NL excavator manufactured between 2025 - 2026. Get more in-depth insight with Volvo EC210F NL digger specifications. See information, like: Weight: 22.11t – Transport length: 9.715m – Transport width: 2.54m – Transport height: 3.12m – Bucket capacity min.: 0.48m³ – Bucket capacity max.: 1.44m³ and more.

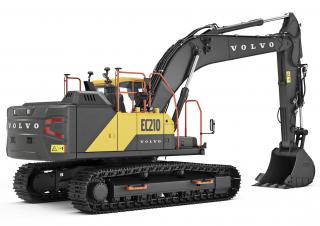

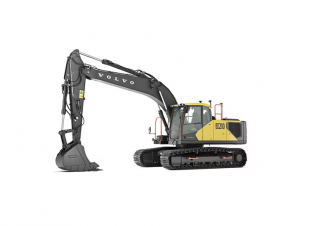

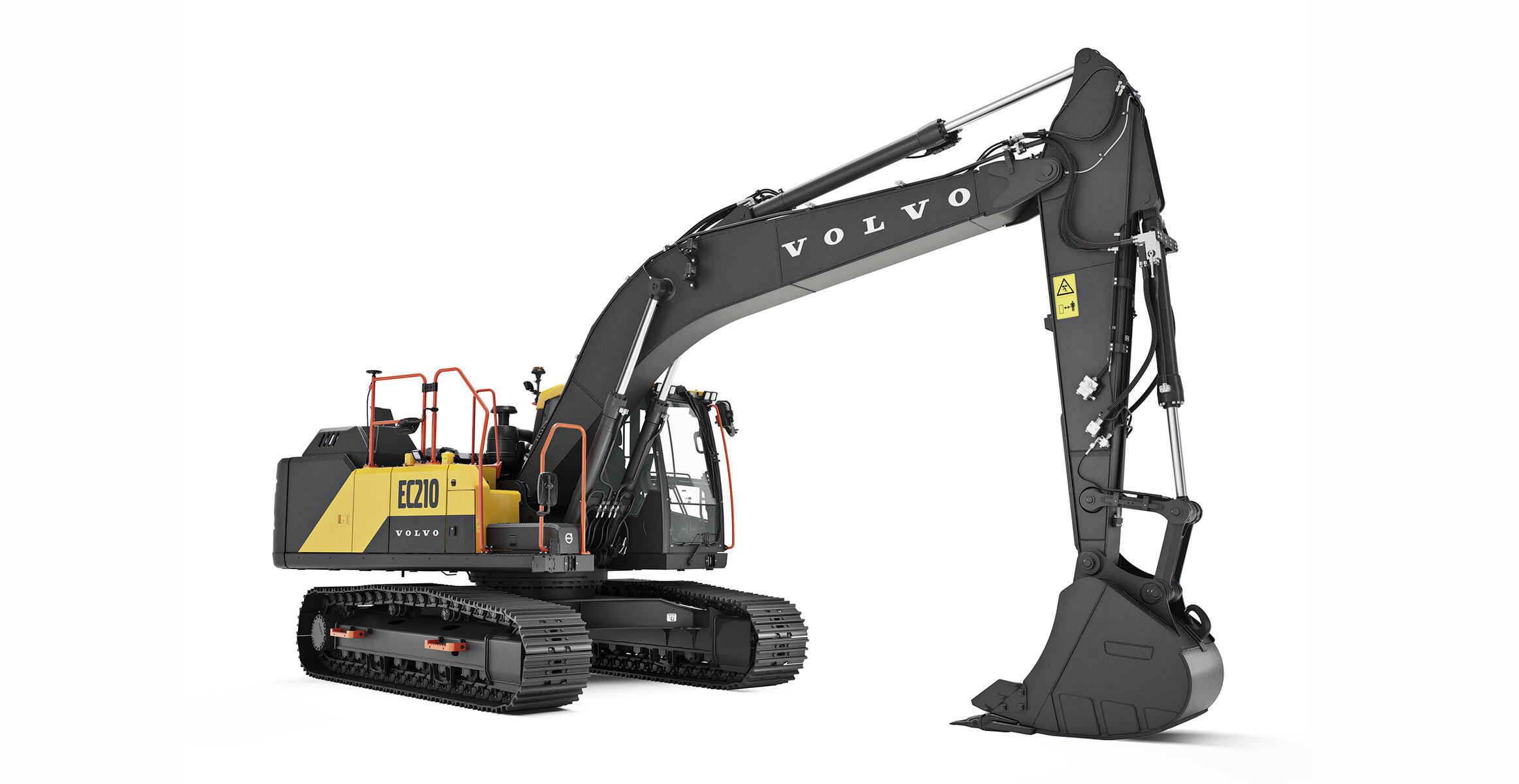

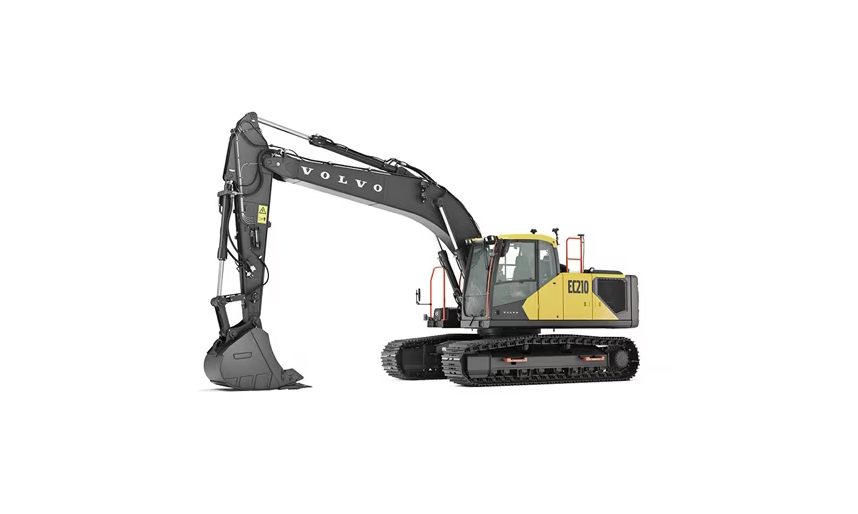

Crawler Excavators Volvo EC210F NL
Crawler Excavators Volvo EC210F NL
Crawler Excavators Volvo EC210F NL
Crawler Excavators Volvo EC210F NL
Crawler Excavators Volvo EC210F NL
Crawler Excavators Volvo EC210F NL
Crawler Excavators Volvo EC210F NL
Crawler Excavators Volvo EC210F NL

Visit Volvo live at

Technical specs - EC210F NL Volvo

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
22.11 t
Transport length
9.715 m
Transport width
2.54 m
Transport height
3.12 m
Bucket capacity min.
0.48 m³
Bucket capacity max.
1.44 m³
Track width
600 mm
Boom
MB
Max. Reach horizontal
9.995 m
Dredging depth
6.825 m
Tear-out force
125 kN
Model series
EC
Engine manuf.
Volvo
Engine type
D4J
Engine power
115 kW
Displacement
4.04 l
Revolutions at max torque
2000 rpm
Max. torque
618/1700 Nm
No. of cylinders
4
Cylinder bore x stroke
101x126 mm
Emission level
V

More technical details, like: bucket capacity, undercarriage, bucket width, dimension lxwxh are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Track adjustment
Yes
Blade
No
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
No
Aircondition
Yes
Quick hitch hydr.
No
Quick hitch mech.
No
