EC210D Volvo excavator specs & Dimensions (2019 - 2026)

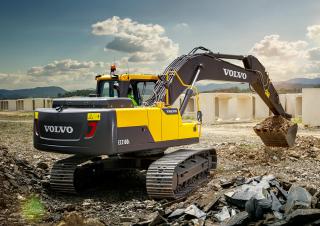

Volvo EC210D is a Crawler Excavator manufactured since 2019, with a weight of 22.8 tons. It features a track width of 600 mm, a tr…

Volvo EC210D is a Crawler Excavator manufactured since 2019, with a weight of 22.8 tons. It features a track width of 600 mm, a transport length of 9.74 meters, a transport width of 2.8 meters, and a transport height of 3.1 meters. The machine has a tear-out force of 96 kN, a dredging depth of 6.73 meters, a maximum horizontal reach of 9.93 meters, and a bucket capacity of 1.22 cubic meters.

Crawler Excavators Volvo EC210D

Visit Volvo live at

Technical specs - EC210D Volvo

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
22.8 t
Transport length
9.74 m
Transport width
2.8 m
Transport height
3.1 m
Bucket capacity
1.22 m³
Track width
600 mm
Max. Reach horizontal
9.93 m
Dredging depth
6.73 m
Tear-out force
96 kN
Model series
EC
Engine manuf.
Volvo
Engine type
D5E
Engine power
115 kW
Displacement
4.7 l
Revolutions at max torque
2000 rpm
Max. torque
670x700 Nm
No. of cylinders
4
Cylinder bore x stroke
108x130 mm

More technical details, like: bucket capacity min., bucket capacity max., undercarriage, boom, bucket width, dimension lxwxh, emission level are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Track adjustment
No
Blade
No
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
No
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Volvo EC210D FAQ

When was the Volvo EC210D manufactured?

The Volvo EC210D was first produced in 2019.

How much does the Volvo EC210D weigh?

The Volvo EC210D weighs 22.8 tons.

What are the transport dimensions of the Volvo EC210D crawler excavator?

The Volvo EC210D has a transport length of 9.74 meters, a transport width of 2.8 meters, and a transport height of 3.1 meters.

What is the track width of the Volvo EC210D's undercarriage?

The Volvo EC210D has a track width of 600 mm.

What are the dredging depth and maximum horizontal reach of the Volvo EC210D?

The Volvo EC210D has a dredging depth of 6.73 meters and a maximum horizontal reach of 9.93 meters.

What is the tear-out force of the Volvo EC210D?

The Volvo EC210D has a tear-out force of 96 kN.

What is the bucket capacity of the Volvo EC210D crawler excavator?

The bucket capacity of the Volvo EC210D is 1.22 cubic meters.

How much is a Volvo EC210D Crawler excavator (2019u20132025) worth?

The residual value of the Volvo EC210D depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
