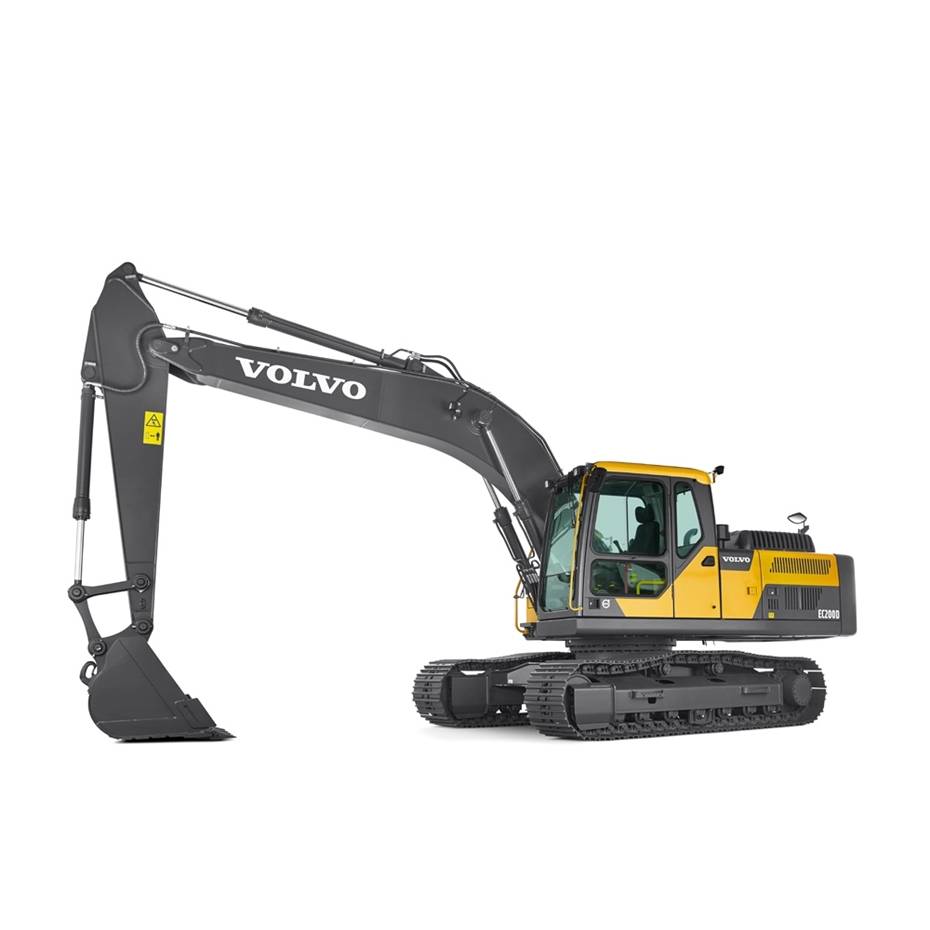

EC200D Volvo excavator specs & Dimensions (2019 - 2026)

Volvo EC200D is a Crawler Excavator manufactured since 2019, with a weight of 20.3 tons. It features a track width of 600 mm, a tr…

Volvo EC200D is a Crawler Excavator manufactured since 2019, with a weight of 20.3 tons. It features a track width of 600 mm, a transport length of 9.5 meters, a transport width of 2.8 meters, and a transport height of 2.9 meters. The machine has a tear-out force of 90 kN, a dredging depth of 6.68 meters, a maximum horizontal reach of 9.84 meters, and a bucket capacity of 0.8 cubic meters.

Crawler Excavators Volvo EC200D

Visit Volvo live at

Technical specs - EC200D Volvo

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
20.3 t
Transport length
9.5 m
Transport width
2.8 m
Transport height
2.9 m
Bucket capacity
0.8 m³
Track width
600 mm
Max. Reach horizontal
9.84 m
Dredging depth
6.68 m
Tear-out force
90 kN
Model series
EC
Engine manuf.
Volvo
Engine type
D5E
Engine power
115 kW
Displacement
4.7 l
Revolutions at max torque
2000 rpm
Max. torque
670x700 Nm
No. of cylinders
4
Cylinder bore x stroke
108x130 mm

More technical details, like: bucket capacity min., bucket capacity max., undercarriage, boom, bucket width, dimension lxwxh, emission level are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Track adjustment
No
Blade
No
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
No
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Volvo EC200D FAQ

When was the Volvo EC200D manufactured?

The Volvo EC200D was first produced in 2019.

How much does the Volvo EC200D weigh?

The Volvo EC200D weighs 20.3 tons.

What are the transport dimensions of the Volvo EC200D?

The Volvo EC200D has a transport length of 9.5 meters, a transport width of 2.8 meters, and a transport height of 2.9 meters.

What is the fuel consumption range of the Volvo EC200D?

The Volvo EC200D has a fuel consumption range of 10 to 20 liters per hour.

What is the track width of the Volvo EC200D's undercarriage?

The Volvo EC200D has a track width of 600 mm.

What are the dredging depth and maximum horizontal reach of the Volvo EC200D?

The Volvo EC200D has a dredging depth of 6.68 meters and a maximum horizontal reach of 9.84 meters.

What is the tear-out force of the Volvo EC200D, given that no power ratings are provided?

The Volvo EC200D has a tear-out force of 90 kN.

What is the bucket capacity of the Volvo EC200D's primary work tool?

The primary work tool of the Volvo EC200D has a bucket capacity of 0.8 cubic meters.

How much is a Volvo EC200D Crawler excavator (2019u20132025) worth?

The residual value of the Volvo EC200D depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
