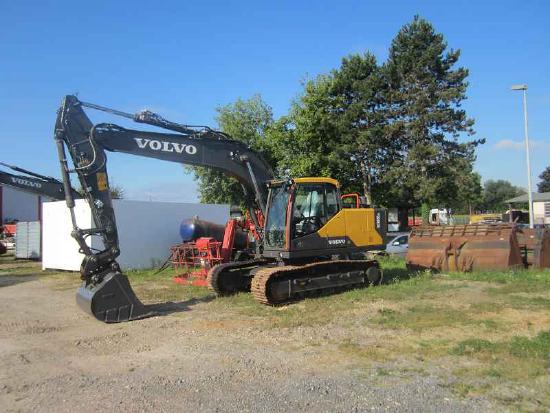

EC160ENL Volvo excavator specs & Dimensions (2021 - 2023)

Volvo EC160ENL is a Crawler Excavator manufactured since 2021, with a weight of 17.63 tons. It features a track width of 600 mm, a…

Volvo EC160ENL is a Crawler Excavator manufactured since 2021, with a weight of 17.63 tons. It features a track width of 600 mm, a transport length of 8.81 meters, a transport width of 2.59 meters, and a transport height of 2.9 meters. The excavator has a tear-out force of 90 kN, a dredging depth of 5.77 meters, and a maximum horizontal reach of 8.66 meters. The bucket width is 1.35 meters, with a capacity ranging from 0.3 m³ to 0.96 m³. Special equipment includes air conditioning, a diesel particulate filter, a hydraulic quick hitch, and track adjustment.

Crawler Excavators Volvo EC160ENL
Crawler Excavators Volvo EC160ENL
Crawler Excavators Volvo EC160ENL
Crawler Excavators Volvo EC160ENL

Visit Volvo live at

Technical specs - EC160ENL Volvo

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
17.63 t
Transport length
8.81 m
Transport width
2.59 m
Transport height
2.9 m
Bucket capacity
0.96 m³
Bucket capacity min.
0.3 m³
Bucket capacity max.
0.96 m³
Track width
600 mm
Boom
MB
Max. Reach horizontal
8.66 m
Dredging depth
5.77 m
Tear-out force
90 kN
Bucket width
1.35 m
Model series
EC
Engine manuf.
Volvo
Engine type
D4J
Engine power
109 kW
Displacement
4.04 l
Revolutions at max torque
1600 rpm
Max. torque
609 Nm
No. of cylinders
4
Cylinder bore x stroke
101x126 mm
Emission level
Stage V

More technical details, like: undercarriage, dimension lxwxh are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
Yes
Track adjustment
Yes
Blade
No
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
No
Aircondition
Yes
Quick hitch hydr.
Yes
Quick hitch mech.
No

Download datasheets (PDF)

Volvo EC160ENL FAQ

When was the Volvo EC160ENL manufactured?

The Volvo EC160ENL was manufactured from 2021 to 2023.

How much does the Volvo EC160ENL weigh?

The Volvo EC160ENL weighs 17.63 tons.

What are the transport dimensions of the Volvo EC160ENL crawler excavator?

The Volvo EC160ENL has a transport length of 8.81 meters, a transport width of 2.59 meters, and a transport height of 2.9 meters.

What is the track width of the Volvo EC160ENL's undercarriage?

The Volvo EC160ENL has a track width of 600 mm.

What are the excavation performance specifications of the Volvo EC160ENL?

The Volvo EC160ENL has a dredging depth of 5.77 meters, a maximum horizontal reach of 8.66 meters, and features a Monobloc boom.

What power ratings are available for the Volvo EC160ENL?

The source data does not provide any power ratings for the Volvo EC160ENL.

What are the specifications of the bucket on the Volvo EC160ENL crawler excavator?

The bucket of the Volvo EC160ENL has a capacity of 0.96 cubic meters, a maximum capacity of 0.96 cubic meters, a minimum capacity of 0.3 cubic meters, and a width of 1.35 meters.

How much is a Volvo EC160ENL Crawler excavator (2021u20132023) worth?

The residual value of the Volvo EC160ENL depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
