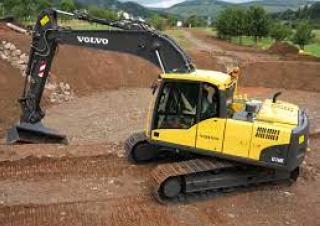

EC160C Volvo excavator specs & Dimensions (2007 - 2011)

Volvo EC160C is a Crawler Excavator manufactured from 2007 to 2011, with a weight of 19.1 tons. It features a track width of 500 m…

Volvo EC160C is a Crawler Excavator manufactured from 2007 to 2011, with a weight of 19.1 tons. It features a track width of 500 mm, a transport length of 8.78 meters, a transport width of 2.8 meters, and a transport height of 3.02 meters. The machine has a tear-out force of 92.6 kN, a dredging depth of 6.44 meters, a maximum horizontal reach of 9.18 meters, and a bucket capacity of 0.9 cubic meters.

Crawler Excavators Volvo EC160C

Visit Volvo live at

Technical specs - EC160C Volvo

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
19.1 t
Transport length
8.78 m
Transport width
2.8 m
Transport height
3.02 m
Bucket capacity
0.9 m³
Track width
500 mm
Max. Reach horizontal
9.18 m
Dredging depth
6.44 m
Tear-out force
92.6 kN
Engine manuf.
Volvo
Engine type
D6E EBE3
Engine power
98 kW
Displacement
5.7 l
Revolutions at max torque
1800 rpm
Max. torque
625 Nm
No. of cylinders
6
Cylinder bore x stroke
98x126 mm

More technical details, like: bucket capacity min., bucket capacity max., undercarriage, boom, bucket width, model series, dimension lxwxh, emission level are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Track adjustment
No
Blade
No
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
No
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Volvo EC160C FAQ

When was the Volvo EC160C manufactured?

The Volvo EC160C was manufactured from 2007 to 2011.

How much does the Volvo EC160C weigh?

The Volvo EC160C weighs 19.1 tons.

What are the transport dimensions of the Volvo EC160C crawler excavator?

The Volvo EC160C has a transport length of 8.78 meters, a transport width of 2.8 meters, and a transport height of 3.02 meters.

What is the track width of the Volvo EC160C's undercarriage?

The Volvo EC160C has a track width of 500 mm.

What are the excavation performance specifications of the Volvo EC160C?

The Volvo EC160C has a dredging depth of 6.44 meters and a maximum horizontal reach of 9.18 meters.

What is the tear-out force of the Volvo EC160C?

The Volvo EC160C has a tear-out force of 92.6 kN.

What is the bucket capacity of the Volvo EC160C excavator?

The bucket capacity of the Volvo EC160C excavator is 0.9 cubic meters.

How much is a Volvo EC160C Crawler excavator (2007u20132011) worth?

The residual value of the Volvo EC160C depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
