TC 85 Terex excavator specs & Dimensions (2015 - 2016)

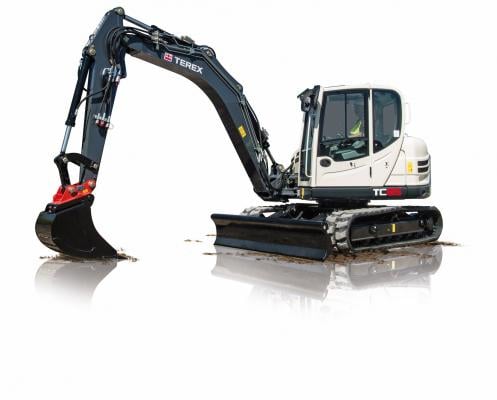

Terex TC 85 is a Crawler Excavator manufactured from 2015 to 2016. It has a weight of 8.6 tons and a track width of 450 mm. The tr…

Terex TC 85 is a Crawler Excavator manufactured from 2015 to 2016. It has a weight of 8.6 tons and a track width of 450 mm. The transport dimensions are 6.6 meters in length, 2.33 meters in width, and 2.63 meters in height. The excavator features a tear-out force of 47.3 kN, a dredging depth of 3.91 meters, and a maximum horizontal reach of 7.72 meters. The bucket width is 0.6 meters, with a capacity ranging from 0.087 m³ to 0.305 m³. Special equipment includes a blade and a mechanical quick hitch.

Crawler Excavators Terex TC 85

Technical specs - TC 85 Terex

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
8.6 t
Transport length
6.6 m
Transport width
2.33 m
Transport height
2.63 m
Bucket capacity
0.305 m³
Bucket capacity min.
0.087 m³
Bucket capacity max.
0.305 m³
Undercarriage
SL
Track width
450 mm
Boom
VA
Max. Reach horizontal
7.72 m
Dredging depth
3.91 m
Tear-out force
47.3 kN
Bucket width
0.6 m
Model series
TC
Engine manuf.
Deutz
Engine type
TCD2.9 L4
Engine power
55.4 kW
Revolutions at max torque
2600 rpm
Max. torque
300/1600 Nm
No. of cylinders
4
Emission level
Tier 4 f

More technical details, like: dimension lxwxh, displacement, cylinder bore x stroke are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Track adjustment
No
Blade
Yes
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
No
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
Yes

Download datasheets (PDF)

Terex TC 85 FAQ

When was the Terex TC 85 manufactured?

The Terex TC 85 was manufactured from 2015 to 2016.

How much does the Terex TC 85 weigh?

The Terex TC 85 weighs 8.6 tons.

What are the transport dimensions of the Terex TC 85 crawler excavator?

The Terex TC 85 has a transport length of 6.6 meters, a transport width of 2.33 meters, and a transport height of 2.63 meters.

What are the undercarriage specifications of the Terex TC 85?

The Terex TC 85 has a standard undercarriage with a track width of 450 mm.

What are the excavation performance specifications of the Terex TC 85?

The Terex TC 85 has a dredging depth of 3.91 meters, a maximum horizontal reach of 7.72 meters, and features an adjustable boom.

What is the tear-out force of the Terex TC 85?

The Terex TC 85 has a tear-out force of 47.3 kN.

What are the bucket specifications of the Terex TC 85 crawler excavator?

The Terex TC 85 crawler excavator has a bucket capacity of 0.305 mu00b3, with a maximum capacity of 0.31 mu00b3, a minimum capacity of 0.09 mu00b3, and a bucket width of 0.6 meters.
