TC 75 Terex excavator specs & Dimensions (2006 - 2013)

Model rating
10,00 / 10

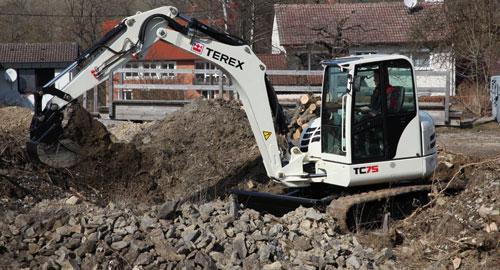

Terex TC 75 is a crawler excavator manufactured from 2006 to 2013. It has a weight of 7.5 tons and a track width of 450 mm. The tr…

Terex TC 75 is a crawler excavator manufactured from 2006 to 2013. It has a weight of 7.5 tons and a track width of 450 mm. The transport dimensions are 5.9 meters in length, 2.33 meters in width, and 2.72 meters in height. The maximum horizontal reach is 8 meters, and the bucket capacity is 0.303 cubic meters. Special equipment includes cabin adjustment and an overload alert system.

Crawler Excavators Terex TC 75
Crawler Excavators Terex TC 75
Crawler Excavators Terex TC 75
Crawler Excavators Terex TC 75

Technical specs - TC 75 Terex

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
7.5 t
Transport length
5.9 m
Transport width
2.33 m
Transport height
2.72 m
Bucket capacity
0.303 m³
Undercarriage
SL
Track width
450 mm
Boom
VA
Max. Reach horizontal
8 m
Dredging depth
3.92 m
Tear-out force
47.3 kN
Bucket width
0.8 m
Model series
TC
Engine manuf.
Deutz
Engine type
BF4M2011
Engine power
54 kW
Displacement
3.1 l
Revolutions at max torque
2200 rpm

More technical details, like: bucket capacity min., bucket capacity max., dimension lxwxh, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Track adjustment
No
Blade
No
Cabin adjustment
Yes
Overload alert
Yes
Material Handling Excavator
No
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Terex TC 75 FAQ

When was the Terex TC 75 manufactured?

The Terex TC 75 was manufactured from 2006 to 2013.

How much does the Terex TC 75 weigh?

The Terex TC 75 weighs 7.5 tons.

What are the transport dimensions of the Terex TC 75 crawler excavator?

The Terex TC 75 has a transport length of 5.9 meters, a transport width of 2.33 meters, and a transport height of 2.72 meters.

What are the undercarriage specifications of the Terex TC 75?

The Terex TC 75 has a standard undercarriage with a track width of 450 mm.

What are the excavation performance specifications of the Terex TC 75?

The Terex TC 75 has a dredging depth of 3.92 meters, a maximum horizontal reach of 8 meters, and features an adjustable boom.

What is the tear-out force of the Terex TC 75?

The Terex TC 75 has a tear-out force of 47.3 kN. The source data does not provide power ratings for this machine.

What are the specifications of the primary work tool on the Terex TC 75?

The primary work tool of the Terex TC 75 has a bucket capacity of 0.303 cubic meters and a bucket width of 0.8 meters.

How much is a Terex TC 75 Crawler excavator (2006u20132013) worth?

The residual value of the Terex TC 75 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
