TB 370 CV Takeuchi excavator specs & Dimensions (2020 - 2026)

Takeuchi TB 370 CV is a crawler excavator manufactured since 2020. It has a weight of 7 tons and a track width of 400 mm. The tran…

Takeuchi TB 370 CV is a crawler excavator manufactured since 2020. It has a weight of 7 tons and a track width of 400 mm. The transport dimensions are 6.07 meters in length, 2.1 meters in width, and 2.595 meters in height. The dredging depth is 4.1 meters, and the maximum horizontal reach is 6.9 meters. The bucket capacity is 0.18 cubic meters. Special equipment includes a blade, a diesel particulate filter, and an overload alert system.

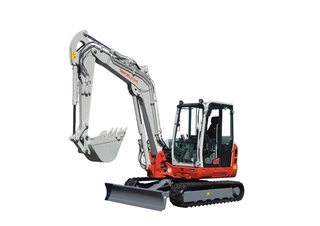

Crawler Excavators Takeuchi TB 370 CV
Crawler Excavators Takeuchi TB 370 CV
Crawler Excavators Takeuchi TB 370 CV
Crawler Excavators Takeuchi TB 370 CV
Crawler Excavators Takeuchi TB 370 CV
Crawler Excavators Takeuchi TB 370 CV
Crawler Excavators Takeuchi TB 370 CV
Crawler Excavators Takeuchi TB 370 CV
Crawler Excavators Takeuchi TB 370 CV
Crawler Excavators Takeuchi TB 370 CV

Technical specs - TB 370 CV Takeuchi

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
7 t
Transport length
6.07 m
Transport width
2.1 m
Transport height
2.595 m
Bucket capacity
0.18 m³
Track width
400 mm
Boom
VA
Max. Reach horizontal
6.785 m
Dredging depth
4.11 m
Tear-out force
48.4 kN
Model series
TB
Engine manuf.
Kubota
Engine type
V2607-CR-TE5B
Engine power
42.4 kW
Displacement
2.6 l
Revolutions at max torque
2000 rpm
Max. torque
213.4 Nm
No. of cylinders
4
Emission level
EU V / EPA Tier 4 C

More technical details, like: bucket capacity min., bucket capacity max., undercarriage, bucket width, dimension lxwxh, cylinder bore x stroke are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
Yes
Track adjustment
No
Blade
Yes
Cabin adjustment
No
Overload alert
Yes
Material Handling Excavator
No
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Takeuchi TB 370 CV FAQ

When was the Takeuchi TB 370 CV manufactured?

The Takeuchi TB 370 CV was first produced in 2020.

How much does the Takeuchi TB 370 CV weigh?

The Takeuchi TB 370 CV weighs 7 tons.

What are the transport dimensions of the Takeuchi TB 370 CV?

The Takeuchi TB 370 CV has a transport length of 6.07 meters, a transport width of 2.1 meters, and a transport height of 2.6 meters.

What is the track width of the Takeuchi TB 370 CV's undercarriage?

The Takeuchi TB 370 CV has a track width of 400 mm.

What are the excavation performance specifications of the Takeuchi TB 370 CV?

The Takeuchi TB 370 CV has a dredging depth of 4.11 meters, a maximum horizontal reach of 6.785 meters, and features an adjustable boom.

What are the power ratings of the Takeuchi TB 370 CV?

No power rating data is available for the Takeuchi TB 370 CV in the provided information.

What is the bucket capacity of the Takeuchi TB 370 CV excavator?

The bucket capacity of the Takeuchi TB 370 CV excavator is 0.18 cubic meters.

How much is a Takeuchi TB 370 CV Crawler excavator (2020u20132025) worth?

The residual value of the Takeuchi TB 370 CV depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
