TB 280 FR Takeuchi excavator specs & Dimensions (2024 - 2026)

Weight: 8.5t – Transport length: 6.285m – Transport width: 2.3m – Transport height: 2.725m – Bucket capacity: 0.245m³ – Track widt…

Weight: 8.5t – Transport length: 6.285m – Transport width: 2.3m – Transport height: 2.725m – Bucket capacity: 0.245m³ – Track width: 450mm

Check out detailed specifications, information and technical data for Takeuchi TB 280 FR excavator manufactured between 2024 - 2026. Get more in-depth insight with Takeuchi TB 280 FR digger specifications. See information, like: Weight: 8.5t – Transport length: 6.285m – Transport width: 2.3m – Transport height: 2.725m – Bucket capacity: 0.245m³ – Track width: 450mm and more.

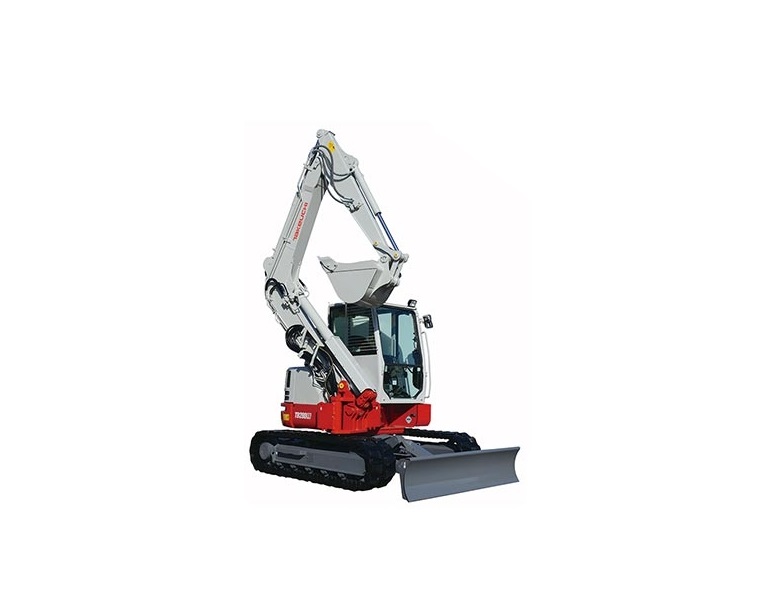

Crawler Excavators Takeuchi TB 280 FR

Technical specs - TB 280 FR Takeuchi

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
8.5 t
Transport length
6.285 m
Transport width
2.3 m
Transport height
2.725 m
Bucket capacity
0.245 m³
Track width
450 mm
Boom
MB
Max. Reach horizontal
7.045 m
Dredging depth
4.54 m
Tear-out force
46.7 kN
Model series
TB
Engine manuf.
Yanmar
Engine type
4TNV98CT
Engine power
51.6 kW
Displacement
3.318 l
Revolutions at max torque
2000 rpm
Max. torque
308/1300 Nm
Emission level
Tier 4 / V

More technical details, like: bucket capacity min., bucket capacity max., undercarriage, bucket width, dimension lxwxh, no. of cylinders, cylinder bore x stroke are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Track adjustment
No
Blade
Yes
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
No
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Takeuchi TB 280 FR FAQ

When was the Takeuchi TB 280 FR manufactured?

The Takeuchi TB 280 FR was first produced in 2024.

How much does the Takeuchi TB 280 FR weigh?

The Takeuchi TB 280 FR weighs 8.5 tons.

What are the transport dimensions of the Takeuchi TB 280 FR?

The Takeuchi TB 280 FR has a transport length of 6.285 meters, a transport width of 2.3 meters, and a transport height of 2.725 meters.

What is the track width of the Takeuchi TB 280 FR's undercarriage?

The Takeuchi TB 280 FR has a track width of 450 mm.

What are the excavation performance specifications of the Takeuchi TB 280 FR?

The Takeuchi TB 280 FR has a dredging depth of 4.54 meters, a maximum horizontal reach of 7.045 meters, and features a monobloc boom.

What is the tear-out force of the Takeuchi TB 280 FR?

The Takeuchi TB 280 FR has a tear-out force of 46.7 kN.

What is the bucket capacity of the Takeuchi TB 280 FR?

The Takeuchi TB 280 FR has a bucket capacity of 0.245 cubic meters.

How much is a Takeuchi TB 280 FR Crawler excavator (2024u20132025) worth?

The residual value of the Takeuchi TB 280 FR depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
