TB 2150 C Takeuchi excavator specs & Dimensions (2017 - 2023)

Takeuchi TB 2150 C is a Crawler Excavator manufactured since 2017. It has a weight of 15 tons and a track width of 500 mm. The tra…

Takeuchi TB 2150 C is a Crawler Excavator manufactured since 2017. It has a weight of 15 tons and a track width of 500 mm. The transport dimensions are 7.81 meters in length, 2.49 meters in width, and 2.96 meters in height. The dredging depth is 5.48 meters, and the maximum horizontal reach is 8.75 meters. The bucket capacity is 0.25 cubic meters. Special equipment includes air conditioning, a blade, and an overload alert system.

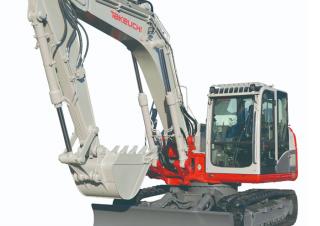

Crawler Excavators Takeuchi TB 2150 C
Crawler Excavators Takeuchi TB 2150 C
Crawler Excavators Takeuchi TB 2150 C
Crawler Excavators Takeuchi TB 2150 C

Technical specs - TB 2150 C Takeuchi

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
15 t
Transport length
7.81 m
Transport width
2.49 m
Transport height
2.96 m
Bucket capacity
0.25 m³
Track width
500 mm
Max. Reach horizontal
8.75 m
Dredging depth
5.48 m
Model series
TB
Engine manuf.
Deutz
Engine type
TCD3.6 L4
Engine power
85 kW
Displacement
3.6 l
Revolutions at max torque
2000 rpm
Max. torque
400/1600 Nm
No. of cylinders
4

More technical details, like: bucket capacity min., bucket capacity max., undercarriage, boom, tear-out force, bucket width, dimension lxwxh, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Track adjustment
No
Blade
Yes
Cabin adjustment
No
Overload alert
Yes
Material Handling Excavator
No
Aircondition
Yes
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Takeuchi TB 2150 C FAQ

When was the Takeuchi TB 2150 C manufactured?

The Takeuchi TB 2150 C was manufactured from 2017 to 2023.

How much does the Takeuchi TB 2150 C weigh?

The Takeuchi TB 2150 C weighs 15 tons.

What are the transport dimensions of the Takeuchi TB 2150 C?

The Takeuchi TB 2150 C has a transport length of 7.81 meters, a transport width of 2.49 meters, and a transport height of 2.96 meters.

What is the track width of the Takeuchi TB 2150 C's undercarriage?

The Takeuchi TB 2150 C has a track width of 500 mm.

What are the excavation performance specifications of the Takeuchi TB 2150 C?

The Takeuchi TB 2150 C has a dredging depth of 5.48 meters and a maximum horizontal reach of 8.75 meters.

What is the bucket capacity of the Takeuchi TB 2150 C?

The Takeuchi TB 2150 C has a bucket capacity of 0.25 cubic meters.
