TB 2150 Takeuchi excavator specs & Dimensions (2024 - 2026)

Weight: 15.095t – Transport length: 7.855m – Transport width: 2.49m – Transport height: 2.96m – Bucket capacity: 0.45m³ – Track wi…

Weight: 15.095t – Transport length: 7.855m – Transport width: 2.49m – Transport height: 2.96m – Bucket capacity: 0.45m³ – Track width: 500mm

Check out detailed specifications, information and technical data for Takeuchi TB 2150 excavator manufactured between 2024 - 2026. Get more in-depth insight with Takeuchi TB 2150 digger specifications. See information, like: Weight: 15.095t – Transport length: 7.855m – Transport width: 2.49m – Transport height: 2.96m – Bucket capacity: 0.45m³ – Track width: 500mm and more.

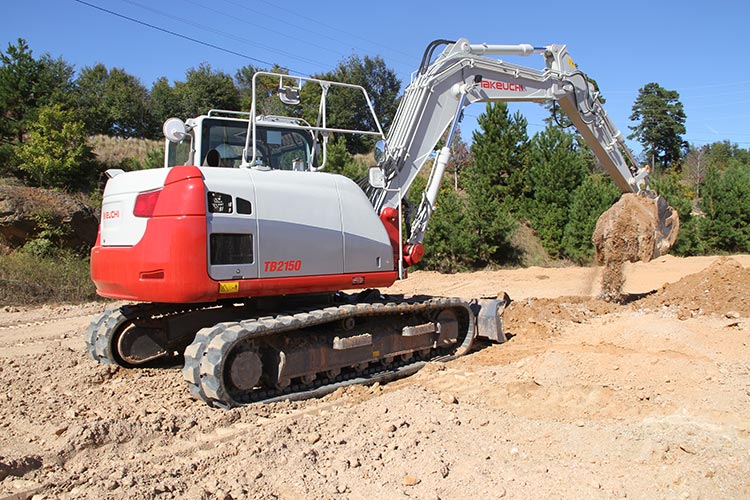

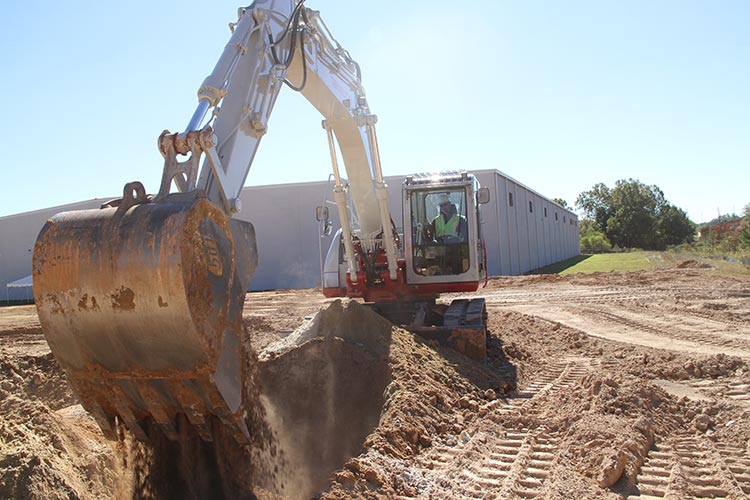

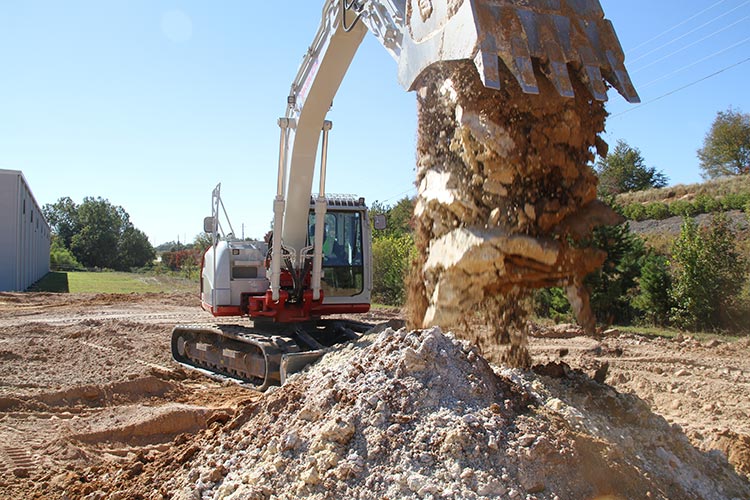

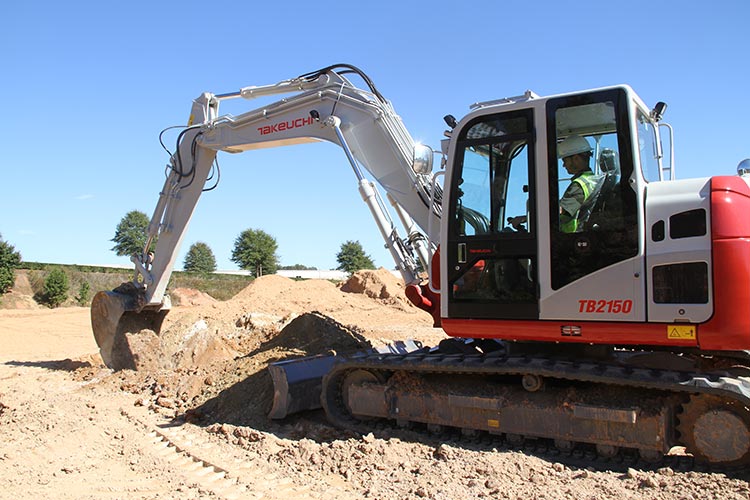

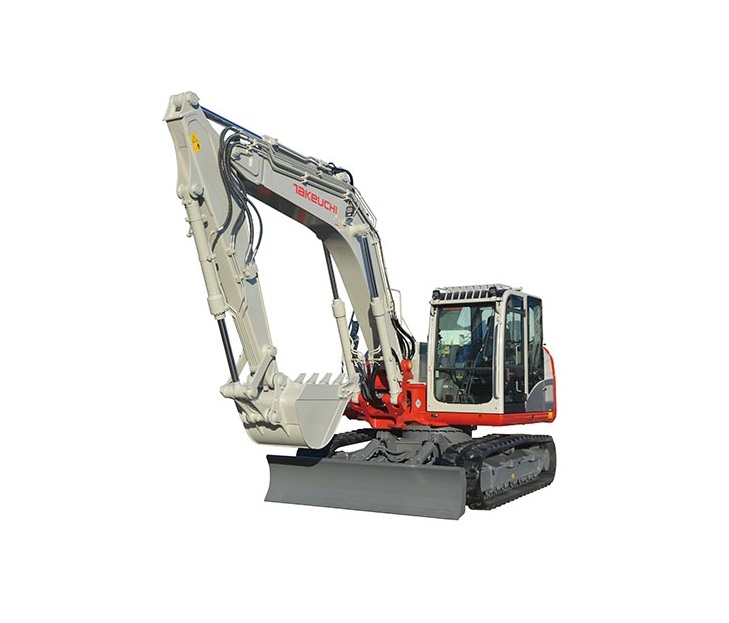

Crawler Excavators Takeuchi TB 2150
Crawler Excavators Takeuchi TB 2150
Crawler Excavators Takeuchi TB 2150
Crawler Excavators Takeuchi TB 2150
Crawler Excavators Takeuchi TB 2150
Crawler Excavators Takeuchi TB 2150
Crawler Excavators Takeuchi TB 2150
Crawler Excavators Takeuchi TB 2150
Crawler Excavators Takeuchi TB 2150
Crawler Excavators Takeuchi TB 2150

Technical specs - TB 2150 Takeuchi

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
15.095 t
Transport length
7.855 m
Transport width
2.49 m
Transport height
2.96 m
Bucket capacity
0.45 m³
Track width
500 mm
Boom
MB
Max. Reach horizontal
8.565 m
Dredging depth
5.445 m
Tear-out force
47.1 kN
Model series
TB
Engine manuf.
Deutz
Engine type
TCD3.6 L4
Engine power
85 kW
Displacement
3.621 l
Revolutions at max torque
2000 rpm
Max. torque
460/1600 Nm
No. of cylinders
4
Emission level
EU V / EPA Tier 4

More technical details, like: bucket capacity min., bucket capacity max., undercarriage, bucket width, dimension lxwxh, cylinder bore x stroke are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Track adjustment
No
Blade
Yes
Cabin adjustment
No
Overload alert
Yes
Material Handling Excavator
No
Aircondition
Yes
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Takeuchi TB 2150 FAQ

When was the Takeuchi TB 2150 manufactured?

The Takeuchi TB 2150 was first produced in 2024.

How much does the Takeuchi TB 2150 weigh?

The Takeuchi TB 2150 weighs 15.095 tons.

What are the transport dimensions of the Takeuchi TB 2150?

The Takeuchi TB 2150 has a transport length of 7.855 meters, a transport width of 2.49 meters, and a transport height of 2.96 meters.

What is the track width of the Takeuchi TB 2150's undercarriage?

The Takeuchi TB 2150 has a track width of 500 mm.

What are the excavation performance specifications of the Takeuchi TB 2150?

The Takeuchi TB 2150 has a dredging depth of 5.445 meters, a maximum horizontal reach of 8.565 meters, and features a monobloc boom.

What is the tear-out force of the Takeuchi TB 2150?

The Takeuchi TB 2150 has a tear-out force of 47.1 kN. No power rating data is available for this model.

What is the bucket capacity of the Takeuchi TB 2150?

The Takeuchi TB 2150 has a bucket capacity of 0.45 cubic meters.

How much is a Takeuchi TB 2150 Crawler excavator (2024u20132025) worth?

The residual value of the Takeuchi TB 2150 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
