TB 1140 Takeuchi excavator specs & Dimensions (2015 - 2017)

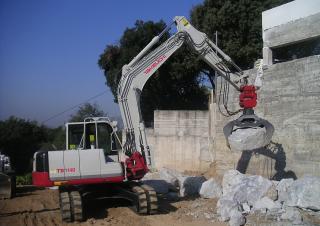

Takeuchi TB 1140 is a Crawler Excavator manufactured from 2015 to 2017. It has a weight of 14.8 tons and a track width of 500 mm. …

Takeuchi TB 1140 is a Crawler Excavator manufactured from 2015 to 2017. It has a weight of 14.8 tons and a track width of 500 mm. The transport dimensions are 7.72 meters in length, 2.49 meters in width, and 2.79 meters in height. The dredging depth is 5.49 meters, and the maximum horizontal reach is 6.215 meters. The bucket capacity is 0.25 cubic meters. Special equipment includes air conditioning, a blade, a diesel particulate filter, and an overload alert system.

Crawler Excavators Takeuchi TB 1140

Technical specs - TB 1140 Takeuchi

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
14.8 t
Transport length
7.72 m
Transport width
2.49 m
Transport height
2.79 m
Bucket capacity
0.25 m³
Track width
500 mm
Boom
MB
Max. Reach horizontal
6.215 m
Dredging depth
5.49 m
Model series
TB
Engine manuf.
Isuzu
Engine type
AM 4 JJ
Engine power
71.8 kW

More technical details, like: bucket capacity min., bucket capacity max., undercarriage, tear-out force, bucket width, dimension lxwxh, displacement, revolutions at max torque, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
Yes
Track adjustment
No
Blade
Yes
Cabin adjustment
No
Overload alert
Yes
Material Handling Excavator
No
Aircondition
Yes
Quick hitch hydr.
No
Quick hitch mech.
No

Takeuchi TB 1140 FAQ

When was the Takeuchi TB 1140 manufactured?

The Takeuchi TB 1140 was manufactured from 2015 to 2017.

How much does the Takeuchi TB 1140 weigh?

The Takeuchi TB 1140 weighs 14.8 tons.

What are the transport dimensions of the Takeuchi TB 1140?

The Takeuchi TB 1140 has a transport length of 7.72 meters, a transport width of 2.49 meters, and a transport height of 2.79 meters.

What is the track width of the Takeuchi TB 1140's undercarriage?

The Takeuchi TB 1140 has a track width of 500 mm.

What are the excavation performance specifications of the Takeuchi TB 1140?

The Takeuchi TB 1140 has a dredging depth of 5.49 meters, a maximum horizontal reach of 6.215 meters, and features a monobloc boom.

What is the bucket capacity of the Takeuchi TB 1140?

The Takeuchi TB 1140 has a bucket capacity of 0.25 cubic meters.
