TB 1140 Takeuchi excavator specs & Dimensions (2004 - 2015)

Model rating
7,33 / 10

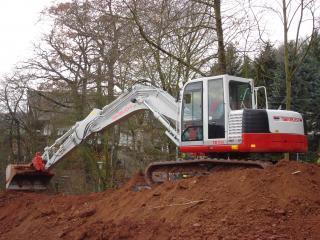

Takeuchi TB 1140 is a Crawler Excavator manufactured from 2004 to 2015, with a weight of 14.2 t. It features a track width of 500 …

Takeuchi TB 1140 is a Crawler Excavator manufactured from 2004 to 2015, with a weight of 14.2 t. It features a track width of 500 mm, a transport length of 7.72 m, a transport width of 2.49 m, and a transport height of 2.79 m. The excavator is equipped with air conditioning, a blade, and an overload alert system.

Crawler Excavators Takeuchi TB 1140

Technical specs - TB 1140 Takeuchi

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
14.2 t
Transport length
7.72 m
Transport width
2.49 m
Transport height
2.79 m
Bucket capacity
0.25 m³
Track width
500 mm
Boom
MB
Max. Reach horizontal
6.215 m
Dredging depth
5.49 m
Model series
TB
Engine manuf.
Isuzu
Engine type
BB 4 BG 1 T
Engine power
62.2 kW

More technical details, like: bucket capacity min., bucket capacity max., undercarriage, tear-out force, bucket width, dimension lxwxh, displacement, revolutions at max torque, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Track adjustment
No
Blade
Yes
Cabin adjustment
No
Overload alert
Yes
Material Handling Excavator
No
Aircondition
Yes
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Takeuchi TB 1140 FAQ

When was the Takeuchi TB 1140 manufactured?

The Takeuchi TB 1140 was manufactured from 2004 to 2015.

How much does the Takeuchi TB 1140 weigh?

The Takeuchi TB 1140 weighs 14.2 tons.

What are the transport dimensions of the Takeuchi TB 1140?

The Takeuchi TB 1140 has a transport length of 7.72 meters, a transport width of 2.49 meters, and a transport height of 2.79 meters.

What is the track width of the Takeuchi TB 1140's undercarriage?

The Takeuchi TB 1140 has a track width of 500 mm.

What are the excavation performance specifications of the Takeuchi TB 1140?

The Takeuchi TB 1140 has a dredging depth of 5.49 meters, a maximum horizontal reach of 6.215 meters, and features a monobloc boom.

What is the bucket capacity of the Takeuchi TB 1140?

The Takeuchi TB 1140 has a bucket capacity of 0.25 cubic meters.

How much is a Takeuchi TB 1140 Crawler excavator (2004u20132015) worth?

The residual value of the Takeuchi TB 1140 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
