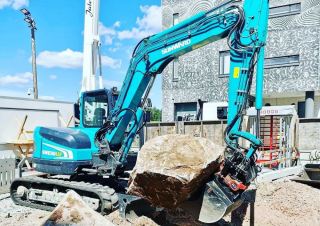

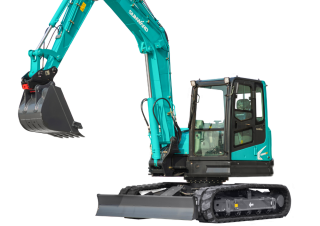

Sunward SWE90UF
- Weight:
- 8.75 t
- Transport length:
- 6.495 m
- Transport width:
- 2.27 m
- Transport height:
- 2.735 m
SWE90UF Sunward excavator specs & Dimensions (2026 - 2026)
.png)
.png)
.png)
.png)
.png)
.png)
.png)
.png)
.png)
.png)
Technical specs - SWE90UF Sunward
Specification
Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.
- Weight
- 8.75 t
- Transport length
- 6.495 m
- Transport width
- 2.27 m
- Transport height
- 2.735 m
- Bucket capacity
- 0.26 m³
- Track width
- 450 mm
- Boom
- MB
- Max. Reach horizontal
- 7.445 m
- Dredging depth
- 4.545 m
- Tear-out force
- 63.5 kN
- Model series
- SWE
- Engine manuf.
- Yanmar
- Engine type
- 4TNV98C-SSU
- Engine power
- 46.2 kW
- Displacement
- 3.3 l
- Revolutions at max torque
- 2200 rpm
- Max. torque
- 241/1430 Nm
- Emission level
- Euro V / US IV
More technical details, like: bucket capacity min., bucket capacity max., undercarriage, bucket width, dimension lxwxh, no. of cylinders, cylinder bore x stroke are available in the full technical specs.
Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket
Special equipment
- Diesel particulate filter
-
No
- Track adjustment
-
No
- Blade
-
Yes
- Cabin adjustment
-
No
- Overload alert
-
No
- Material Handling Excavator
-
No
- Aircondition
-
No
- Quick hitch hydr.
-
No
- Quick hitch mech.
-
No
