SWE90UF Sunward SWE90UF excavator specs & Dimensions (2020 - 2026)

Sunward SWE90UF is a Crawler Excavator manufactured since 2020. It has a weight of 8.4 tons, a transport length of 6.5 meters, a t…

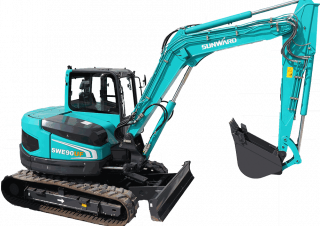

Sunward SWE90UF is a Crawler Excavator manufactured since 2020. It has a weight of 8.4 tons, a transport length of 6.5 meters, a transport width of 2.26 meters, and a transport height of 2.72 meters. The excavator features a tear-out force of 60 kN, a dredging depth of 4.55 meters, and a maximum horizontal reach of 7.45 meters. It is equipped with a blade as special equipment.

Crawler Excavators Sunward SWE90UF

Technical specs - SWE90UF Sunward

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
8.4 t
Transport length
6.5 m
Transport width
2.26 m
Transport height
2.72 m
Max. Reach horizontal
7.45 m
Dredging depth
4.55 m
Tear-out force
60 kN
Model series
SWE
Engine manuf.
Yanmar
Engine type
N/A
Engine power
46.2 kW

More technical details, like: bucket capacity, bucket capacity min., bucket capacity max., undercarriage, track width, boom, bucket width, dimension lxwxh, displacement, revolutions at max torque, max. torque, no. of cylinders...

More technical details, like: bucket capacity, bucket capacity min., bucket capacity max., undercarriage, track width, boom, bucket width, dimension lxwxh, displacement, revolutions at max torque, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Track adjustment
No
Blade
Yes
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
No
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Sunward SWE90UF FAQ

When was the Sunward SWE90UF manufactured?

The Sunward SWE90UF was first produced in 2020.

How much does the Sunward SWE90UF weigh?

The Sunward SWE90UF weighs 8.4 tons.

What are the transport dimensions of the Sunward SWE90UF crawler excavator?

The Sunward SWE90UF has a transport length of 6.5 meters, a transport width of 2.26 meters, and a transport height of 2.72 meters.

What are the excavation performance specifications of the Sunward SWE90UF?

The Sunward SWE90UF has a dredging depth of 4.55 meters and a maximum horizontal reach of 7.45 meters.

What power rating is specified for the Sunward SWE90UF?

The source data does not provide a power rating for the Sunward SWE90UF.

How much is a Sunward SWE90UF Crawler excavator (2020u20132025) worth?

The residual value of the Sunward SWE90UF depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
