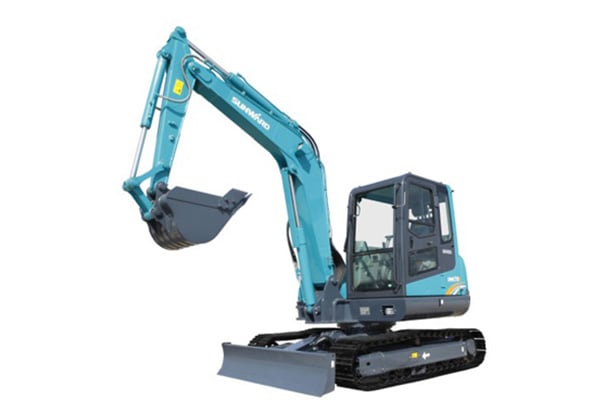

SWE70E Sunward excavator specs & Dimensions (2020 - 2025)

Sunward SWE70E is a Crawler Excavator manufactured since 2020. It has a weight of 6.56 tons and a track width of 400 mm. The trans…

Sunward SWE70E is a Crawler Excavator manufactured since 2020. It has a weight of 6.56 tons and a track width of 400 mm. The transport dimensions are 5.91 meters in length, 2.08 meters in width, and 2.63 meters in height. The excavator features a tear-out force of 50 kN, a dredging depth of 4.02 meters, and a maximum horizontal reach of 6.09 meters. The bucket capacity ranges from 0.26 m³ to 0.38 m³. It is equipped with a blade as special equipment.

Crawler Excavators Sunward SWE70E

Technical specs - SWE70E Sunward

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
6.56 t
Transport length
5.91 m
Transport width
2.08 m
Transport height
2.63 m
Bucket capacity
0.38 m³
Bucket capacity min.
0.26 m³
Bucket capacity max.
0.38 m³
Track width
400 mm
Max. Reach horizontal
6.09 m
Dredging depth
4.02 m
Tear-out force
50 kN
Model series
SWE
Engine manuf.
Yanmar
Engine type
N/A
Engine power
44 kW

More technical details, like: undercarriage, boom, bucket width, dimension lxwxh, displacement, revolutions at max torque, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Track adjustment
No
Blade
Yes
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
No
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Sunward SWE70E FAQ

When was the Sunward SWE70E manufactured?

The Sunward SWE70E was first produced in 2020.

How much does the Sunward SWE70E weigh?

The Sunward SWE70E weighs 6.56 tons.

What are the transport dimensions of the Sunward SWE70E crawler excavator?

The Sunward SWE70E has a transport length of 5.91 meters, a transport width of 2.08 meters, and a transport height of 2.63 meters.

What is the track width of the Sunward SWE70E's undercarriage?

The Sunward SWE70E has a track width of 400 mm.

What are the excavation performance specifications of the Sunward SWE70E?

The Sunward SWE70E has a dredging depth of 4.02 meters and a maximum horizontal reach of 6.09 meters.

What is the tear-out force of the Sunward SWE70E?

The Sunward SWE70E has a tear-out force of 50 kN.

What are the bucket capacity specifications of the Sunward SWE70E excavator?

The Sunward SWE70E excavator has a bucket capacity of 0.38 cubic meters, with a maximum capacity of 0.38 cubic meters and a minimum capacity of 0.26 cubic meters.
