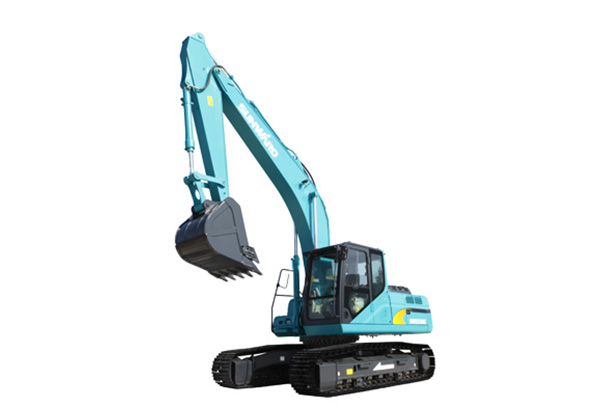

SWE155E-3 Sunward excavator specs & Dimensions (2020 - 2025)

Sunward SWE155E-3 is a Crawler Excavator manufactured since 2020. It has a weight of 14.8 tons and a track width of 600 mm. The tr…

Sunward SWE155E-3 is a Crawler Excavator manufactured since 2020. It has a weight of 14.8 tons and a track width of 600 mm. The transport dimensions are 7.83 meters in length, 2.6 meters in width, and 2.83 meters in height. The excavator features a tear-out force of 100 kN, a dredging depth of 5.53 meters, and a maximum horizontal reach of 8.23 meters. The bucket width is 0.94 meters with a capacity of 0.61 cubic meters.

Crawler Excavators Sunward SWE155E-3

Technical specs - SWE155E-3 Sunward

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
14.8 t
Transport length
7.83 m
Transport width
2.6 m
Transport height
2.83 m
Bucket capacity
0.61 m³
Track width
600 mm
Max. Reach horizontal
8.23 m
Dredging depth
5.53 m
Tear-out force
100 kN
Bucket width
0.94 m
Model series
SWE
Engine manuf.
Cummins
Engine type
QSF3.8
Engine power
93 kW
Displacement
3.8 l
Max. torque
500/1500 Nm
Emission level
III

More technical details, like: bucket capacity min., bucket capacity max., undercarriage, boom, dimension lxwxh, revolutions at max torque, no. of cylinders, cylinder bore x stroke are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Track adjustment
No
Blade
No
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
No
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Sunward SWE155E-3 FAQ

When was the Sunward SWE155E-3 manufactured?

The Sunward SWE155E-3 was first produced in 2020.

How much does the Sunward SWE155E-3 weigh?

The Sunward SWE155E-3 weighs 14.8 tons.

What are the transport dimensions of the Sunward SWE155E-3 crawler excavator?

The Sunward SWE155E-3 has a transport length of 7.83 meters, a transport width of 2.6 meters, and a transport height of 2.83 meters.

What is the track width of the Sunward SWE155E-3's undercarriage?

The Sunward SWE155E-3 has a track width of 600 mm.

What are the excavation performance specifications of the Sunward SWE155E-3?

The Sunward SWE155E-3 has a dredging depth of 5.53 meters and a maximum horizontal reach of 8.23 meters.

What is the tear-out force of the Sunward SWE155E-3?

The Sunward SWE155E-3 has a tear-out force of 100 kN.

What are the specifications of the primary work tool on the Sunward SWE155E-3?

The primary work tool of the Sunward SWE155E-3 has a bucket capacity of 0.61 cubic meters and a bucket width of 0.94 meters.

How much is a Sunward SWE155E-3 Crawler excavator (2020u20132025) worth?

The residual value of the Sunward SWE155E-3 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
