SWE100E Sunward excavator specs & Dimensions (2020 - 2025)

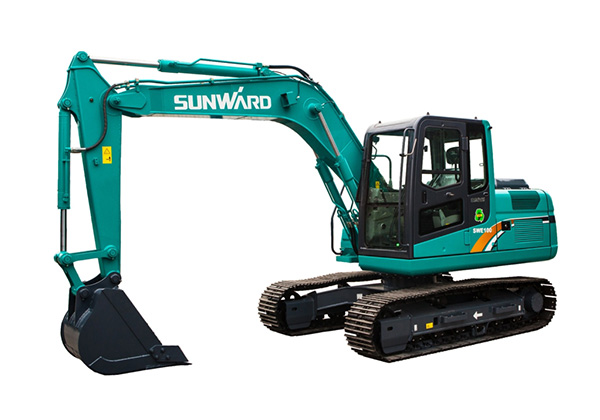

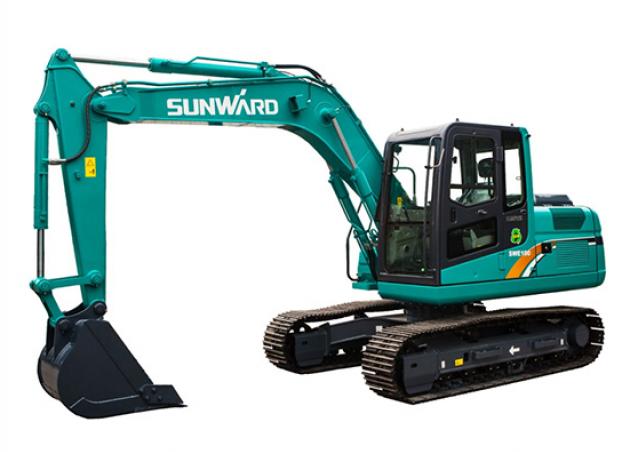

Sunward SWE100E is a Crawler Excavator manufactured since 2020, with a weight of 9.1 t. It features a track width of 450 mm, a tra…

Sunward SWE100E is a Crawler Excavator manufactured since 2020, with a weight of 9.1 t. It features a track width of 450 mm, a transport length of 6.47 m, a transport width of 2.25 m, and a transport height of 2.66 m. The excavator has a tear-out force of 64.5 kN, a dredging depth of 4.38 m, and a maximum horizontal reach of 6.8 m. The bucket capacity ranges from 0.4 m³ to 0.52 m³.

Crawler Excavators Sunward SWE100E

Technical specs - SWE100E Sunward

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
9.1 t
Transport length
6.47 m
Transport width
2.25 m
Transport height
2.66 m
Bucket capacity
0.52 m³
Bucket capacity min.
0.4 m³
Bucket capacity max.
0.52 m³
Track width
450 mm
Max. Reach horizontal
6.8 m
Dredging depth
4.38 m
Tear-out force
64.5 kN
Model series
SWE
Engine manuf.
Kubota
Engine type
N/A
Engine power
60.7 kW

More technical details, like: undercarriage, boom, bucket width, dimension lxwxh, displacement, revolutions at max torque, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Track adjustment
No
Blade
No
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
No
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Sunward SWE100E FAQ

When was the Sunward SWE100E manufactured?

The Sunward SWE100E was first produced in 2020.

How much does the Sunward SWE100E weigh?

The Sunward SWE100E weighs 9.1 tons.

What are the transport dimensions of the Sunward SWE100E crawler excavator?

The Sunward SWE100E has a transport length of 6.47 meters, a transport width of 2.25 meters, and a transport height of 2.66 meters.

What is the track width of the Sunward SWE100E crawler excavator?

The Sunward SWE100E crawler excavator has a track width of 450 mm.

What is the excavation performance of the Sunward SWE100E?

The Sunward SWE100E has a dredging depth of 4.38 meters and a maximum horizontal reach of 6.8 meters.

What is the tear-out force of the Sunward SWE100E, given that no power rating data is available?

The Sunward SWE100E has a tear-out force of 64.5 kN. No power rating data is provided in the source.

What are the bucket capacity specifications of the Sunward SWE100E excavator?

The Sunward SWE100E excavator has a bucket capacity of 0.52 cubic meters, with a maximum capacity of 0.52 cubic meters and a minimum capacity of 0.4 cubic meters.

How much is a Sunward SWE100E Crawler excavator (2020u20132025) worth?

The residual value of the Sunward SWE100E depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
