SH460HD-5 Sumitomo excavator specs & Dimensions (2017 - 2026)

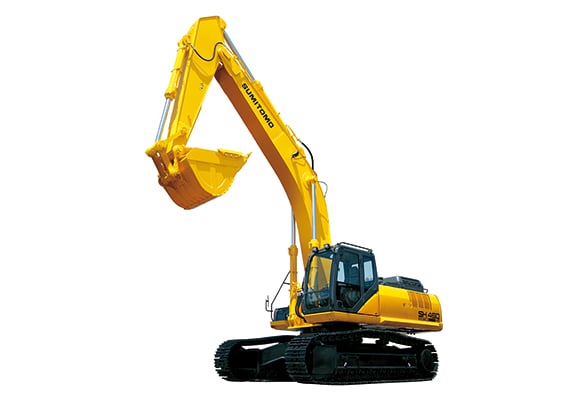

Sumitomo SH460HD-5 is a Crawler Excavator manufactured since 2017. It has a weight of 45.9 tons and a track width of 600 mm. The t…

Sumitomo SH460HD-5 is a Crawler Excavator manufactured since 2017. It has a weight of 45.9 tons and a track width of 600 mm. The transport dimensions are 12.06 meters in length, 3.35 meters in width, and 3.64 meters in height. The excavator features a tear-out force of 247 kN, a dredging depth of 6.87 meters, and a maximum horizontal reach of 11.23 meters. The bucket width is 1.508 meters, with a bucket capacity of 1.8 cubic meters.

Crawler Excavators Sumitomo SH460HD-5

Technical specs - SH460HD-5 Sumitomo

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
45.9 t
Transport length
12.06 m
Transport width
3.35 m
Transport height
3.64 m
Bucket capacity
1.8 m³
Track width
600 mm
Max. Reach horizontal
11.23 m
Dredging depth
6.87 m
Tear-out force
247 kN
Bucket width
1.508 m
Model series
SH
Engine manuf.
Isuzu
Engine type
AH-BUZ1XYSS
Engine power
270 kW
Displacement
9.84 l
Revolutions at max torque
1500 rpm
Max. torque
1435 Nm
No. of cylinders
6
Cylinder bore x stroke
120x145 mm

More technical details, like: bucket capacity min., bucket capacity max., undercarriage, boom, dimension lxwxh, emission level are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Track adjustment
No
Blade
No
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
No
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Sumitomo SH460HD-5 FAQ

When was the Sumitomo SH460HD-5 manufactured?

The Sumitomo SH460HD-5 was first produced in 2017.

How much does the Sumitomo SH460HD-5 weigh?

The Sumitomo SH460HD-5 weighs 45.9 tons.

What are the transport dimensions of the Sumitomo SH460HD-5 crawler excavator?

The Sumitomo SH460HD-5 has a transport length of 12.06 meters, a transport width of 3.35 meters, and a transport height of 3.64 meters.

What is the track width of the Sumitomo SH460HD-5's undercarriage?

The track width of the Sumitomo SH460HD-5's undercarriage is 600 mm.

What are the dredging depth and maximum horizontal reach of the Sumitomo SH460HD-5?

The Sumitomo SH460HD-5 has a dredging depth of 6.87 meters and a maximum horizontal reach of 11.23 meters.

What power rating information is available for the Sumitomo SH460HD-5?

There is no power rating data available for the Sumitomo SH460HD-5 in the provided source data.

What are the specifications of the primary work tool on the Sumitomo SH460HD-5?

The primary work tool of the Sumitomo SH460HD-5 has a bucket capacity of 1.8 cubic meters and a bucket width of 1.508 meters.

How much is a Sumitomo SH460HD-5 Crawler excavator (2017u20132025) worth?

The residual value of the Sumitomo SH460HD-5 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.

Sumitomo SH460HD-5 overview

Engine

Accessories (option)

Cab-top light Rain reflector Front guard (FOPS level 1) Head guard (FOPS level 2) 12V power (DC-DC converter) Polycarbonate with sunshade top window Air suspension (X&Z seat) Full track guard Fuel pump Pre-cleaner Auto louver clutch valve (for arm/boom cylinder) Lower window guard.


Hydraulic and electronic system

Engine and Hydraulics

The integration of the new engine system "SPACE 5" and new hydraulic system "SIH:S" has created a 3% fuel efficiency improvement in comparison with our conventional model.


Mode Selection by Throttle

Mode selection by pressing the button in our previous model sometimes causes inconveniences for the operator. The throttle control system has been upgraded, and the new system "A" mode, which stands for "Adjustment Mode," now covers the 3 previous modes of "Auto, Standard, and Light." In addition, there is "H" (Heavy) mode and "SP" (Speed Priority) mode, and the hydrostatic pump oil flow will be regulated automatically in each of the 3 modes respectively. The SP mode is added to the operation mode. Furthermore, the A (Adjustment) mode is added to the SP and H mode, respectively. In comparison with the H mode of Dash 3, the H mode of Dash 5 has reduced the fuel consumption by 5% as compared with Dash 3.


Upper Structure

Upward view

The shape of the opening has been improved and the width of the upper pillar has been narrowed to ensure a comfortable upward view.


Cab

Operator Comfort

SUMITOMO's Redesigned Cabin and Seat for Optimum Operator Comfort. The seat reclining system allows the operator to lay the seat flat and to rest on site without removing the headrest.


Operating Positions of Sliding Seat and Tilting Console

In addition to the tilting console that is adjustable in four steps vertically, the increased sliding distance ensures optimum working conditions.


Fluid Filled Cab Mounts

Four fluid cab mounts reduce vibration and impact transmitted to the cabin, and improve the operator's sitting quality and reduce operator fatigue.


Automatic Air Conditioner with Round Outlets for Increased Comfort

The air outlets of the air conditioner are provided with round grills with wide adjusting angles. The efficiency of the air conditioner has been increased by pressurizing the cab to make it airtight, providing a comfortable space.


Safety

The wide view increases the safety of work. In addition to the wide front view, the down-right view is also made larger to enhance the safety of work.


Cab/Interior Equipment

Tilting console Open air introduction pressurized Automatic air conditioner Defroster Hot & cool box Seat suspension operator's seat Seat belt Film (instrument operation function) Clock AM/FM radio (with muting function) Speaker 12V power outlet Floor mat Ashtray Drink holder Magazine rack Room light Front window wiper Front window washer Room light (Auto-OFF function) Cooler box.


Equipment

Simple to Read LCD Monitor and Switch Panel

In addition to the monitor that is easy to read during daytime as well as nighttime by changing the backlight to white, a simple and convenient universally designed switch panel is provided.


Convenient One-touch Muting of AM/FM Radio

An AM/FM radio is provided as standard equipment. The mute switch on the left lever permits one-touch muting of the radio.


Standard Equipment

Hydraulic system SH5 hydraulic system (with one-touch) Automatic boom holding Automatic power boost Automatic power mode selector Automatic power max function Automatic swing parking system Self-lubrication return filter Self-lubrication return filter.


Safety Equipment

Rearview mirror (left/right) Emergency escape tool Windshield wiper Windshield washer Travel alarm (with turn on and off switch) Anti-theft alarm system Engine room firewall Fan guard Engine emergency stop switch.
