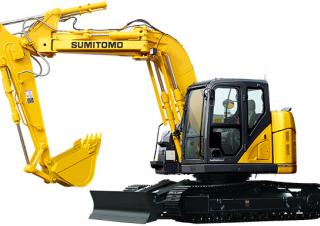

SH145XU-6 Sumitomo excavator specs & Dimensions (2020 - 2026)

Sumitomo SH145XU-6 is a crawler excavator manufactured since 2020. It has a weight of 15.3 tons and a track width of 500 mm. The t…

Sumitomo SH145XU-6 is a crawler excavator manufactured since 2020. It has a weight of 15.3 tons and a track width of 500 mm. The transport dimensions are 7.54 meters in length, 2.49 meters in width, and 2.77 meters in height. The excavator features a tear-out force of 116 kN, a dredging depth of 4.91 meters, and a maximum horizontal reach of 7.59 meters. The bucket width is 0.907 meters with a capacity of 0.45 cubic meters.

Crawler Excavators Sumitomo SH145XU-6

Technical specs - SH145XU-6 Sumitomo

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
15.3 t
Transport length
7.54 m
Transport width
2.49 m
Transport height
2.77 m
Bucket capacity
0.45 m³
Track width
500 mm
Boom
MB
Max. Reach horizontal
7.59 m
Dredging depth
4.91 m
Tear-out force
116 kN
Bucket width
0.907 m
Model series
SH
Engine manuf.
Isuzu
Engine type
GJ-4JJ1X
Engine power
70.9 kW
Displacement
2.99 l
Revolutions at max torque
1600 rpm
Max. torque
349 Nm
No. of cylinders
4
Cylinder bore x stroke
95.4x104.9 mm
Emission level
Tier III

More technical details, like: bucket capacity min., bucket capacity max., undercarriage, dimension lxwxh are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Track adjustment
No
Blade
No
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
No
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Sumitomo SH145XU-6 FAQ

When was the Sumitomo SH145XU-6 manufactured?

The Sumitomo SH145XU-6 was first produced in 2020.

How much does the Sumitomo SH145XU-6 weigh?

The Sumitomo SH145XU-6 weighs 15.3 tons.

What are the transport dimensions of the Sumitomo SH145XU-6 crawler excavator?

The Sumitomo SH145XU-6 has a transport length of 7.54 meters, a transport width of 2.49 meters, and a transport height of 2.77 meters.

What is the track width of the Sumitomo SH145XU-6's undercarriage?

The Sumitomo SH145XU-6 has a track width of 500 mm.

What are the excavation performance specifications of the Sumitomo SH145XU-6 crawler excavator?

The Sumitomo SH145XU-6 has a dredging depth of 4.91 meters, a maximum horizontal reach of 7.59 meters, and is equipped with a monobloc boom.

What is the tear-out force of the Sumitomo SH145XU-6, and is there any power rating information available?

The Sumitomo SH145XU-6 has a tear-out force of 116 kN. No power rating information is provided in the available data.

What are the specifications of the primary work tool on the Sumitomo SH145XU-6?

The primary work tool of the Sumitomo SH145XU-6 has a bucket capacity of 0.45 cubic meters and a bucket width of 0.907 meters.

How much is a Sumitomo SH145XU-6 Crawler excavator (2020u20132025) worth?

The residual value of the Sumitomo SH145XU-6 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
